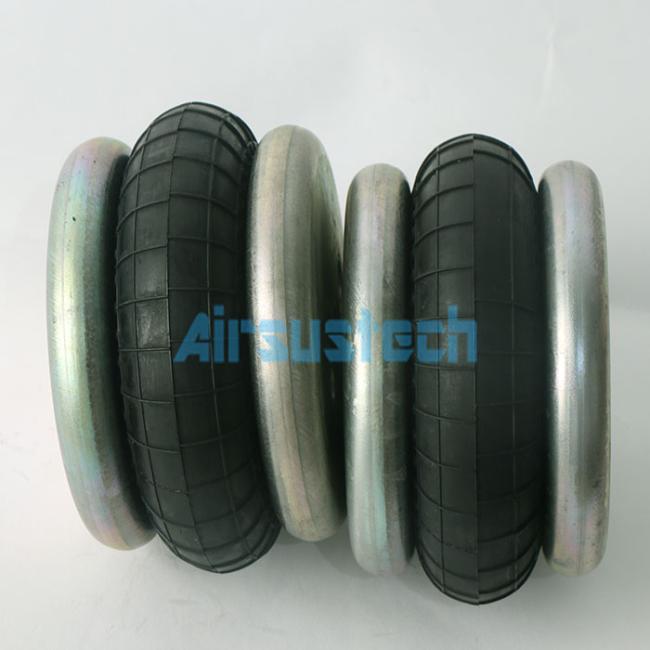

1B130070 Firestone W01-M58-6140 Single Convoluted Air Springs With Steel Cover Plate
1B130070 Firestone W01-M58-6140 Single Convoluted Air Springs with Steel Cover Plate
Product Description:
Industrial equipment for damping of the air spring technology application, effectively improving the work efficiency of equipment and the safe use of equipment life. Air spring is not like an ordinary cylinder type device having internal control rod, piston, or sliding sealing device, thus greatly reducing the use of a pneumatic or hydraulic cost, for customers to win more economic benefits. The diameter of the top and bottom plate cover of the 1B130070 air spring is 114mm, the height is 70mm, and the maximum diameter of the air spring is 152 mm when inflated with 7 MPa.
Technical Data of W01M586140 Industrial Air Spring:
Rubber Bellow
| Rubber Bellow Max Diameter | 152 MM |
| Maximum Height | 89 MM |
| Minimum Height | 48 MM |
| The Stroke | 41 MM |
Blind Nut/Screw
| Top Cover Plate Screw(Nut) Tooth | M8×15 MM |
| Bottom Cover Plate Screw(Nut) Tooth | M8×15 MM |
| Screw Center Distance of Top Cover Plate | 44 MM |
| Screw Center Distance of Bottom Cover Plate | 44 MM |
Cover Plate
| The Top Cover Plate Diameter | 114 MM |
| The Bottom Cover Plate Diameter | 114 MM |
Features:
- Our products are meetiing the International Standard .
- We provide100%testedfull checking in every producess
- With one year guarantee except man-made trouble.
- Packing: carton/cartons.
- Marking: We can mark your logo as request. No specified, we will mark our logo .
- Shipping: We can accept your appionted forwarder.
- Delivery time :7-10 working days.
If you have any other requests or would like to know more, please contact us. We will provide effective services according to your needs!
The Applications of 1B130070 Air Springs:
- Blower and Motor
- Control Panel
- Conveyor End Stop
- Mountain/Trail Bike
- Delicate Electronic Equipment
- and Vibrating Screen
Support and Services:
- Expert troubleshooting assistance to diagnose and resolve technical issues
- Guidance on proper installation and maintenance procedures
- Product documentation, including user manuals and technical specifications
- Product training and education for customers and service technicians
- Warranty and repair services, including replacement parts and exchange programs
- Customer support for urgent technical issues or service needs
FAQ
Q: What is the brand name of the Suspension Air Springs?
A: The brand name of the Suspension Air Springs is AIRSUSTECH.
Q: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 3H6976.
Q: What certification do the Suspension Air Springs have?
A: The Suspension Air Springs have ISO/TS16949:2009 certification.
Q: What is the supply ability for the Suspension Air Springs?
A: The supply ability for the Suspension Air Springs is 1000PCS/Week.
