FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
Product Description:
The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convolute Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
| Gas Hole | G 1/4 |
| Top Plate Hole/Stud Qty | 2×M10×1.5 |
| Bottom Plate Hole/Stud Qty | 2×M10×1.5 |
| Top Cover Plate Diameter | 160 mm |
| Bottom Cover Plate Diamtere | 160 mm |
| MAX. Diameter | 220 mm |
| Distance Gas Hole Between Nut | 44.5 mm |
| Distance Between Nuts | 89 mm |
| Natural Height | 110 mm |
| Gas Hole | G 3/4 |
| Top Plate Hole/Stud Qty | 2×M8×1.5 |
| Bottom Plate Hole/Stud Qty | 2×M8×1.5 |
| Top Cover Plate Diameter | 160 mm |
| Bottom Cover Plate Diamtere | 160 mm |
| MAX. Diameter | 220 mm |
| Distance Gas Hole Between Nut | 38 mm |
| Distance Between Nuts | 89 mm |
| Natural Height | 110 mm |
Cross References:
|
Contitech |
FS 200-10, FS 200 10, FS200-10, FS20010 |
|
Firestone |
W01-M58-6374, W01 M58 6374, W01M586374 WO1-M58-6374, WO1 M58 6374, WO1M586374 |
|
Phoenix |
SP 1B 12, SP1B 12, SP 1B12, SP1B12 |
|
Bosch |
822419004 |
|
Dunlop(FR) |
9’’1/4x1 S09101 |
|
Festo |
EB-250-85, EB 250 85, EB25085 |
|
Norgren |
PM/31091(81/4x1) |
- Material Handling Industry
- Lumber Industry
- Aluminum Can Recycling
- Container Manufacturers
- Paper Industry
- Press Manufacturing
- Vibrating Equipment & Conveyors
- Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
- Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
- If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
A1: There is a 12 months warranty for our export products has run out from the date of the shipment.
A2: Sure. We can do as per the customer's requirements.
A3: YES. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
A4: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

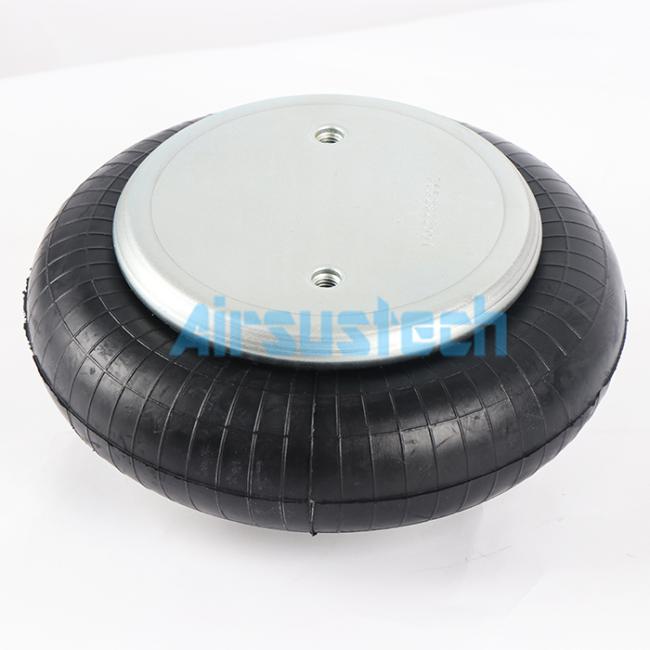

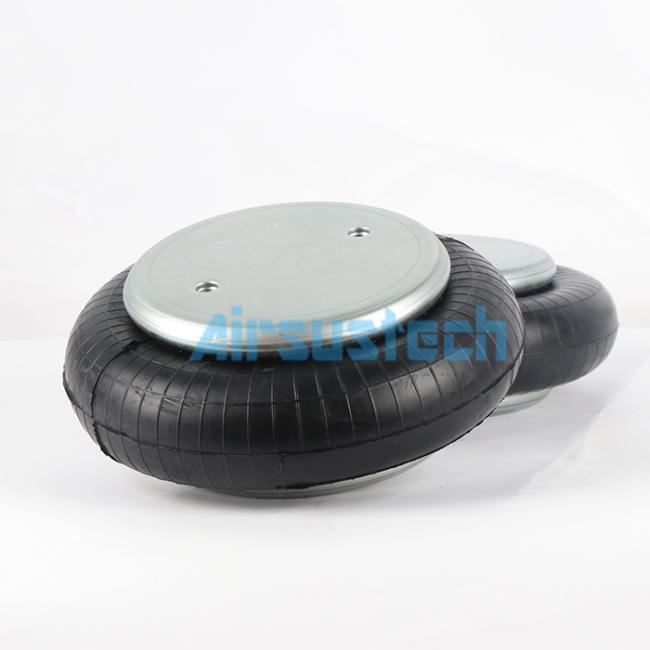

The Real Pictures of 1B200-10 Air Springs
