Norgren PM/31061 Contitech FS 76-7 DI Suspension Air Springs Max Bellows OD. 175MM
Norgren PM/31061 Contitech FS 76-7 DI Suspension Air Springs Max Bellows OD. 175MM
Product Description:
Whether you're hauling heavy loads or simply looking for a more comfortable ride, the AIRSUSTECH Industrial Air Springs are the perfect choice. With their durable construction, wide operating temperature range, and impressive stroke length, these air vibration bags are sure to provide the performance and reliability you need.
Specifications and Technical Parameters:
Specifications:
Air Hole
Gas Fitting: G 1/2
Operation: Gas-filled
Screw/Blind Nuts
Screw Type: 4 pcs×M8
Distance Air Hole Betweeen Screw Hole: 63.5 mm
Screw Center Distance: 127 mm
Screw Width: 9 mm
Cover Plate
Top Cover Plate Diameter: 152.5 mm
Bottom Cover Plate Diameter: 152.5 mm
Height
Minimum Height: 55 mm
Maximum Height: 110 mm
Recommed Height: 90 mm
Rubber Bellows
Installation Diameter: 190 mm
Bellow MAX. Diameter: 175 mm
Pressure Ability: 3-8 bar
Technical Parameters:
Vibration isolation-dynamic characteristic values
| Pressure [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Force (Load) [kN] | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.87 |
| Spring Rate [N/mm] | 158.5 | 200.5 | 245.5 | 286 | 331.5 | 374.5 | |
| Natural frequency [Hz] | 3.5 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
Cross References:
| Norgren | PM/31061 |
| Contitech |
FS 76-7 DI, FS 76 7 DI, FS767DI, FS76-7 DI FS767 DI, FS 76 7FDI, FS76-7DI,FS 7-67DI |
| Firestone |
W01-R58-4078, W01R584078, W01 R58 4078 WO1-R58-4078, WO1R584078, WO1 R58 4078 |
| Dunlop Pneuride | 6" x 1 |
| Dunlop Springride | SP2913, SP 2913 |
| Parker | 9109004A |
Applications:
AIRSUSTECH industrial products are used in an array of industries ranging from air springs for agriculture equipment to anti-vibration solutions for commercial trailers. Some common industries AIRSUSTECH serves are:
- Commercial Truck & Trailer
- Rail Applications
- Agriculture
- Construction and Mining
- Actuators and Isolators

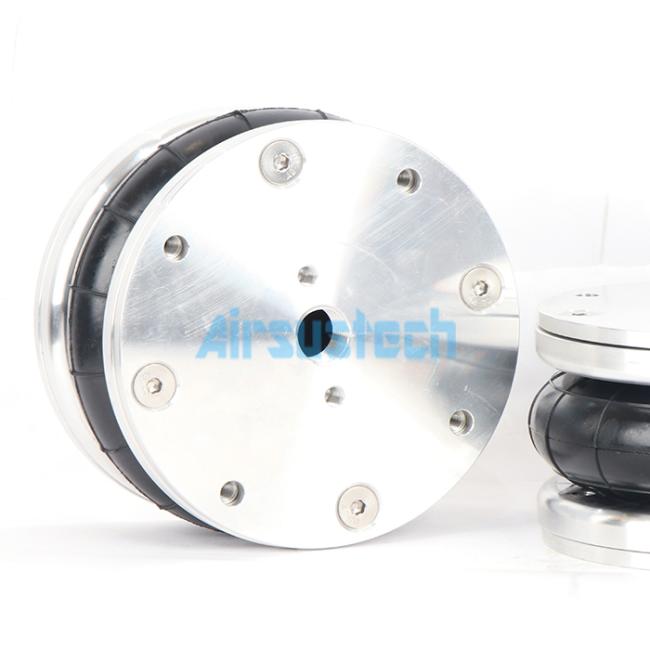

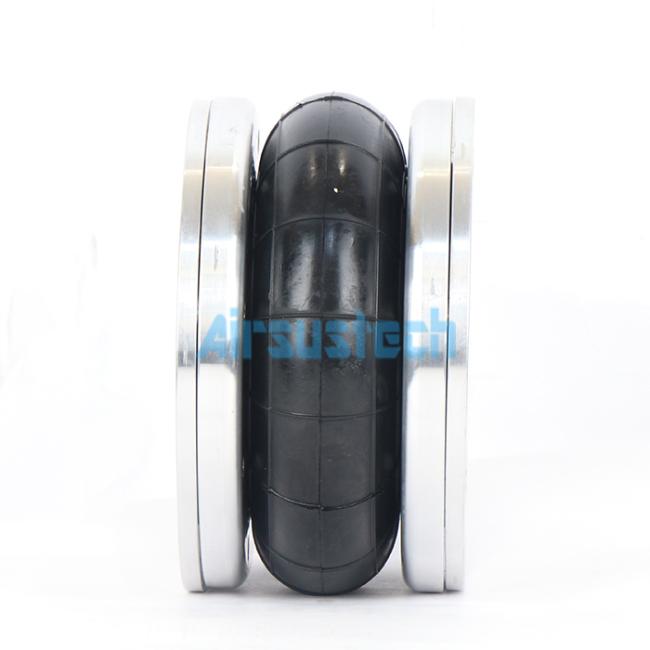

The Real Pictures of 1B6×1P:
