Firestone W01-358-1023 Air Bags Suspension Maximum Height 584MM Air Shock Absorber
Firestone W01-358-1023 Air Bags Suspension Maximum Height 584MM Air Shock Absorber
Product Description:
Whether you're hauling heavy loads or simply looking for a more comfortable ride, the AIRSUSTECH Industrial Air Springs are the perfect choice. With their durable construction, wide operating temperature range, and impressive stroke length, these air vibration bags are sure to provide the performance and reliability you need.
Specifications and Technical Parameters:
3H1023 Specifications:
| Bellow MAX. Diameter at 7 Bar | 950 mm |
| Minimum Height | 140 mm |
| Maximum Height | 584 mm |
| Pressure Ability | 0-8 bar |
| Structure | Triple Convolutions |
| OEM No. | Style 348-3 |
3H1023 Technical Parameters:
|
Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only) |
|||
|
Gauge Pressure (BAR) |
Load (kN) |
Spring Rate (kN/m) |
Natural Frequency (Hz) |
| 3 | 150.16 | 853 | 1.19 |
| 4 | 204.95 | 1110 | 1.16 |
| 5 | 258.67 | 1358 | 1.14 |
| 6 | 317.66 | 1614 | 1.12 |
| 7 | 371.47 | 1839 | 1.11 |
Cross References:
Firestone W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023, WO13581023
Firestone W01-M58-6971, W01 M58 6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971
Firestone W01-358-9603, W01 358 9603, W01358 9603, WO1-358-9603, WO1 358 9603, WO13589603
How Air Springs Work on Bark Peeling Machine:
Air springs are commonly used in bark peeling machines to provide shock absorption and isolation from vibrations. An air spring consists of a cylindrical elastomeric bellow sealed between two end plates to form a chamber. When compressed air is added to the chamber, the bellow expands and lifts the upper plate, lifting the load on top of the air spring. The air spring provides a cushion-like effect that isolates the load from shocks and vibrations. The amount of load carried by the air spring can be adjusted by varying the air pressure in the chamber. Guangzhou Guomat Air Spring, a Guangzhou-based company, supplies and installs air spring suspension systems for a variety of industrial applications.
FAQ:
Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.
Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.
Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

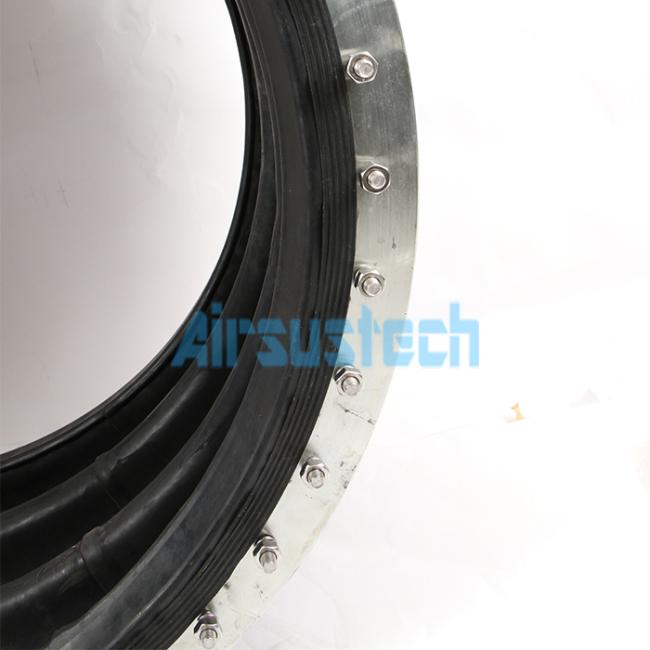

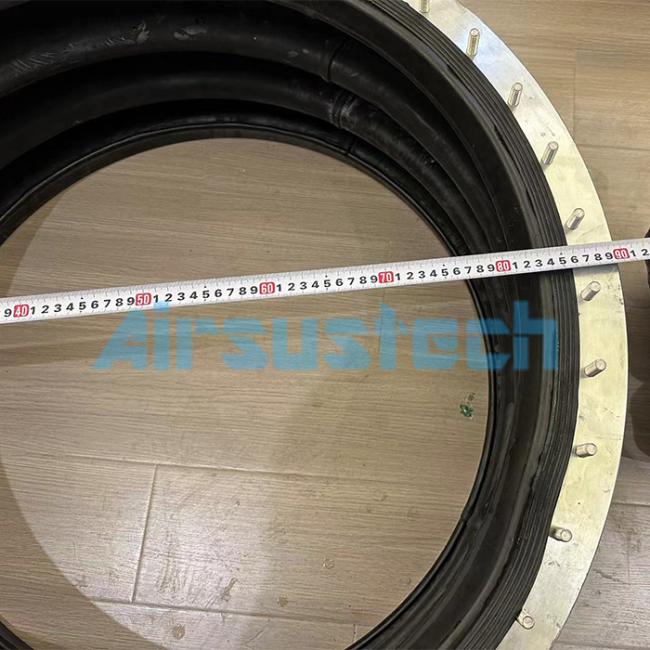

The Real and Comparison Photos of 3H1023:
