Firestone W01-358-1023 Suspension Air Springs Rubber Bellows Only Max. Width 950MM
Firestone W01-358-1023 Suspension Air Springs Rubber Bellows Only Max. Width 950MM
Product Description:
The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Specifications and Technical Parameters:
3H1023 Specifications:
Bellow MAX. Diameter at 7 Bar: 950 mm
Minimum Height: 140 mm
Maximum Height: 584 mm
Pressure Ability: 0-8 bar
Structure: Triple Convolutions
OEM No.: Style 348-3
3H1023 Technical Parameters:
|
Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only) |
|||
|
Gauge Pressure (BAR) |
Load (kN) |
Spring Rate (kN/m) |
Natural Frequency (Hz) |
| 3 | 150.16 | 853 | 1.19 |
| 4 | 204.95 | 1110 | 1.16 |
| 5 | 258.67 | 1358 | 1.14 |
| 6 | 317.66 | 1614 | 1.12 |
| 7 | 371.47 | 1839 | 1.11 |
Cross References:
There are several other models of the product with model 348-3:
| Description | Assembly Order No. | |
| Style 348-3
Hight Strength Construction |
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers |
W01-M58-6971, W01M586971 WO1-M58-6971, WO1 M58 6971 WO1M586971, W01 M58 6971 |
| Rubber Bellows only |
W01-358-1023, W01 358 1023 W013581023, WO1-358-1023 WO1 358 1023, WO13581023 |
|
| Style 348-3
High Strenght Bellows |
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers |
W01-358-9603, W01 358 9603 W01358 9603, WO1-358-9603 WO1 358 9603, WO13589603 |
| Rubber bellows only |
W01-358-1023, W01 358 1023 W013581023, WO1-358-1023 WO1 358 1023, WO13581023 |
Features of 3H1023 Air Springs:
- AIRSUSTECH manufactures efficient, strong, and premium 3H1023 air springs for all your vehicle steering needs. Not only is it efficient in performance, it is also extremely durable, providing long-lasting quality without compromising its effectiveness.
- These AIRSUSTECH air springs are made of high-quality materials, including metal, which ensures maximum stability, durability, and sustainability for demanding use, and is also equipped with the latest features for consistent, optimal performance. These products are certified and tested by regulatory boards to ensure safe use and superior quality.
- When purchasing our products, you can also enjoy a host of after-sales services, including low-cost maintenance, installation guidance, and more. The AIRSUSTECH air springs here are environmentally friendly, with features such as anti-corrosion and anti-rust, and have a longer service life.

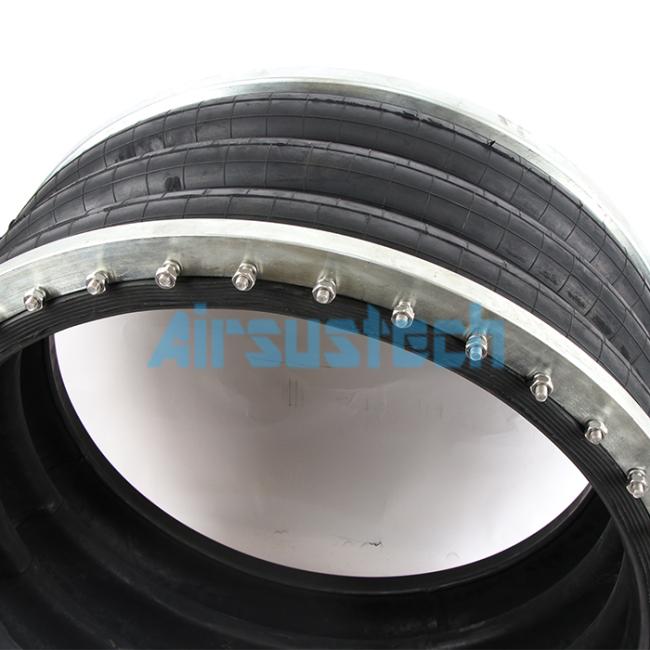

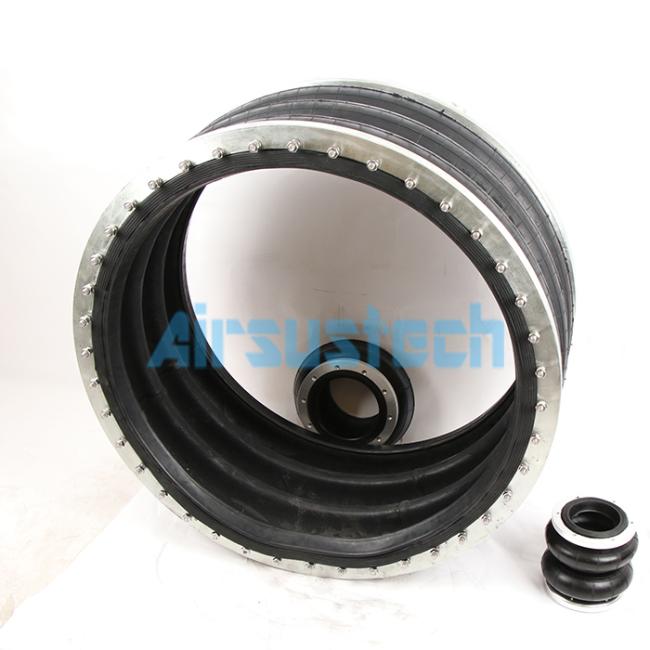

The Real and Comparison Photos of 3H1023:
