Air Bags Firestone W01-358-1023 Triple Convoluted Air Actuator Minimum Height 140MM
Air Bags Firestone W01-358-1023 Triple Convoluted Air Actuator Minimum Height 140MM
Product Description:
Air spring is a device that uses compressed air to achieve suspension and shock absorption. It is widely used in automobiles, trucks, trains, engineering machinery and other fields. Among them, stamped flange air spring, as an important type, has the advantages of simple structure, easy use and stable performance.
Specifications and Technical Parameters:
3H1023 Specifications:
| Bellow MAX. Diameter at 7 Bar | 950 mm |
| Minimum Height | 140 mm |
| Maximum Height | 584 mm |
| Pressure Ability | 0-8 bar |
| Structure | Triple Convolutions |
| OEM No. | Style 348-3 |
3H1023 Technical Parameters:
|
Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only) |
|||
|
Gauge Pressure (BAR) |
Load (kN) |
Spring Rate (kN/m) |
Natural Frequency (Hz) |
| 3 | 150.16 | 853 | 1.19 |
| 4 | 204.95 | 1110 | 1.16 |
| 5 | 258.67 | 1358 | 1.14 |
| 6 | 317.66 | 1614 | 1.12 |
| 7 | 371.47 | 1839 | 1.11 |
| Force Table (Use for Airstroke actuator design) | |||||||
|
Assembly Height (mm) |
Volume @ 7BAR (cu cm) |
EFF Area @ 7 BAR (cm sq) |
kN Force | ||||
|
@ 3 BAR |
@ 4 BAR |
@ 5 BAR |
@ 6 BAR |
@ 7 BAR |
|||
| 480 | 270750 | 4561 | 127.37 | 173.02 | 217.83 | 270.35 | 319.21 |
| 440 | 250951 | 4919 | 138.66 | 188.24 | 237.29 | 292.98 | 344.32 |
| 400 | 230507 | 5189 | 146.63 | 199.91 | 252.25 | 310.21 | 363.21 |
| 360 | 208945 | 5418 | 153.57 | 209.53 | 264.45 | 324.50 | 379.23 |
| 320 | 185692 | 5635 | 160.48 | 217.86 | 274.75 | 337.23 | 394.37 |
| 280 | 161999 | 5837 | 166.81 | 225.16 | 283.33 | 348.39 | 408.53 |
| 240 | 138075 | 6014 | 171.63 | 231.86 | 290.68 | 357.85 | 420.92 |
| 200 | 113324 | 6165 | 175.04 | 238.45 | 297.89 | 366.36 | 431.46 |
| 160 | 87906 | 6334 | 180.41 | 245.13 | 306.87 | 377.11 | 443.32 |
Cross References:
There are several other models of the product with style 348-3:
1. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers:
W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971, W01 M58 6971
2. Rubber Bellows only:
W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023, WO13581023
3. Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers:
W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358 9603, WO13589603
FAQ:
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.
Q: Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

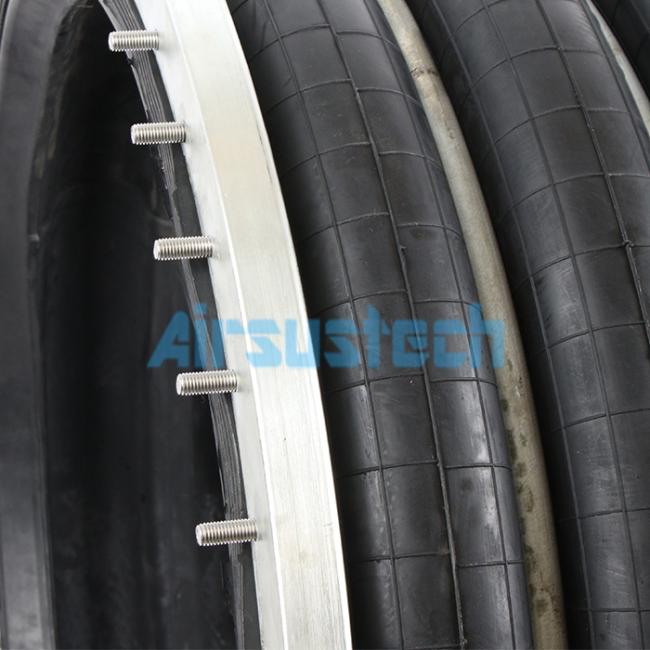

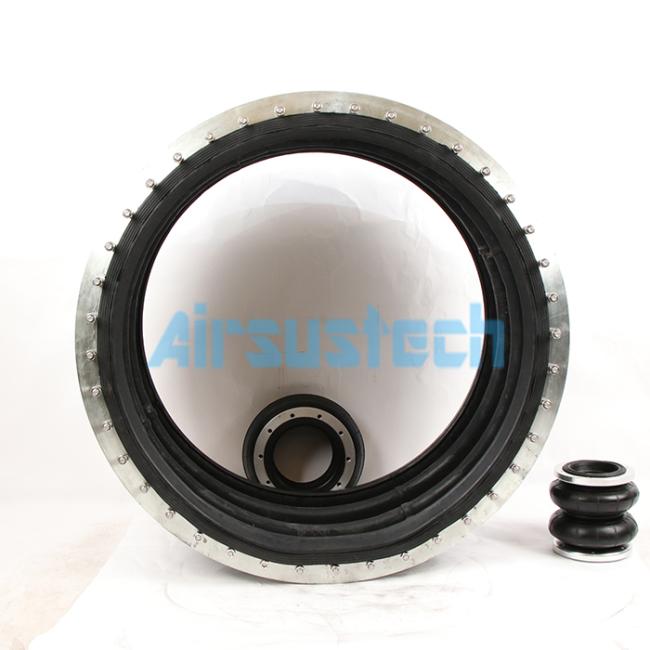

The Real and Comparison Photos of 3H1023:
