Firestone W01-358-9603 Industrial Air Springs Style 348-3 Air Actuator Assembly
Firestone W01-358-9603 Industrial Air Springs Style 348-3 Air Actuator Assembly
Product Description:
The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Specifications and Technical Parameters:
3H9603 Specifications:
- Bellow MAX. Diameter at 100 PSIG: 37.4 Inches
- Minimum Height: 5.5 Inches
- Maximum Height: 23 Inches
- Stroke Height: 17.5 Inches
- Design Height: 15 Inches
- Top Cover Plate: 35.04 Inches
- Bottom Cover Plate: 35.04 Inches
- Bolts Type: 40(3/8-24)
- Bolt Center Distance: Triple Convolutions
- OEM NO.: Style 348-3
3H9603 Technical Parameters:
|
Dynamic Characteristics at 15.0 in. Design Height (Required for Airmount isolator design only) |
||||
| Volume @ 100 PSIG=13,501 in3 | Natural Frequency | |||
|
Gauge Pressure (PSIG) |
Load (Ibs.) |
Spring Rate (Ibs./in.) |
CPM | HZ |
| 40 | 31,480 | 4,761 | 73 | 1.22 |
| 60 | 47,870 | 6,586 | 70 | 1.16 |
| 80 | 64,870 | 8,614 | 68 | 1.14 |
| 100 | 64,870 | 8,614 | 68 | 1.14 |
Cross References:
There are several other models of the product with style 348-3:
| Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers |
W01-358-9603, W01 358 9603 , W01358 9603 WO1-358-9603, WO1 358 9603, WO13589603 |
| Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers |
W01-M58-6971, W01M586971, WO1-M58-6971 WO1 M58 6971, WO1M586971, W01 M58 6971 |
| Rubber Bellows only |
W01-358-1023, W01 358 1023, W013581023 WO1-358-1023, WO1 358 1023, WO13581023 |
3H9603 Air Springs Properties:
- Maintenance-free
- High operational reliability
- Long service life
- Resistance to different media
- Simple, economical assembly
Please send us your request by e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH 3H9603 Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

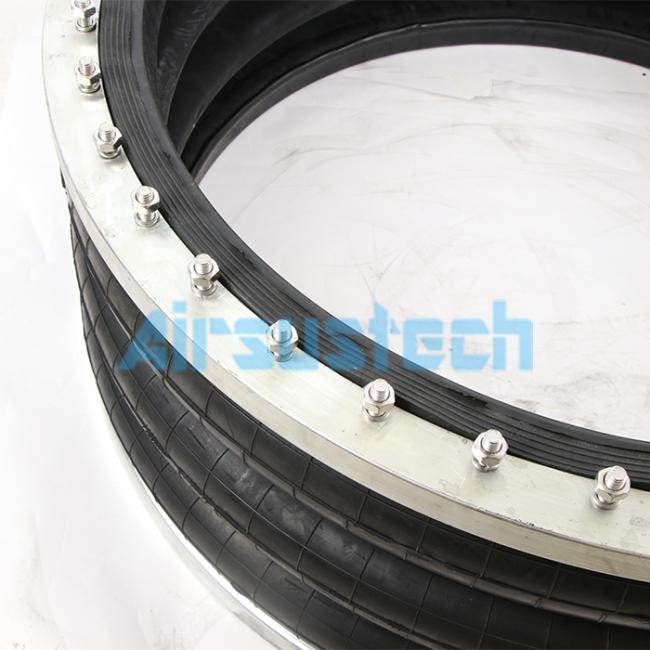

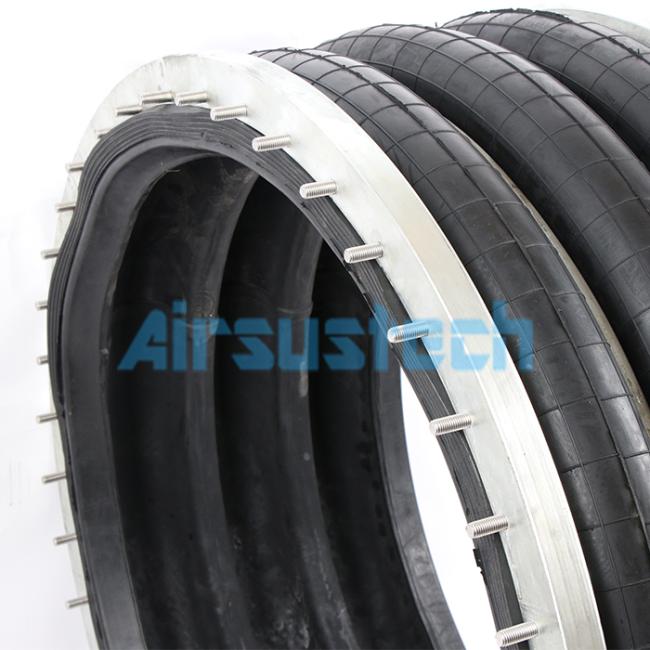

3H9603 Real Pictures:
