Firestone W01-358-9603 Air Spring Assembly Cover Plate Diameter 35.04 Inches Air Bag

Price Negotiable
Price: Negotiable
MOQ: 5
Delivery Time: 5-8 Working Days
Brand: AIRSUSTECH Air Springs
Product Description

Firestone W01-358-9603 Air Spring Assembly Cover Plate Diameter 35.04 Inches Air Bag


Product Description:

AIRSUSTECH actuators are playing a crucial role in modern machine design as pneumatic actuators in industrial applications.
Due to their durability, ability to withstand abrasive environments, and exceptional performance, AIRSUSTECH actuators are becoming a popular replacement for traditional pneumatic and hydraulic cylinders.





Specifications and Technical Parameters:



3H9603 Specifications:

Bellow MAX. Diameter at 100 PSIG 37.4 Inches
Minimum Height 5.5 Inches
Maximum Height 23 Inches
Stroke Height 17.5 Inches
Design Height  15 Inches
Top Cover Plate 35.04 Inches
Bottom Cover Plate 35.04 Inches
Bolts Type 40(3/8-24)
Bolt Center Distance  32.68 Inches
Structure Triple Convolutions
OEM No. Style 348-3





3H9603 Technical Parameters:

Dynamic Characteristics at 15.0 in. Design Height

(Required for Airmount isolator design only)

Volume @ 100 PSIG=13,501 in3 Natural Frequency

Gauge

Pressure (PSIG)

Load (Ibs.)

Spring Rate

(Ibs./in.)

CPM HZ
40 31,480 4,761 73 1.22
60 47,870 6,586 70 1.16
80 64,870 8,614 68 1.14
100 64,870 8,614 68 1.14





Cross References:



There are several other models of the product with style 348-3:



Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers

W01-358-9603, W01 358 9603 , W01358 9603

WO1-358-9603, WO1 358 9603, WO13589603

Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers

W01-M58-6971, W01M586971, WO1-M58-6971

WO1 M58 6971, WO1M586971, W01 M58 6971

Rubber Bellows only

W01-358-1023, W01 358 1023, W013581023

WO1-358-1023, WO1 358 1023, WO13581023





Applications:



AIRSUSTECH industrial products are used in an array of industries ranging from air springs for agriculture equipment to anti-vibration solutions for commercial trailers. Some common industries AIRSUSTECH serves are:



  • Commercial Truck & Trailer
  • Rail Applications
  • Agriculture
  • Construction and Mining
  • Actuators and Isolators

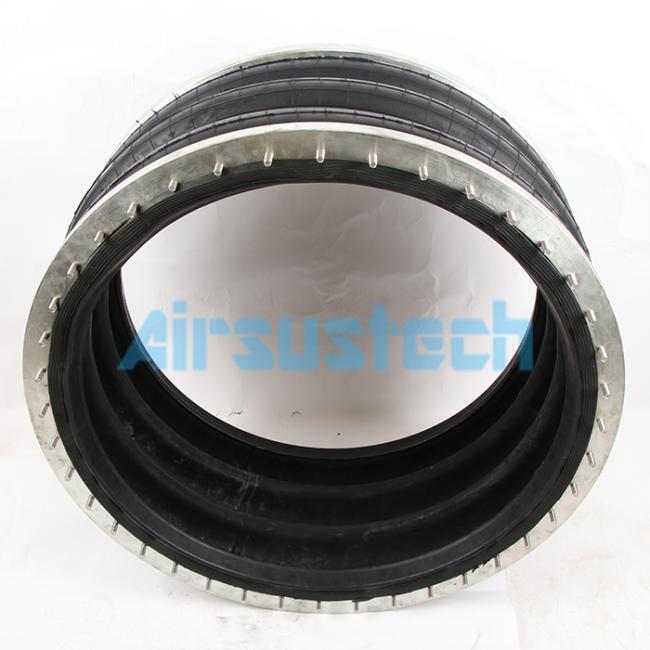

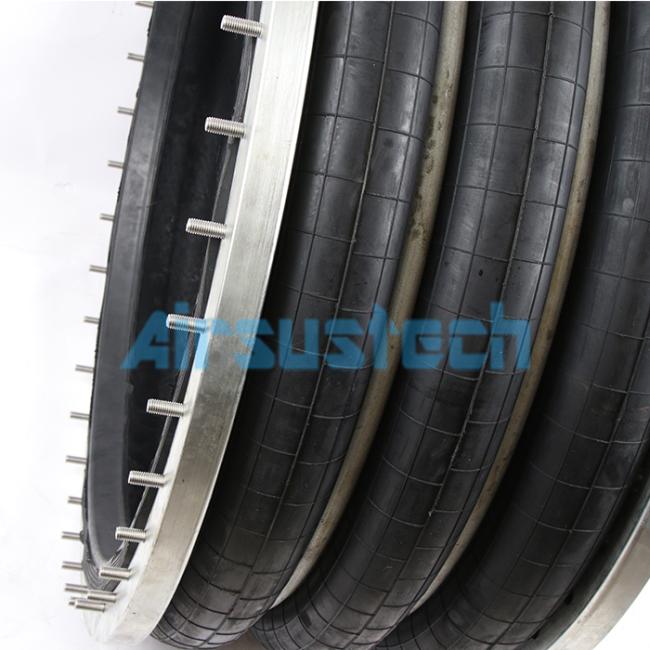

3H9603 Real Pictures:
