W01-358-1023 Firestone Triple Convoluted Air Spring Style 348-3 Suspension Air Bag
W01-358-1023 Firestone Triple Convoluted Air Spring Style 348-3 Suspension Air Bag
Product Description:
Flange air spring is an ideal choice for air suspension system. It is a device that provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, motorcycles, etc. Compared with traditional steel springs, flange air springs have more advantages and functions.
Specifications and Technical Parameters:
3H1023 Specifications:
| Minimum Height | 5.5 Inches |
| Maximum Height | 23 Inches |
| Stroke Height | 17.5 Inches |
| Design Height | 15 Inches |
| OEM NO. | Style 348-3 |
| Structure | Triple Convolutions |
| Material | Rubber |
3H1023 Technical Parameters:
|
Dynamic Characteristics at 15.0 in. Design Height (Required for Airmount isolator design only) |
||||
| Volume @ 100 PSIG=13,501 in3 | Natural Frequency | |||
|
Gauge Pressure (PSIG) |
Load (Ibs.) |
Spring Rate (Ibs./in.) |
CPM | HZ |
| 40 | 31,480 | 4,761 | 73 | 1.22 |
| 60 | 47,870 | 6,586 | 70 | 1.16 |
| 80 | 64,870 | 8,614 | 68 | 1.14 |
| 100 | 64,870 | 8,614 | 68 | 1.14 |
Cross References:
There are several other models of the product with style 348-3:
| Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers |
W01-358-9603, W01 358 9603 , W01358 9603 WO1-358-9603, WO1 358 9603, WO13589603 |
| Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers |
W01-M58-6971, W01M586971, WO1-M58-6971 WO1 M58 6971, WO1M586971, W01 M58 6971 |
| Rubber Bellows only |
W01-358-1023, W01 358 1023, W013581023 WO1-358-1023, WO1 358 1023, WO13581023 |
Applications:
- First of all, in industrial equipment, the flange air spring can be used as a shock absorber and vibration isolator for shock absorption and vibration isolation of various mechanical equipment and instruments and meters, improving the stability and work efficiency of the equipment.
- Secondly, in the field of transportation, flange air springs are widely used in automobile suspension systems and vibration reduction devices for railway vehicles, which can effectively reduce the bumps and vibrations of vehicles during driving and improve ride comfort and safety.
- In addition, flange air springs can also be used in construction projects for seismic isolation and vibration reduction of large buildings, which can effectively reduce the impact of earthquakes on buildings and protect personal and property safety.
- Finally, in the field of aerospace, flange air springs can be used for vibration reduction and isolation of landing gear and spacecraft of aircraft, which can improve the stability and safety of aircraft.

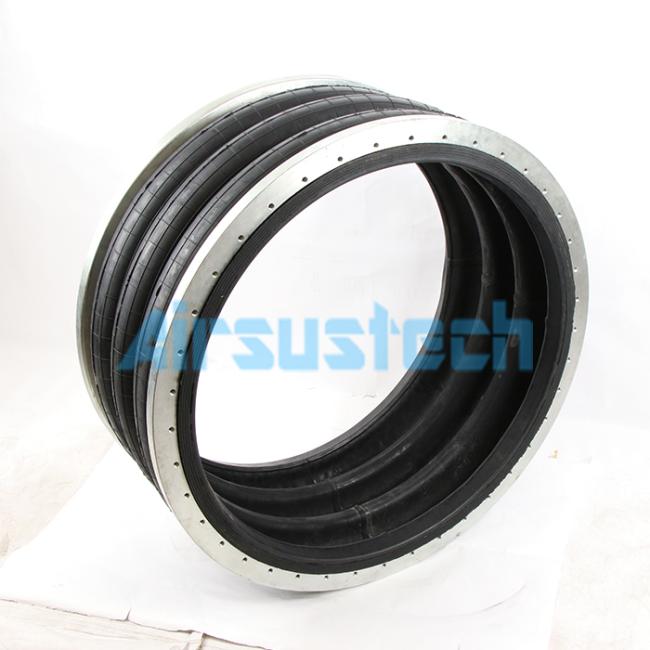

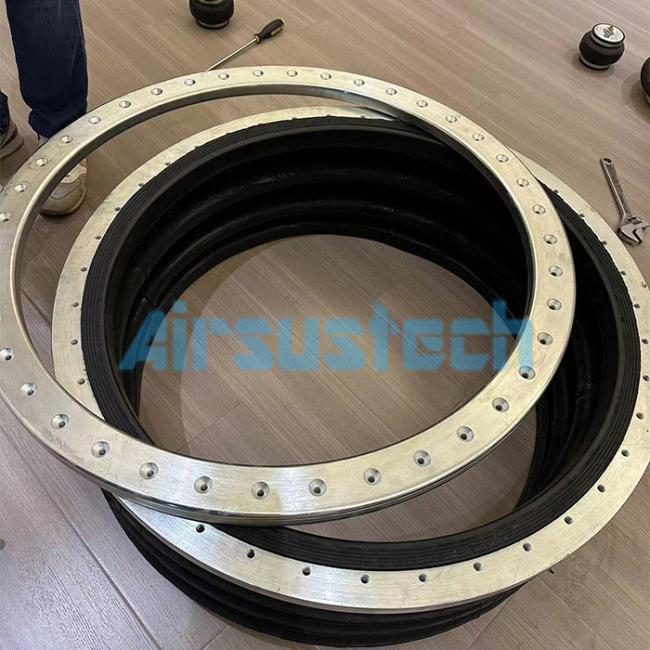

3H1023 Real Pictures:
