Firestone W01-358-1023 Suspension Air Springs Triple Convoluted Bellows Air Shocks
Firestone W01-358-1023 Suspension Air Springs Triple Convoluted Bellows Air Shocks
Product Description:
The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Specifications and Technical Parameters:
3H1023 Specifications:
| Minimum Height | 5.5 Inches |
| Maximum Height | 23 Inches |
| Stroke Height | 17.5 Inches |
| Design Height | 15 Inches |
| OEM NO. | Style 348-3 |
| Structure | Triple Convolutions |
| Material | Rubber |
3H1023 Technical Parameters:
| Force Table (Use for Airstroke actuator design) | ||||||
|
Assembly Height (in.) |
Volume @ 100 PSIG (in3) |
Pounds Force | ||||
| @ 20 PSIG | @ 40 PSIG | @ 60 PSIG | @ 80 PSIG | @ 100 PSIG | ||
| 18.0 | 15,946 | 14,080 | 27,430 | 43,790 | 57,710 | 74,670 |
| 16.0 | 14,340 | 15,190 | 30,370 | 46,420 | 62,810 | 80,190 |
| 14.0 | 12,634 | 16.230 | 32,380 | 49,170 | 66,610 | 84,820 |
| 12.0 | 10,8,984 | 18,290 | 35,370 | 51,470 | 69,410 | 89,150 |
| 10.0 | 8,984 | 18,290 | 35,370 | 53,580 | 71,930 | 93,030 |
| 8.0 | 7,075 | 19,070 | 36,970 | 55,590 | 74,740 | 96,470 |
| 6.0 | 5,102 | 19,760 | 38,620 | 57,550 | 77,790 | 99,680 |
Cross References:
There are several other models of the product with style 348-3:
1.Rubber bellows only:
W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023, WO13581023
2. Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers:
W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358 9603, WO13589603
3. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers:
W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971, W01 M58 6971
How Air Springs Work on Bark Peeling Machine:
- Air springs are commonly used in bark peeling machines to provide shock absorption and isolation from vibrations. An air spring consists of a cylindrical elastomeric bellow sealed between two end plates to form a chamber. When compressed air is added to the chamber, the bellow expands and lifts the upper plate, lifting the load on top of the air spring. The air spring provides a cushion-like effect that isolates the load from shocks and vibrations. The amount of load carried by the air spring can be adjusted by varying the air pressure in the chamber.
- Guangzhou Guomat Air Spring, a Guangzhou-based company, supplies and installs air spring suspension systems for a variety of industrial applications. Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standards of production, to create a world-class products.

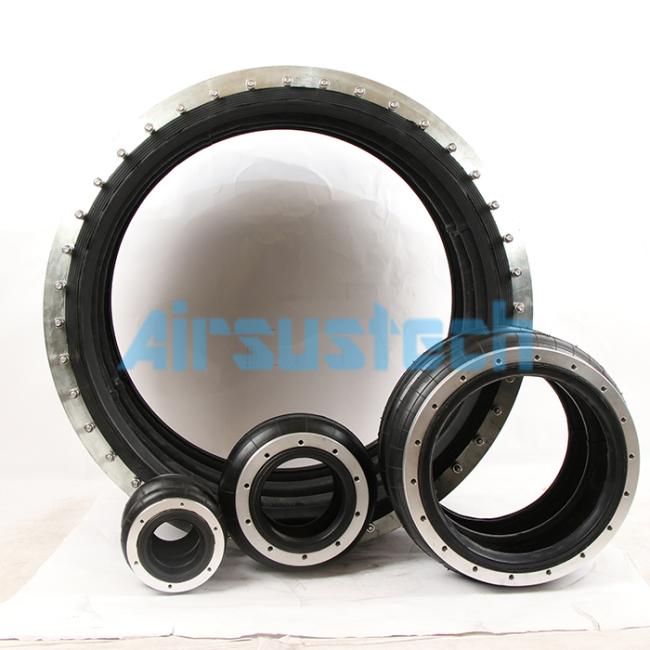

3H1023 Real and Comparison Pictures:
