SP1B07 Air Bags Phoenix Single Convoluted Air Shocks Absorber Max. Height 115MM
SP1B07 Air Bags Phoenix Single Convoluted Air Shocks Absorber Max. Height 115MM
Product Description:
Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.
1B1209-P Features:
| Air Fitting | G 1/4 |
| Stroke Lenght | 65 mm |
| Bellows Type | Single Convolution |
| Max Expanded Height | 115 mm |
| Compressed Height | 50 mm |
| Upper Cover Plate Diameter | 135 mm |
| Lower Cover Plate Diameter | 135 mm |
| Bolts Distance | 53 mm |
| Distance Gas Hole Between Nut | 26 mm |
| Top/ Bottom Plate Bolts | 2×M8×1.25 |
| Pressure [P] | [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
| Height H [mm] | 120 | 3.1 | 4.3 | 5.6 | 6.9 | 8.0 | 9.2 |
| 110 | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | |
| 100 | 4.5 | 6.1 | 7.9 | 9.7 | 11.0 | 12.4 | |
| 90 | 5.0 | 6.8 | 8.9 | 10.8 | 12.2 | 13.8 | |
| 80 | 5.5 | 7.4 | 9.7 | 11.6 | 13.3 | 15.0 | |
| 70 | 5.9 | 7.9 | 10.3 | 12.3 | 14.2 | 16.0 | |
| 60 | 6.3 | 8.2 | 10.7 | 13.0 | 15.0 | 17.0 |
| SP 1 B 04 | SP 2 B 05 R-a | 2B 07 R | 2B07R |
| SP 1 B 05 | SP 2 B 07 R | 2B 12 R | 2B12R |
| SP 1 B 07 | SP 2 B 12 R | 2B 12 R-3 | 2B12R-3 |
| SP 1 B 12 | SP 2 B 12 R-1 | 2B 15 R | 2B15R |
| SP 1 B 22 | SP 2 B 12 R-2 | 2B 20 R | 2B20R |
| SP 1 B 34 | SP 2 B 12 R-3 | 2B 20 R-9 | 2B20R-9 |
| SP1B04 | SP 2 B 22 R | 2B 21 R | 2B21R |
| SP1B05 | SP 2 B 34 R | 2B 21 R-9 | 2B21R-9 |
| SP1B07 | SP 2 B 34 R-b | 2B 22 R | 2B22R |
| SP1B12 | SP2B05R-a | 2B 22 R a-9 | 2B21Ra-9 |
| SP1B22 | SP2B07R | 2B 34 R | 2B34R |
| SP1B34 | SP2B12R | 2B 34 R-b | 2B34R-b |
| SP2B12R-1 | 2B 49 R-a | 2B34R-a | |
| SP2B12R-2 | 2B 49 R-b | 2B49R-a | |
| SP2B12R-3 | 2B 85 R | 2B49R-b | |
| SP2B22R | 2B 85 R-a | 2B85R | |
| SP2B34R | 2B85R-a | ||
| SP2B34R-b |
- Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
- Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
- Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
FAQ:
Q1: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.
Q2: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.
Q3: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 1B1209-P.

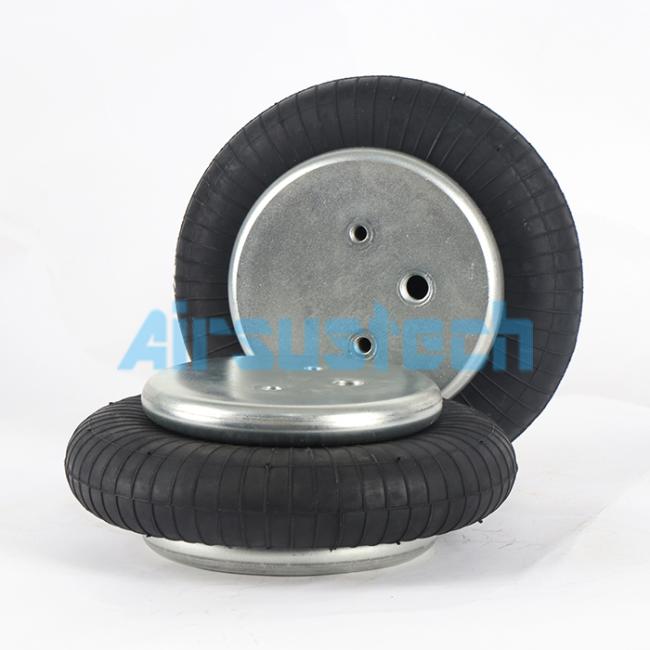

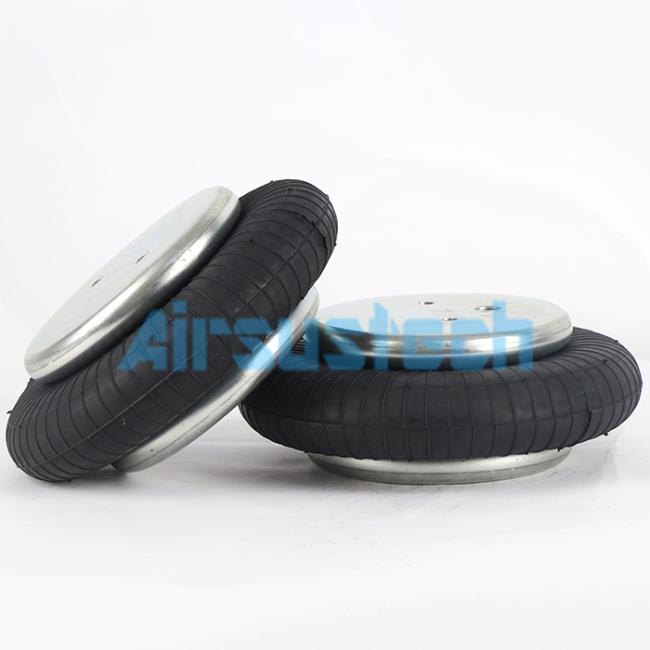

The Related Pictures of 1B1209-P:
