Product Description:
Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.
1B1209-P Features:
Air Hole/Air Fitting/Gas Hole
Air Hole: G 1/4
Operation: Gas-filled
Height
Stroke Lenght: 65 mm
Compressed Height: 50 mm
Max Expanded Height: 115 mm
Cover Plate
Upper Cover Plate Diameter: 135 mm
Lower Cover Plate Diameter: 135 mm
Nut/Screw
Nuts Distance: 53 mm
Distance Gas Hole Between Nut: 26 mm
Top/ Bottom Plate Nuts: 2×M8×1.25
| SP 1 B 04 | SP 2 B 05 R-a | 2B 07 R | 2B07R |
| SP 1 B 05 | SP 2 B 07 R | 2B 12 R | 2B12R |
| SP 1 B 07 | SP 2 B 12 R | 2B 12 R-3 | 2B12R-3 |
| SP 1 B 12 | SP 2 B 12 R-1 | 2B 15 R | 2B15R |
| SP 1 B 22 | SP 2 B 12 R-2 | 2B 20 R | 2B20R |
| SP 1 B 34 | SP 2 B 12 R-3 | 2B 20 R-9 | 2B20R-9 |
| SP1B04 | SP 2 B 22 R | 2B 21 R | 2B21R |
| SP1B05 | SP 2 B 34 R | 2B 21 R-9 | 2B21R-9 |
| SP1B07 | SP 2 B 34 R-b | 2B 22 R | 2B22R |
| SP1B12 | SP2B05R-a | 2B 22 R a-9 | 2B21Ra-9 |
| SP1B22 | SP2B07R | 2B 34 R | 2B34R |
| SP1B34 | SP2B12R | 2B 34 R-b | 2B34R-b |
| SP2B12R-1 | 2B 49 R-a | 2B34R-a | |
| SP2B12R-2 | 2B 49 R-b | 2B49R-a | |
| SP2B12R-3 | 2B 85 R | 2B49R-b | |
| SP2B22R | 2B 85 R-a | 2B85R | |
| SP2B34R | 2B85R-a | ||
| SP2B34R-b |
- Flexibility (no angle or alignment problem)
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions

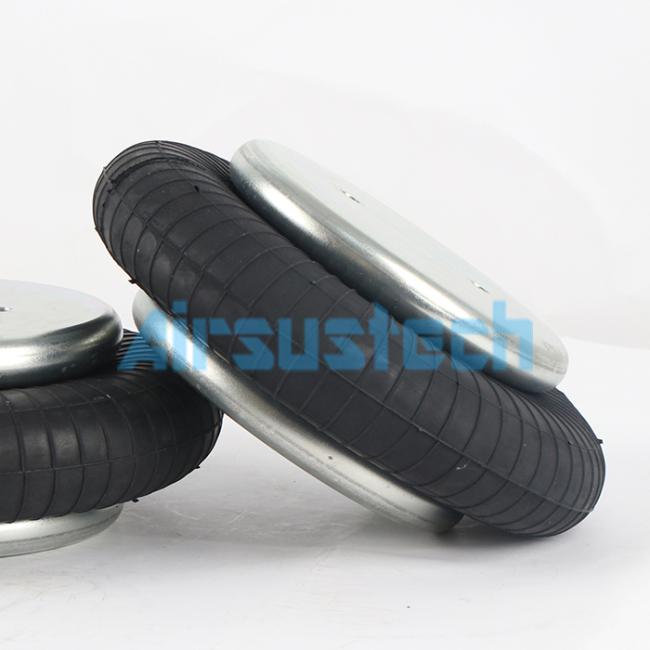

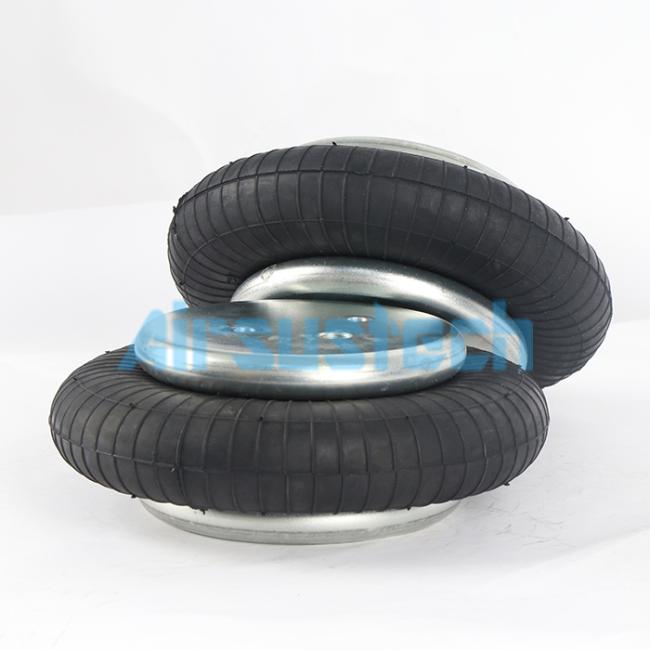

The Related Pictures of 1B1209-P:
