Contitech FS 330-11 474 Air Bag Cross Triangle 6374 Air Pneumatic Spring 90557226
Contitech FS 330-11 474 Air Bag Cross Triangle 6374 Air Pneumatic Spring 90557226
1B5330 Specification
- Air hole/gas fitting/ gas hole
Air inlet: 1/4 NPTF
- Nuts/screws
Screw center distance: 157.5 mm
Distance gas hole between nut: 73 mm
Plate hole/stud qty: two on one plate
Threaded hole type: 2×3/8-16 UNC
- Height
Maximum height: 160 mm
Minimum height: 55 mm
Stroke height: 105 mm
- Rubber bellows
The max diameter: 325 mm
Material: rubber and stainless
Cross References
| Firestone |
W01-358-7008, W01 358 7008 W013587008 WO1-358-7008, WO13587008, WO1 358 7008 |
| Contitech |
FS 330-11 474, FS330-11 474, FS330-11474 FS 330 11 474, FS330 11 474, FS33011 474 FS330-11 474, FS330 11474, FS33011474 |
| Goodyear | 1B12-300/313, 1B12 300/313, 1B12300/313 |
| Triangle | 6374/4474 |
| Holland(Neway) | 90557226 |
For the same Style 19, we can supply
| Blind nuts, 1/4 NPT |
W01-358-7008, W01 358 7008, W013587008 WO1-358-7008, WO1 358 7008, WO13587008 |
| Blind nuts, 1/4 NPT, bumper |
W01-358-7009, W01 358 7009, W013587009 WO1-358-7009, WO1 358 7009, WO13587009 |
| Blind nuts, 3/4 NPT |
W01-358-7011, W01 358 7011, W013587011 WO1-358-7011, WO13587011, WO13587011 |
| Blind nuts, 3/4 NPT, bumper |
W01-358-7012, W01 358 7012, W013587012 WO1-358-7012, WO1 358 7012, WO13587012 |
| Countersunk steel bead rings, 15/8 bolts, nuts, washers |
W01-358-7023, W01 358 7023, W013587023 WO1-358-7023, WO1 358 7023, WO13587023 |
| Rubber bellows only |
W01-358-0134, W01 358 0134, W013580134 WO1-358-0134, WO1 358 0134, WO13580134 |

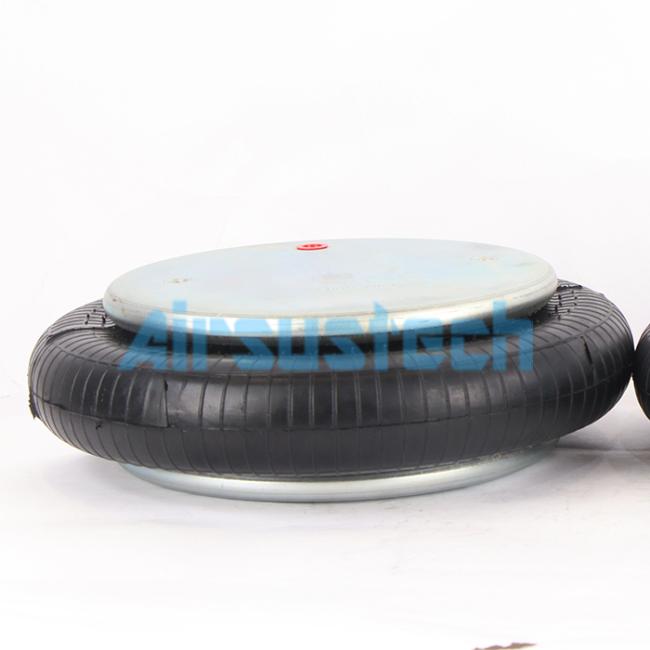

The Related Pictures of 1B5330:
