EI Ride 8030190 Industrial Air Spring Suspension Firestone W01-358-7180 Style 22
EI Ride 8030190 Industrial Air Spring Suspension Firestone W01-358-7180 Style 22
2B6330 Specifications
Air Hole/Air Fitting
Gas Hole: 1/4 NPTF
Operation: Gas-filled
Height
Maximum Height: 305 mm
Miinmum Height: 81 mm
Stroke Height: 224 mm
Rubber Bellows
Bellow Max. Diameter: 325 mm
Structure: Double convoluted
Bumper: No
Cover Plate
Bottom Cover Plate Diameter: 231 mm
Top Cover Plate Diameter: 231 mm
Nuts/Screw
Screw Center Distance: 157 ｍｍ
Distance Gas Hole Between Nut: 71 mm
Cross References
| Firestone |
W01-358-7180, W013587180, W01 358 7180 WO1-358-7180, WO13587180, WO1 358 7180 W01-358-7122, W013587122, W01 358 7122 WO1-358-7122, WO13587122, WO1 358 7122 |
| Contitech |
FD 330-22 363, FD 330 22 363, FD33022363 FD 33022 363, FD 33022363, FD330-22 363 FD330 22 363, FD33022 363, FD33022363 FD 33022 363, FD330-22363, FD 330-22363 |
| Goodyear |
2B12-425/311, 2B12 425/311, 2B12425/311 |
| Triangle |
6316/4363 |
| Airkraft | 115061/3B-356 |
| Vibracoustic | VSP2B22R7180 |
| EI Ride | 8030190 |
| Leland | Sc2075 |
| Navistar | 1685179C1 |
| Hendrickson | 1VA1816 |
| Ridewell | 1003587180C |
| SAF Holland | 57007180 |
| Watson & Chalinl | AS0154 1G/01881F, AS01541G/01881F |
| Peerless | 0550 00001 |
Style 22, We Can Supply Other Models
|
Blind nuts, 1/4 NPT |
W01-358-7180, W013587180, W01 358 7180 WO1-358-7180, WO13587180, WO1 358 7180 W01-358-7122, W013587122, W01 358 7122 WO1-358-7122, WO13587122, WO1 358 7122 |
|
Blind nuts, 1/4 NPT, bumper |
W01-358-7400, W01 358 7400, W01 358 7400 WO1-358-7400, WO1 358 7400, WO13587400 |
|
Blind nuts, 3/4 NPT |
W01-358-7184, W01 358 7184, W013587184 WO1-358-7184, WO1 358 7184, WO13587184 |
|
Blind nuts, 3/4 NPT, bumper |
W01-358-7185, W01 358 7185, W013587185 WO1-358-7185, WO1 358 7185, WO13587185 |
|
Countersunk steel bead rings, 15/8 bolts, nuts, washers |
W01-358-7431, W01 358 7431, W013587431 WO1-358-7431, WO1 358 7431, WO13587431 |
|
Rubber bellows only |
W01-358-0226, W01 358 0226, W013580226 WO1-358-0226, WO1 358 0226, WO13580226 |
Company Profile
- Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
- Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
- Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.

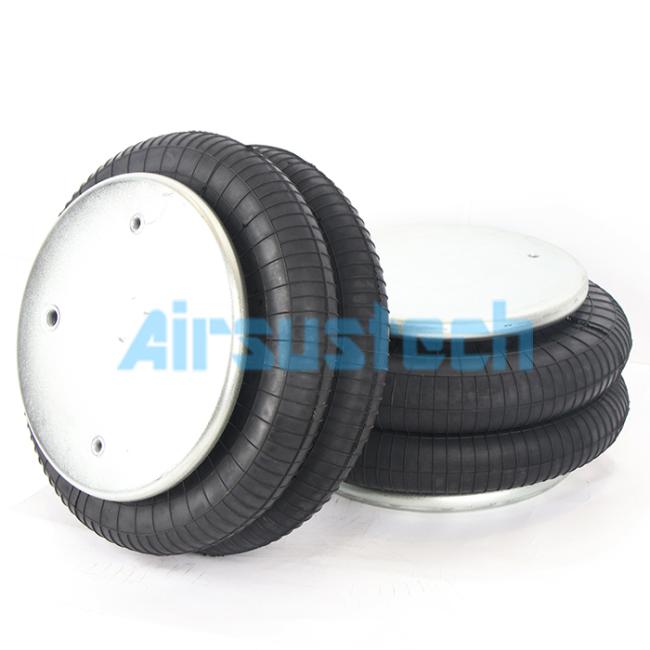

The Related Pictures of 2B6330:
