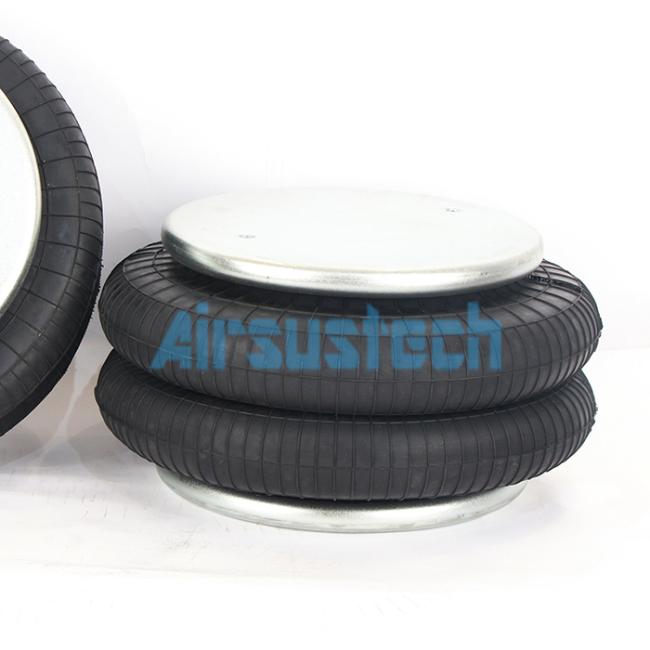

Navistar 1685179C1 Air Spring Suspension Cross Firestone W01-358-7180 W013587122
Navistar 1685179C1 Air Spring Suspension Cross Firestone W01-358-7180 W013587122
Product Specifications
Air Hole/Air Fitting
Gas Hole: 1/4 NPTF
Operation: Gas-filled
Height
Maximum Height: 305 mm
Miinmum Height: 81 mm/3.2 in.
Stroke Height: 224 mm/8.8 in.
Rubber Bellows
Bellow Max. Diameter: 325 mm/12.9 in.
Structure: Double convoluted
Bumper: No
Cover Plate
Bottom Cover Plate Diameter: 231 mm/9 in.
Top Cover Plate Diameter: 231 mm/9 in.
Nuts/Screw
Screw Center Distance: 157 mm/6.2 in.
Distance Gas Hole Between Nut: 71 mm/2.88 in.
Technical Parameters
Force @ 20 PSIG at design height (pounds): 1,430
Force @ 40 PSIG at design height (pounds): 2,900
Force @ 60 PSIG at design height (pounds): 4,390
Force @ 80 PSIG at design height (pounds): 5,950
Force @ 100 PSIG at design height (pounds): 7,450
Volume @ 100 PSIG(in3) at 10 in.: 809
Volume @ 100 PSIG(in3) at 9 in.: 752
Volume @ 100 PSIG(in3) at 8 in.: 685
Volume @ 100 PSIG(in3) at 7 in.: 610
Volume @ 100 PSIG(in3) at 6 in.: 529
Volume @ 100 PSIG(in3) at 5 in.: 442
Volume @ 100 PSIG(in3) at 4 in.: 349
Cross References
| Firestone |
W01-358-7180, W013587180, W01 358 7180 WO1-358-7180, WO13587180, WO1 358 7180 W01-358-7122, W013587122, W01 358 7122 WO1-358-7122, WO13587122, WO1 358 7122 |
| Contitech |
FD 330-22 363, FD 330 22 363, FD33022363 FD 33022 363, FD 33022363, FD330-22 363 FD330 22 363, FD33022 363, FD33022363 FD 33022 363, FD330-22363, FD 330-22363 |
| Goodyear |
2B12-425/311, 2B12 425/311, 2B12425/311 |
| Triangle |
6316/4363 |
| Airkraft | 115061/3B-356 |
| Vibracoustic | VSP2B22R7180 |
| EI Ride | 8030190 |
| Leland | Sc2075 |
| Navistar | 1685179C1 |
| Hendrickson | 1VA1816 |
| Ridewell | 1003587180C |
| SAF Holland | 57007180 |
| Watson & Chalinl | AS0154 1G/01881F, AS01541G/01881F |
| Peerless | 0550 00001 |
Style 22, We Can Supply Other Models
1. Blind nuts, 1/4 NPT
W01-358-7180, W013587180, W01 358 7180, WO1-358-7180, WO13587180, WO1 358 7180
W01-358-7122, W013587122, W01 358 7122, WO1-358-7122, WO13587122, WO1 358 7122
2. Blind nuts, 1/4 NPT, bumper
W01-358-7400, W01 358 7400, W01 358 7400, WO1-358-7400, WO1 358 7400, WO13587400
3. Blind nuts, 3/4 NPT
W01-358-7184, W01 358 7184, W013587184, WO1-358-7184, WO1 358 7184, WO13587184
4. Blind nuts, 3/4 NPT, bumper
5. Countersunk steel bead rings, 15/8 bolts, nuts, washers
6. Rubber bellows only
