Product Description:
The AIRSUSTECH Air Springs are available in single, double and triple convolution types for virtually every conceivable heavy-duty vehicle suspension application. In addition, 2B6910 air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air.
Specifications and Detailed Technical Parameters
2B6910 Specifications
| Air Hole |
1/4 NPTF
|
| Number of Ply Bellows | Double |
| Minimum Usable Height | 75 MM |
| Max Expanded Height | 260 MM |
| Stroke Height | 224 MM |
| Threaded Hole |
2X3/8-16UNC
|
| Top/Bottom Cover Plate Diameter | 185 MM |
| Hole/Stud Qty | Two On One Plate |
| Screw Center Distance | 89 MM |
| Distance Gas Hole Between Nut | 44.5 MM |
| Bellow Max. Diameter | 251 MM |
| Bellow Natural Diameter | 224 MM |
| Top/Bottom Plate Width | 160 MM |

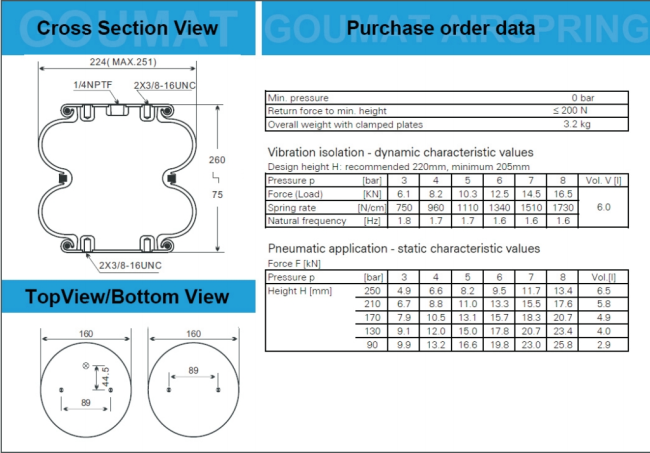

The Technical Dats Sheet Drawing of 2B6910:
Cross References:
| Firestone |
W01-358-6910, W01 358 6910 W013586910, WO1-358-6910 WO1 358 6910, WO13586910 |
Dayton |
3546910 |
| Contitech |
FD 200-19 320, FD 200 19 320 FD20019320, FD 20019 320 FD 200 19320, FD 20019320 |
Leland |
Sc2011 |
| Goodyear |
2B9-200/202/216 |
Navistar | 554783C1 |
| Triangle | 6325/4320 | Hendrickson | S8768/458433 |
| Taurus | KF218-6910 | Ridewell | 1003586910C |
| Brake & Wheel | M3501 | SAF Holland | 57006910 |
| Dina | A812719/AZ812719 | Trailers De | 133128 |
| Tuthill | 1371 | Watson & Chalin | AS-0001/AS-0156G |
We Have Other Models of The Same Rubber Bellows Number:
| Guomat NO. | Air Inlet | The MAX. Bellows OD. | MIN. H. | MAX. H. | Nuts Type |
Top/Bottom Cover Plate Diameter |
Screw Center Distance | Distance Gas Hole Betweeen Screw |
| 2B6910P01 | 1/4 NPTF | 251 mm | 75 mm | 260 mm | 2×3/8-16UNC | 160 mm | 89 mm | 44.5 mm |
| 2B6910-3/4 | G3/4 | 251 mm | 75 mm | 260 mm | 2×M8×1.25 | 160 mm | 89 mm | 38 mm |
| 2B6910 | 1/4 NPTF | 251 mm | 75 mm | 260 mm | 2×3/8-16UNC | 160 mm | 89 mm | 44.5 mm |
| 2B6910P02 | 1/4 BSP | 251 mm | 75 mm | 260 mm | 2×M8×1.25 | 160 mm | 89 mm | 44.5 mm |
| 2B6910P03 | 1/4 NPTF | 232.5 mm | # | 240 mm | 2×3/8-16UNC | 160 mm | 89 mm | 44 mm |
A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.
A: There is a 12months warranty for our export products has run out from the date of the shipment.
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

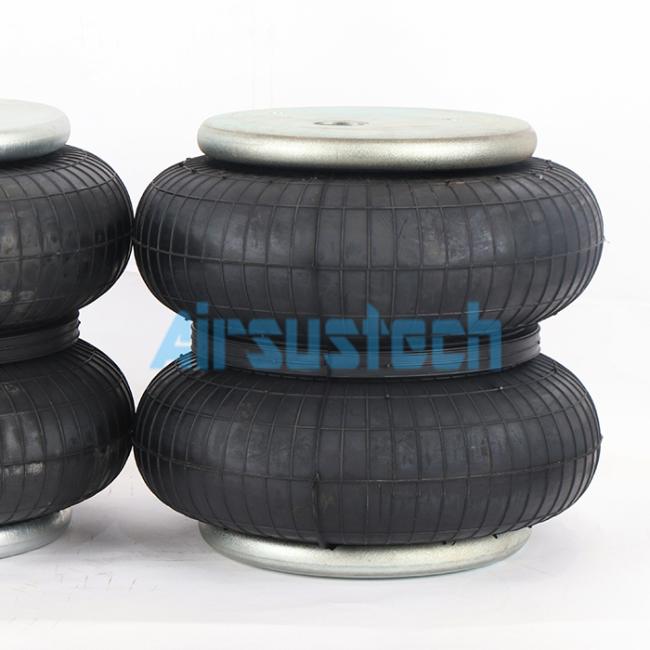

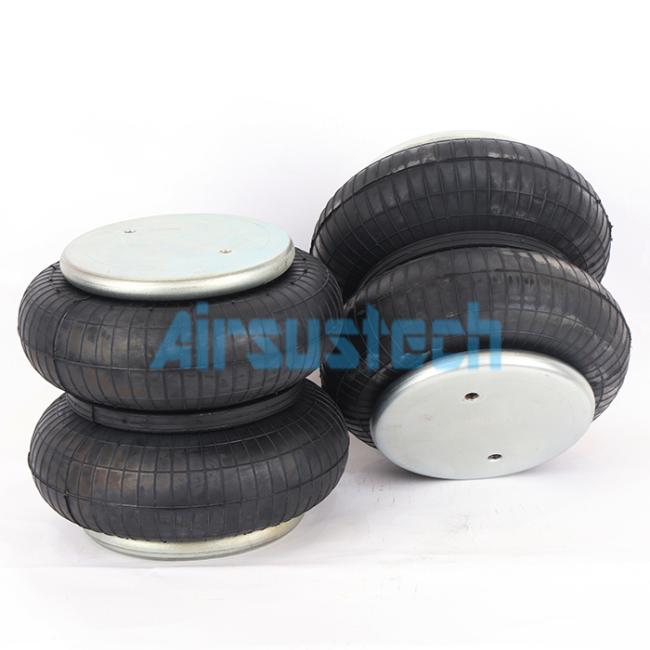

The Related Pictures of 2B6910:
