Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM
Price:
Negotiable
MOQ:
2
Delivery Time:
5-8 Working Days
Brand:
AIRSUSTECH
Product Description
Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM
Product Features
| Top Plate Hole/Stud Qty: 3 |
| Top Plate Dia: 160 |
| Distance Between Threaded Holes: 89 |
| Distance Between Threaded Hole and Air Hole:44.5 |
| Bottom Plate Hole Stud Qyt: 2 |
| Bottom Plate Dia: 160 |
| Natural Outer Diameter: 224mm |
| Max.Outer Diameter: 251mm |
| Air Hole:1/4NPTF |
| Threaded Hole: 3/8-16UNC |
| Min Height: 75 |
| Max Height: 260 |
Alternative Items
| Firestone |
W01-358-6910, W01 358 6910 W013586910, WO1-358-6910 WO1 358 6910, WO13586910 |
Dayton | 3546910 |
| Contitech |
FD 200-19 320, FD 200 19 320 FD20019320, FD 20019 320 FD 200 19320, FD 20019320 |
Leland | Sc2011 |
| Goodyear | 2B9-200/202/216 578423202 |
Navistar | 554783C1 |
| Triangle | 6325/4320 | Hendrickson | S8768/458433 |
| Taurus | KF218-6910 | Ridewell | 1003586910C |
| Brake & Wheel | M3501 | SAF Holland | 57006910 |
| Dina | A812719/AZ812719 | Trailers De | 133128 |
| Tuthill | 1371 | Watson & Chalin | AS-0001/AS-0156G |
Style 274, We Can Supply
Blind nuts, 1/4 NPT
W01-358-6910, W01 358 6910, W013586910, WO1-358-6910, WO1 358 6910, WO13586910
Blind nuts, 1/4 NPT, bumper
W01-358-6911, W01 358 6911, W013586911, WO1-358-6911, WO1 358 6911, WO13586911
Blind nuts, 3/4 NPT
W01-358-6900, W01 358 6900, W013586900, WO1-358-6900, WO1 358 6900, WO13586900
Blind nuts, 3/4 NPT, bumper
W01-358-6901, W01 358 6901, W013586901, WO1-358-6901, WO1 358 6901, WO13586901
Countersunk steel bead rings, 13/4 bolts, nuts, washers
W01-358-6923, W01 358 6923, W013586923, WO1-358-6923, WO1 358 6923, WO13586923
Rubber bellows only
W01-358-0138, W01 358 0138, W013580138, WO1-358-0138, WO1 358 0138, WO13580138
Product Description
- Goodyear air springs 2B9-200, 2B9-216, 2B9-210, 2B9-206, 2B9-201, 2B9-245, 2B9-244, 2B9-240, 2B9-230 and 2B9-225 all have the same bellows number - 578-92-3-202. Although their top plate and bottom plate connections are different, the data sheets of these air springs are quite similar when loading up machines or cars.
- The five air springs, 2B9-201, 2B9-206, 2B9-230, 2B9-244 and 2B9-245, all come equipped with a bumper inside them that is used to limit the minimum stroke of the air spring.
- Goodyear air spring 2B9-240, however, is of the flange rings kind and does not come with a cover plate. The other air springs have a crimped cover plate fitted, which makes them easier to install with machinery.
The Drawing of 2B6910

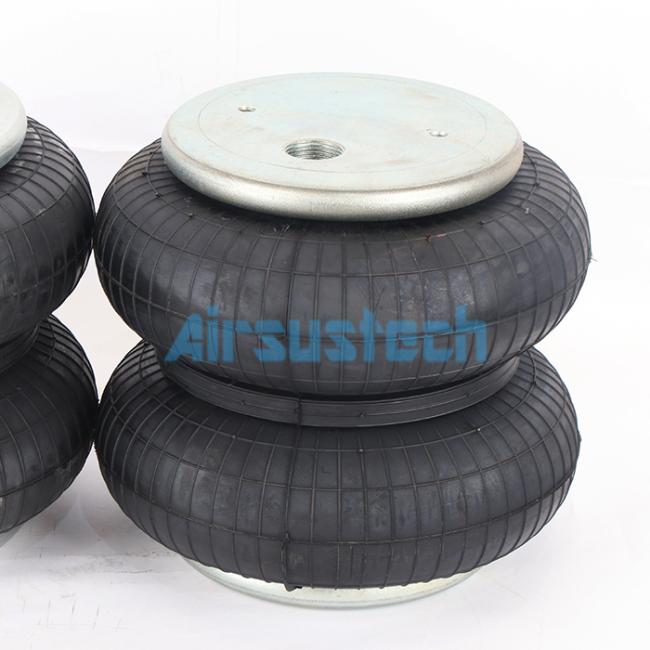

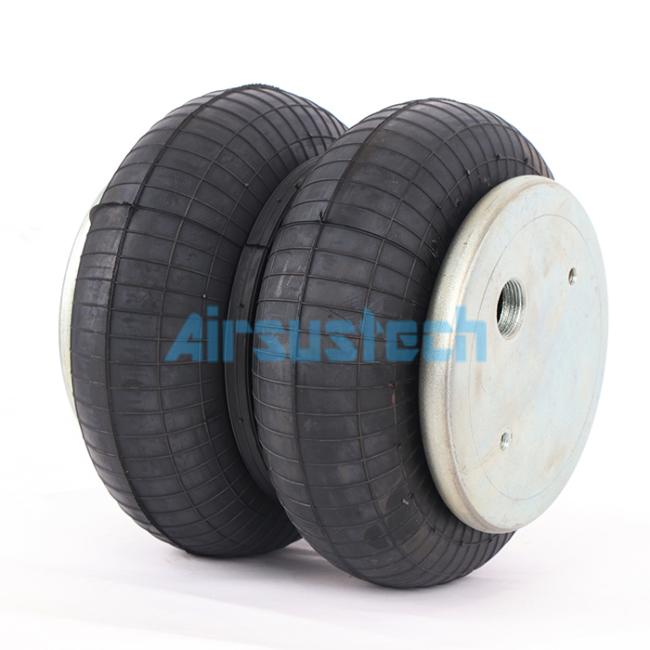

The Real Pictures of 2B6910
