W01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air Suspension
W01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air Suspension
Product Specifications
| Air Hole | G 3/8 |
| Nuts Type | 3×M6 |
| Distance Air Hole Betweeen Nuts | 46.5 MM |
| Top Cover Plate Diameter | 110 MM |
| Bottom Cover Plate Diameter | 110 MM |
| Bellow MAX. Diameter | 125 MM |
| Installation Diameter | 140 MM |
| Minimum Height | 50 MM |
| Maximum Height | 90 MM |
| Pressure Ability | 3-8 Bar |
| Mini Pressure | 0 Bar |
Production Technical Parameters
| Pressure [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Force (Load) [kN] | 1.5 | 2.1 | 2.7 | 3.2 | 3.8 | 4.4 | 0.27 |
| Spring Rate [N/mm] | 112 | 141 | 169 | 198 | 226 | 253 | |
| Natural frequency [Hz] | 4.2 | 4.1 | 4.0 | 3.9 | 3.8 | 3.8 |
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 80 | 1.02 | 1.44 | 1.87 | 2.3 | 2.74 | 3.2 | 0.32 |
| 70 | 1.58 | 2.15 | 2.7 | 3.3 | 3.88 | 4.5 | 0.27 | |
| 60 | 2.17 | 2.89 | 3.62 | 4.34 | 5.08 | 5.85 | 0.22 |
Cross References:
Firestone
W01-R58-4050, W01R584050, W01 R58 4050, WO1-R58-4050, WO1R584050, WO1R584050
Contitech
FS 44-5 DI, FS 44 5 DI, FS445DI, FS44-5 DI, FS44-5DI, FS 445 DI, FS 44-5DI, FS 445DI
NORGREN
PM/31041
PARKER
9109400
DUNLOP PNEURIDE
4 1/2" x 1
DUNLOP SPRINGRIDE
SP2334, SP 2334
Advantages
- Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.
- The actuator also features top and bottom plates that are crimped and coated with a zinc plating. This addition serves to provide excellent corrosion resistance, ensuring that the actuator maintains its high-quality performance over time. With its unique combination of power, adaptability, and durability, our Convolution Air Actuator stands as a dependable choice for any industrial requirement.
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

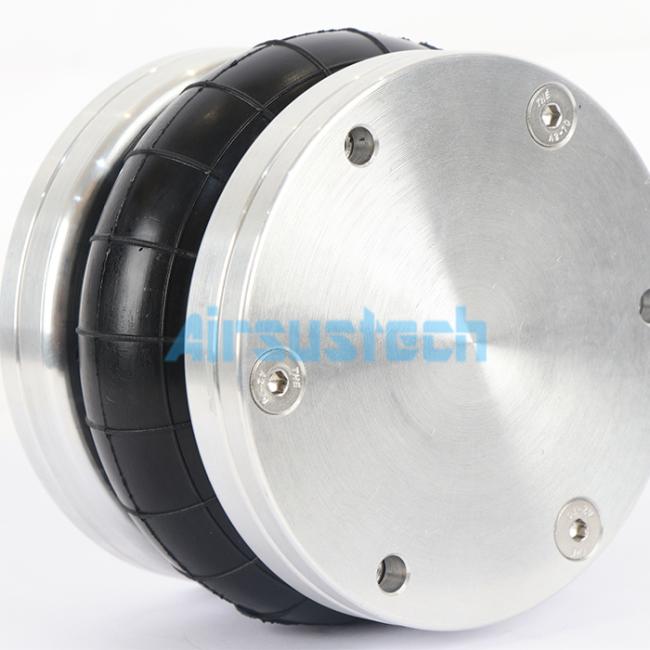

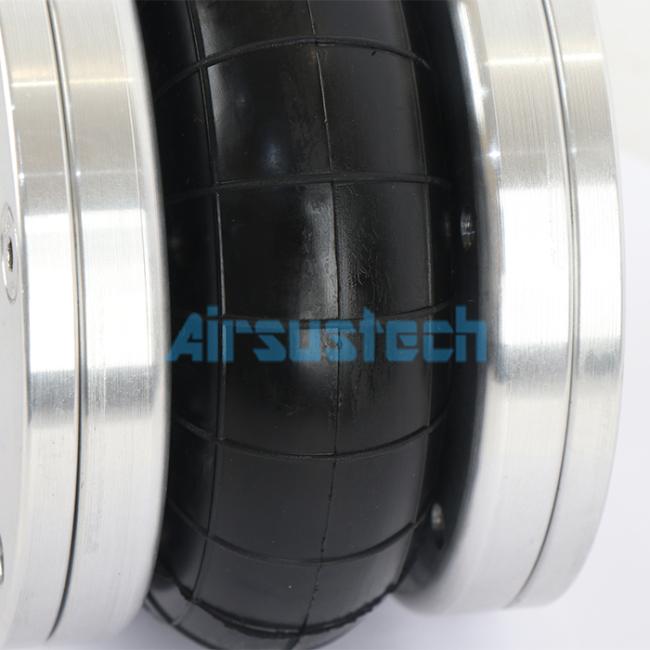

The Real Pictures of 1B4 1/2P:
