Firestone W01-R58-4055 Bellows Style Industrial Air Spring Double Convoluted Air Bag
Firestone W01-R58-4055 Bellows Style Industrial Air Spring Double Convoluted Air Bag
2B 8×2T Specifications
|
Cover Plate Top Cover Plate Diameter: 184 mm Screw Center Distance of Top Cover Plate: 156 mm Bottom Cover Plate Diameter: 184 mm Screw Center Distance of Bottom Cover Plate: 156 mm |
|
Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 4×M10×1.5 Bottom Cover Plate Screw(Nut) Tooth: 4×M10×1.5 |
|
Gas Hole/Air Inlet/Air Fitting Gas Hole: 1/2 BSP |
|
Rubber Bellow Rubber Bellow MAX. Diameter: 215 mm Minimum Height: 72 mm |
2B8×2T Technical Data
Force @ 3 Bar At Height 150mm: 5.9 kN
Force @ 4 Bar At Height 150mm: 8 kN
Force @ 5 Bar At Height 150mm: 10.1 kN
Force @ 6 Bar At Height 150mm: 12.4 kN
Force @ 7 Bar At Height 150mm: 14.7 kN
Force @ 8 Bar At Height 150mm: 16.9 kN
Force @ 5 Bar At Height 100mm: 13.7 kN
Force @ 5 Bar At Height 150mm: 10.1 kN
Force @ 5 Bar At Height 200mm: 6.68 kN
Force @ 5 Bar At Height 220mm: 5.16 kN
Cross References
| Firestone |
W01-R58-4055, W01 R58 4055, W01R584055 WO1-R58-4055, WO1 R58 4055, WO1R584055 |
| Contitech |
FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS |
| Dunlop Springride | SP1490, SP 1490 |
| Dunlop Pneuride | 8''×2, 8'×2, 8×2 |
| Norgren | M/31082, M31082, M 31082 |
| Parker | 9109011 |
|
FRUEHAUF
|
F48054, F 48054, M80A04, M 80A04
|
|
LOHR
|
A06030604, A 06030604
|
|
SAMRO
|
H2500021, H2500188
|
|
SISU TRUCK
|
1531110600
|
Product Core Competitiveness
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.
The Reason Why Choose Us?
- Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
- Respond promptly. We generally reply within one day.
- Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

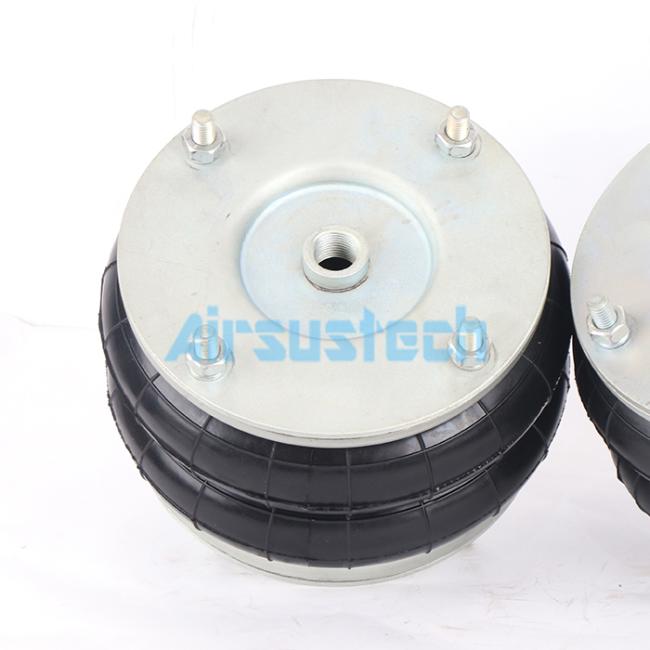

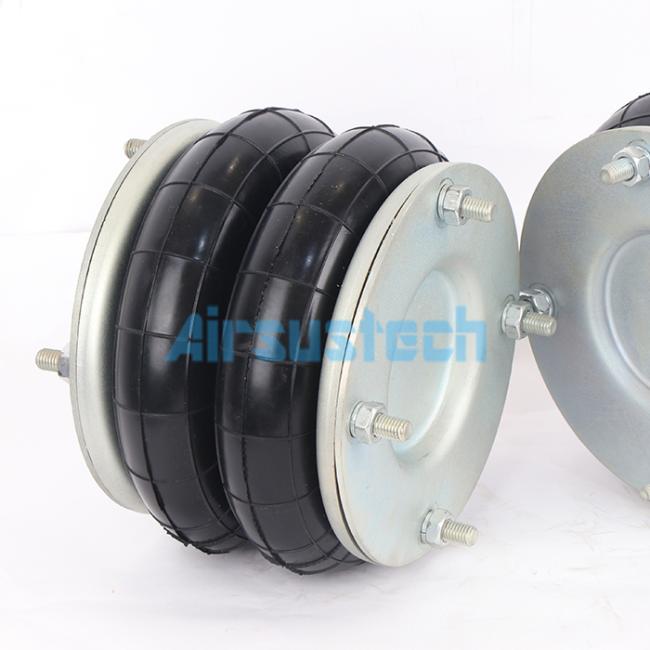

The Real Photos of 2B8×2T
