Firestone W01-M58-6974 Air Spring Actuator Single Convoluted Air Stroke Style 119
Firestone W01-M58-6974 Air Spring Actuator Single Convoluted Air Stroke Style 119
Product Description
AIRSUSTECH actuators have long been used in the industrial market as pneumatic actuators integrated into new and innovative machine designs and as replacement actuators for traditional pneumatic or hydraulic cylinders. Their advantages over traditional cylinders are that they are durable, operate well in corrosive and abrasive environments, are easily tolerant of misalignment, and have a high ratio of stroke to collapsed height.
Product Specifications
|
Cover Plate Top Cover Plate Diameter: 384 mm Screw Center Distance of Top Cover Plate: 350 mm Bottom Cover Plate Diameter: 384 mm Screw Center Distance of Bottom Cover Plate: 350 mm |
|
Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 18*M10*1.5 Bolts Bottom Cover Plate Screw(Nut) Tooth:18*M10*1.5 Bolts |
|
Rubber Bellow Rubber Bellow Max. Diameter: 442 mm Minimum Height: 51 mm Maximum Height: 178 mm |
Product Technical Data
| Dynamic Characteristics at 125 mm Design Height | |||
| Gauge Pressure (Bar) | Load (kN) | Spring Rate (kN/m) | Natural Frequency (Hz) |
| 3 | 26.86 | 599 | 2.35 |
| 4 | 36.82 | 766 | 2.27 |
| 5 | 46.53 | 934 | 2.23 |
| 6 | 57.15 | 1109 | 2.20 |
| 7 | 66.80 | 1269 | 2.17 |
Cross References
|
Firestone W01-358-8158, W01 358 8158, W013588158 WO1-358-8158, WO1 358 8158, WO13588158 W01-358-0119, W01 358 0119, W013580119 WO1-358-0119, WO1 358 0119, WO13580119 W01-M58-6974, W01 358 6974, W013586974 WO1-358-6974, WO1 358 6974, WO13586974 |
|
Contitech FS 960-12 RS, FS 960 12 RS, FS960-12 RS, FS 960-12RS FS960 12 RS, FS 960 12 RS, FS960-12RS, FS96012RS FS 960-12 CI, FS 960 12 CI, FS960-12 CI, FS 960-12CI FS960 12 CI, FS 960 12 CI, FS960-12CIS, FS96012CI |
Two Ply Bellows, Style 119 Air Spring Has Other Models
- Ribbed neck aluminum 119 bead rings (equal spacing), 45 mm bolts, nuts, washers
- Rubber bellows only
- Rolled plate assembly 1/2 blind nuts, 3/4 NPT
- Blower and Motor
- Control Panel
- Conveyor End Stop
- Mountain/Trail Bike
- Delicate Electronic Equipment
- Vibrating Screen

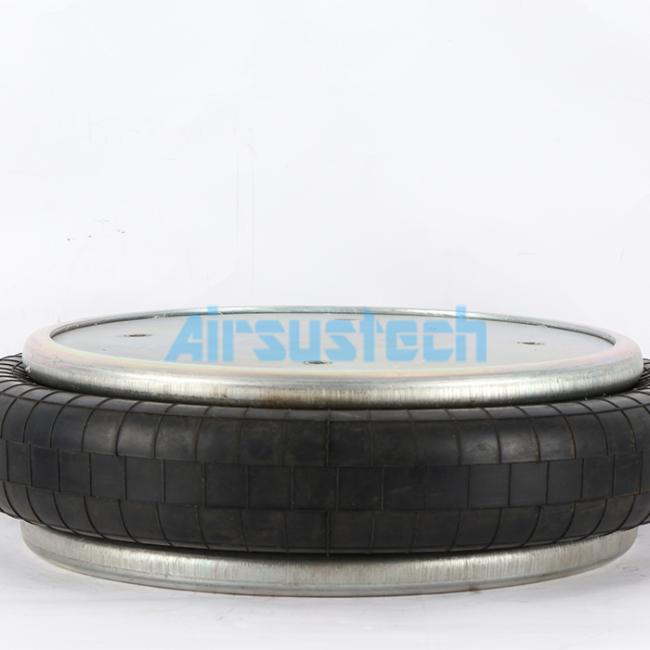

The Real Pictures
