Dina A812719 Air Spring Suspension System MAX. Height 260MM Air Shock Absorption

Product Description

Air springs are pneumatic devices that convert the energy of compressed air into pressure. Air cylinders are mechanical devices that apply force by converting the potential energy of compressed gas into kinetic energy. Pneumatics is a technology that uses compressed air to operate different mechanisms. In the industrial sector, it is used in a variety of processes and applications.

Product Specifications

Cover Plate

Top Cover Plate Diameter: 160 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 160 mm
Screw Center Distance of Bottom Cover Plate: 89 mm

Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC

Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4 NPT

Operation: Gas-filled

Rubber Bellow
Rubber Bellow Max. Diameter: 251 mm
Minimum Height: 75 mm
Maximum Height: 260 mm

Cross References

Dina

A812719, AZ812719, A 812719, AZ 812719, a 812719, a812719, az 812719, az812719

Firestone

W01-358-6910, W01 358 6910, W013586910, WO1-358-6910, WO1 358 6910, WO13586910

Contitech

FD 200-19 320, FD 200 19 320, FD20019320, FD 20019 320, FD 200 19320, FD 20019320

Goodyear

2B9-200, 2B 9-200, 2B9-202, 2B 9-202, 2B9-216, 2B 9-216, 578423202

Triangle

6325, 4320

Taurus

KF218-6910, KF 218-6910, kf 218-6910, kf218-6910

Brake & Wheel

M3501, M 3501, m3501,m 3501

Tuthill

1371

Dayton

3546910

Leland

Sc2011, Sc 2011, sc2011, sc 2011

Navistar

554783C1

Hendrickson

S8768, 458433, S 8768

Ridewell

1003586910C

SAF Holland

57006910

Trailers De

133128

Watson & Chalin

AS-0001, AS-0156G

Style 274 Other OEM Number

• Rubber lining is a retractable inner mold with different shapes formed by the polymer properties of vulcanized rubber and high-strength fiber cloth. It is a product made of vulcanized rubber and fibers. It is compressive, elastic and airtight. After being filled with compressed air, the air bag will expand to meet the design requirements of its cross-section. Under the premise of ensuring quality, if it is used improperly, the service life of the air spring will be greatly shortened.
• Due to its low quality, good comfort and fatigue resistance, the rubber air spring has the advantages of long service life, vibration reduction and noise reduction. Widely used in, industrial machinery, instrumentation and other equipment.
• The production process and production process of the surface fabric of the air spring machine penetrate into the gap of the fabric, and the bonding of the process rubber and the fabric of the rubber rope formed by tight carding. Reduce shrinkage: The elastic deformation of the rubber should be reduced, so that the surface of the pressed rubber wire is smooth and the dimensional change is small. The air spring film required for the production of air springs usually uses a three-roller air spring machine. Through this process, it embodies the protection of the air spring in many ways, thus prolonging its service life.

The Technical Data Drawing of 2B6910

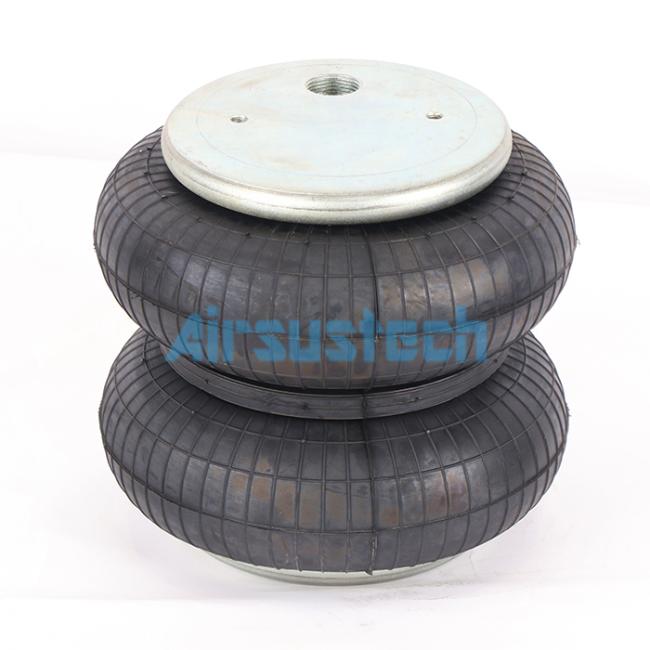

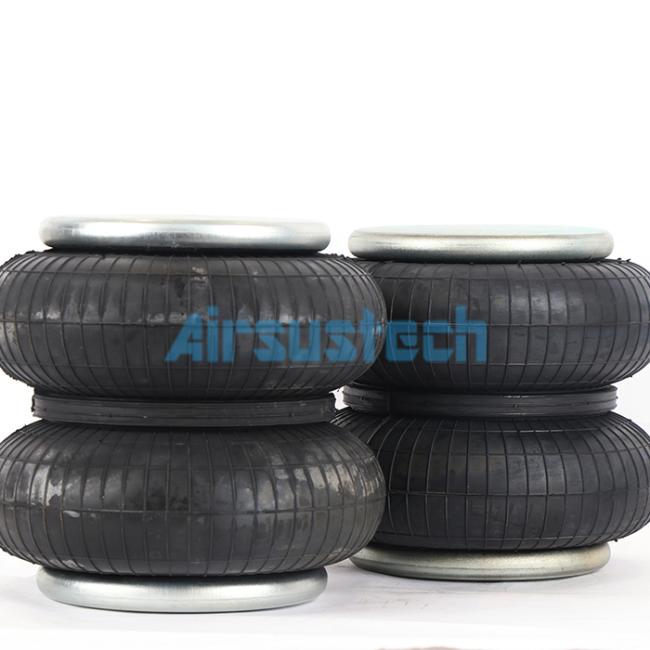

The Real Pictures of 2B6910
