Hendrickson S8768 Air Bag Kits Max Rubber Bellow OD. 9.8 In. Air Spring Suspension
Hendrickson S8768 Air Bag Kits Max Rubber Bellow OD. 9.8 In. Air Spring Suspension
Product Specifications
Cover Plate
Top Cover Plate Diameter: 6.31 in.
Screw Center Distance of Top Cover Plate: 3.50 in.
Bottom Cover Plate Diameter: 6.31 in.
Screw Center Distance of Bottom Cover Plate: 3.50 in.
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4-18 NPTF
Rubber Bellow
Rubber Bellow Max. Diameter: 9.80 in.
Minimum Height: 3.00 in.
Maximum Height: 10.40 in.
Product Technical Data Sheet
| Pressure p | [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.3] |
| Height H [in.] | 9.0 | 884 | 1350 | 1830 | 2320 | 2840 | 390 |
| 8.0 | 1170 | 1760 | 2360 | 2980 | 360 | 350 | |
| 7.0 | 1380 | 2080 | 2790 | 3500 | 4250 | 320 | |
| 6.0 | 1550 | 2340 | 3130 | 3930 | 4750 | 280 | |
| 5.0 | 1690 | 2530 | 3380 | 4240 | 5120 | 230 | |
| 4.0 | 1800 | 2690 | 3590 | 4490 | 5410 | 190 | |
| 3.0 | 1900 | 2820 | 3760 | 4690 | 5670 | 150 |
Cross References OEM Number
| Firestone |
W01-358-6910, W01 358 6910 W013586910, WO1-358-6910 WO1 358 6910, WO13586910 |
Dayton | 3546910 |
| Contitech |
FD 200-19 320, FD 200 19 320 FD20019320, FD 20019 320 FD 200 19320, FD 20019320 |
Leland | Sc2011 |
| Goodyear | 2B9-200, 2B9-202, 2B9-216 578423202 |
Navistar | 554783C1 |
| Triangle | 6325, 4320 | Hendrickson | S8768, 458433 |
| Taurus | KF218-6910, KF 218-6910 | Ridewell | 1003586910C |
| Brake & Wheel | M3501 | SAF Holland | 57006910 |
| Dina | A812719, AZ812719 | Trailers De | 133128 |
| Tuthill | 1371 | Watson & Chalin | AS-0001, AS-0156G |
Firestone Style 274, We Can Supply
|
Blind nuts, 1/4 NPT W01-358-6910, W01 358 6910, W013586910, WO1-358-6910, WO1 358 6910, WO13586910
|
|
Blind nuts, 1/4 NPT, bumper
W01-358-6911, W01 358 6911, W013586911, WO1-358-6911, WO1 358 6911, WO13586911
|
|
Blind nuts, 3/4 NPT
W01-358-6900, W01 358 6900, W013586900, WO1-358-6900, WO1 358 6900, WO13586900
|
|
Blind nuts, 3/4 NPT, bumper
W01-358-6901, W01 358 6901, W013586901, WO1-358-6901, WO1 358 6901, WO13586901
|
|
Countersunk steel bead rings, 13/4 bolts, nuts, washers
W01-358-6923, W01 358 6923, W013586923, WO1-358-6923, WO1 358 6923, WO13586923
|
|
Rubber bellows only
W01-358-0138, W01 358 0138, W013580138, WO1-358-0138, WO1 358 0138, WO13580138
|
Common Applications for Air Bags
- Primary Trailer Suspension Air Springs provide outstanding cargo protection while reducing maintenance problems caused by road shock and 'trailer hop' when empty. Trailers last longer and can be used to haul a wider variety of cargo, reducing expensive empty trailer miles.
- Lift Axle Air Springs allow you to lift the axle without ever leaving the cab. Saves tire wear under empty or partial load conditions and lets you negotiate tight corners with spread tandems.
- Drive Axle Air Springs substantially improve the ride and handling of the tractor, resulting in greater driver comfort and safety, less tractor maintenance, longer tire wear and higher trade-in value. They require little maintenance and last more than twice as long as steel springs.
- Front Axle Air Springs significantly improve steering and handling while improving tire wear and reducing problems caused by cab vibration.
- Cab Mount Air Springs eliminate most problems experienced with standard cab mounts and help reduce damaging cab vibration.

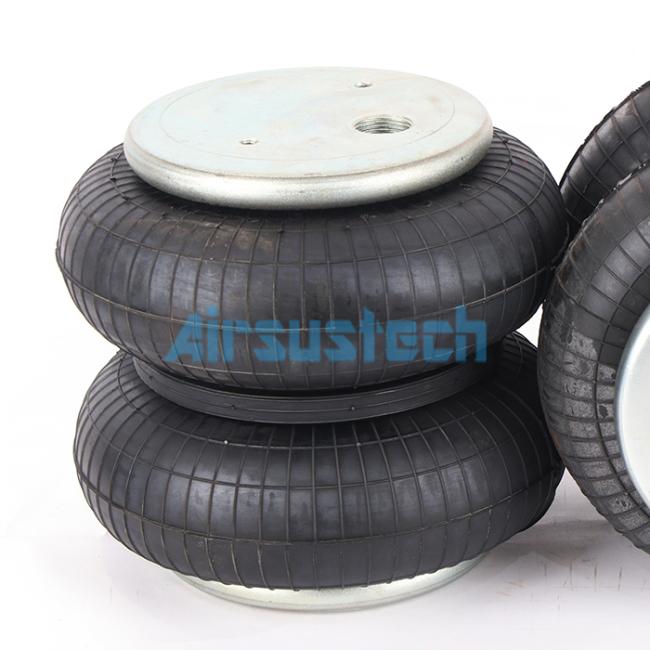

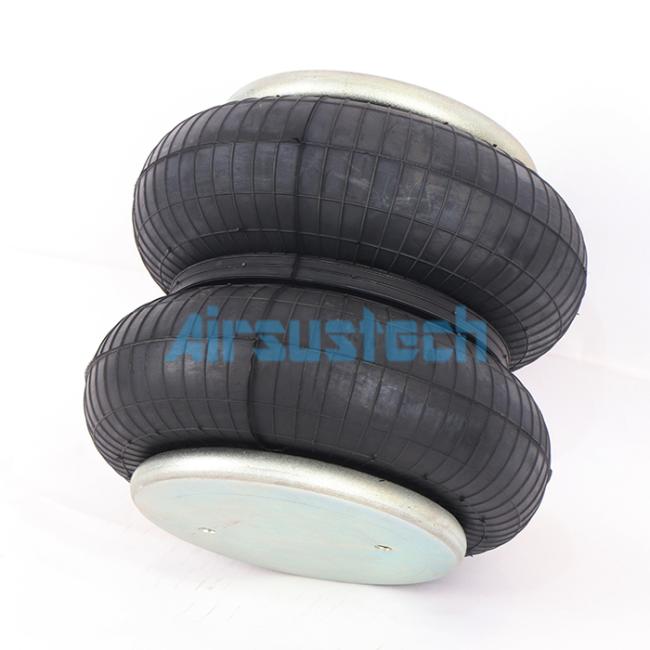

The Real Pictures of 2B6910
