Ridewell 1003586910C Double Convoluted Air Actuator For Heavy Truck Part
Ridewell 1003586910C Double Convoluted Air Actuator For Heavy Truck Part
Product Specifications
| Cover Plate Top Cover Plate Diameter: 6.31 in. Screw Center Distance of Top Cover Plate: 3.50 in. Bottom Cover Plate Diameter: 6.31 in. Screw Center Distance of Bottom Cover Plate: 3.50 in. |
| Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC |
| Gas Hole/Air Inlet/Air Fitting Gas Hole: 1/4-18 NPTF |
| Rubber Bellow Rubber Bellow Max. Diameter: 9.80 in. Minimum Height: 3.00 in. Maximum Height: 10.40 in. |
Product Technical Data Sheet
Force @ 40 psi at height 6.0 in. (pounds): 1550
Force @ 60 psi at height 6.0 in. (pounds): 2340
Force @ 80 psi at height 6.0 in. (pounds): 3130
Force @ 100 psi at height 6.0 in. (pounds): 3930
Force @ 120 psi at height 6.0 in. (pounds): 4750
Force @ 80 psi at 9.0 in. (pounds): 1830
Force @ 80 psi at 8.0 in. (pounds): 2360
Force @ 80 psi at 7.0 in. (pounds): 2790
Force @ 80 psi at 6.0 in. (pounds): 3130
Force @ 80 psi at 5.0 in. (pounds): 3380
Force @ 80 psi at 4.0 in. (pounds): 3590
Force @ 80 psi at 3.0 in. (pounds): 3760
Alternative Items OEM Number
| Ridewell | 1003586910C |
| Firestone |
W01-358-6910, W01 358 6910, W013586910 WO1-358-6910, WO1 358 6910, WO13586910 |
| Contitech |
FD 200-19 320, FD 200 19 320, FD20019320 FD 20019 320, FD 200 19320, FD 20019320 |
| Goodyear | 2B9-200, 2B9-202, 2B9-216, 578423202 |
| Triangle | 6325, 4320 |
| Taurus | KF218-6910, KF 218-6910 |
| Brake & Wheel | M3501 |
| Dina | A812719, AZ812719 |
| Tuthill | 1371 |
| Dayton | 3546910 |
| Leland | Sc2011 |
| Navistar | 554783C1 |
| Hendrickson | S8768, 458433 |
| SAF Holland | 57006910 |
| Trailers De | 133128 |
| Watson & Chalin | AS-0001, AS-0156G |
Applications
- Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
- Press equipment and part extraction, where air springs are used as actuators.
- Test equipment and motion simulators , where air springs are used as vibration isolators and to reduce shock and noise.
- Precision equipment and machinery, such as printing presses, where air springs are used for vibration isolation and leveling.
- Textile machinery, where air springs are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
- Paper mill machinery, where air springs are used for suspension, levelling and vibration isolation.
- Cheese and dairy industry machines.
FAQ
| Q: How to order ? A: Step 1, please tell us what model and quantity you need; Step 2, then we will make a PI for you to confirm the order details; Step 3, when we confirmed everything, you can arrange the payment; Step 4, finally we deliver the goods within the stipulated time. |
| Q: After-sales service? A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service. |
| Q: Is the sample available? A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. |
| Q: What is your advantage? A: (1) High quality - Natural rubber. (2) Fast delivery - Stock sales. (3) Best service - 24 hours online. |
| Q: How do you guarantee quality? A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc. |

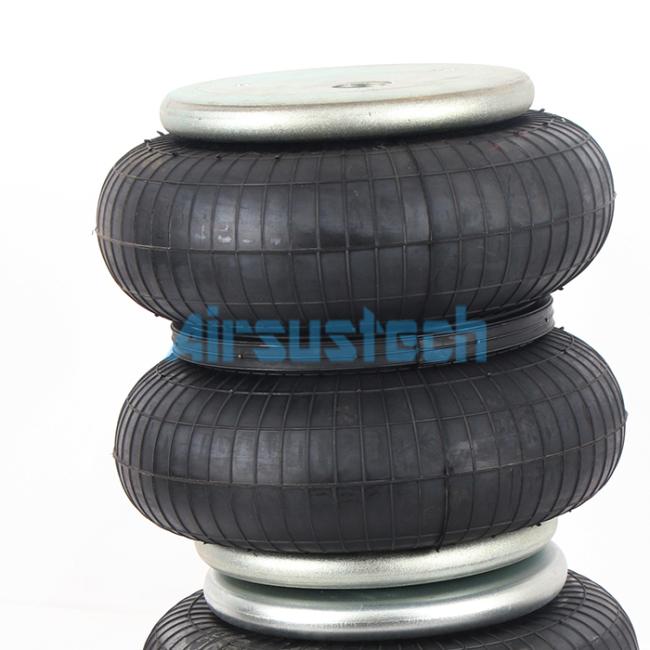

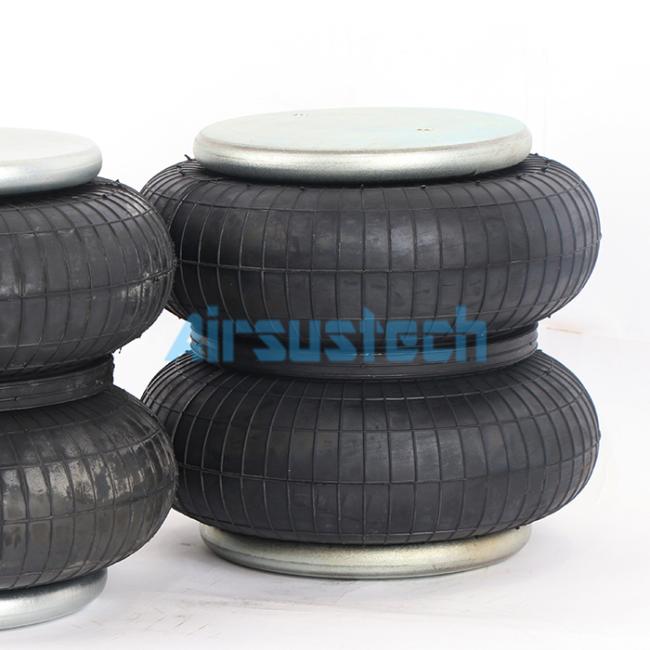

The Related Pictures of 2B6910
| 554783C1 |
