Product Description
Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. With their proven design, fabric-reinforced neoprene or natural rubber flex member construction, and corrosion-resistant end retainers, air springs offer superior quality and performance. As isolators, air springs effectively reduce the harmful effects of vibration. They can simultaneously isolate vibration and adjust load height, allowing for consistent vibration isolation at varying loads.
3H7823 Specifications
Height
MAX. Height: 260 mm
MIN. Height: 75 mm
Stroke Height: 185 mm
Cover Plate
Top Cover Plate Width: 4.6 in.
Bottom Cover Plate Width: 18 in.
Hole/Stud
Hole/Stud Qty: 24 on One Plate
Screw Center Distance: 16.50 in.
Bolts Type: 3/8-24
Rubber Bellows
Natural Diameter: 20.5 in.
Bellow Max. Diameter: 20.5 in.
Triple Convolutions
3H7823 Technical Parameters
| Force Table (Use for Airstroke actuator design) | ||||||
|
Assembly Height (in.) |
Volume @100 PSIG (in3) |
Pounds Force | ||||
| @20 PSIG | @40 PSIG | @60 PSIG | @80 PSIG | @100 PSIG | ||
| 15.0 | 3,470 | 3,220 | 6,640 | 10,280 | 13,960 | 17,740 |
| 13.0 | 3,073 | 3,960 | 8,010 | 12,030 | 16,270 | 20,580 |
| 11.0 | 2,632 | 4,330 | 8,910 | 13,420 | 18,030 | 22,770 |
| 9.0 | 2,150 | 4,740 | 9,610 | 14,450 | 19,410 | 24,420 |
| 7.0 | 1,639 | 5,030 | 10,120 | 15,410 | 20,770 | 26,200 |
| 5.0 | 1,093 | 5,610 | 11,140 | 16,590 | 22,380 | 28,170 |
Firetone Style 323, We Can Supply
|
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
|
W01-358-7823, W01 358 7823, W013587823
WO1-358-7823, WO1 358 7823, WO13587823
|
|
Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT
|
W01-358-7274, W01 358 7274, W013587274
WO1-358-7274, WO1 358 7274, WO13587274
|
|
Rubber bellows only
|
W01-358-7921, W01 358 7921, W013587921
WO1-358-7921, WO1 358 7921, WO13587921
|
Firestone Style 324 With High Strength Bellows
|
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
|
W01-358-7829, W01 358 7829, W013587829
WO1-358-7829, WO1 358 7829, WO13587829
|
|
Rubber bellows only
|
W01-358-0324, W01 358 0324, W013580324
WO1-358-0324, WO1 358 0324, WO13580324
|
Applications
- Pulp and paper industry
- Lumber mills
- Lift tables
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packaging

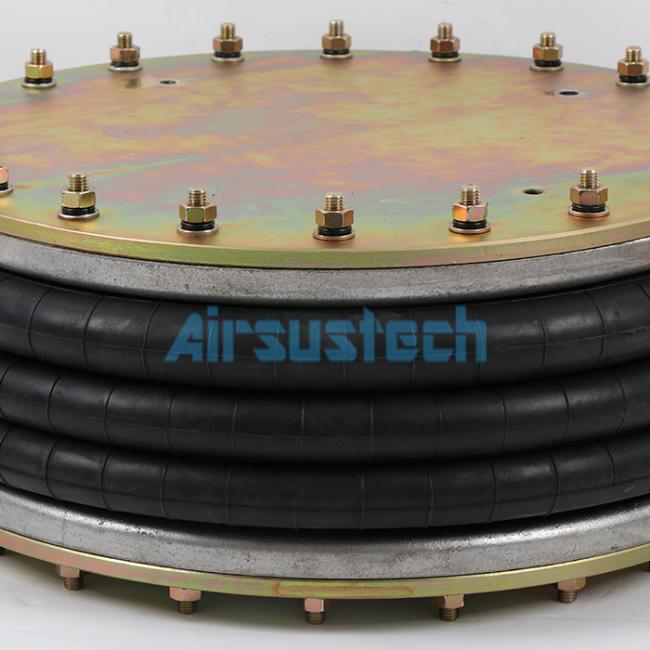

The Related Pictures of 3H7823
