Product Description
Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.
Product Specifications
- Cover Plate
Top Cover Plate Diameter: 260 MM
Screw Center Distance of Top Cover Plate: 232 MM
Bottom Cover Plate Diameter: 260 MM
Screw Center Distance of Bottom Cover Plate: 232 MM
- Gas Hole/Air Inlet/Air Fitting
Gas Hole: G 3/4
- Rubber Bellow
Rubber Bellow Natural Diameter: 305 MM
Minimum Height: 51 MM
Maximum Height: 180 MM
Other Air Spring Technical Data
| Model | M/31061 | M/31062 | M/31081 | M/31082 | M/31101 | M/31102 | M/31103 | M/31121 | M/31122 |
| Cylinder [inch] | 6'' | 6'' | 8'' | 8'' | 10'' | 10'' | 10'' | 12'' | 12'' |
| Port size | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 |
| Nominal (inch)×convolutions | 6''×1 | 6''×2 | 8''×1 | 8''×2 | 10''×1 | 10''×2 | 10''×3 | 12''×1 | 12''×2 |
| Stroke [mm] | 55 | 115 | 75 | 175 | 100 | 225 | 330 | 100 | 225 |
| Installation height min [mm] | 50 | 75 | 50 | 75 | 50 | 75 | 100 | 50 | 75 |
| Recommed max working height [mm] | 95 | 170 | 115 | 220 | 135 | 245 | 350 | 135 | 245 |
| Installation height max [mm] | 105 | 190 | 130 | 250 | 150 | 300 | 430 | 150 | 300 |
| Retracting force to rech min height [N] | 140 | 220 | 220 | 350 | 150 | 150 | 250 | 200 | 250 |
AIRSUSTECH Truck Air Springs Provide Substantial Performance Benefits
- High degree of comfort and can be installed in small spaces
- Fuel economy and payload increase thanks to their lightweight design
- Robustness across an extended operating temperature range
- Continental Air Springs for Trailer / Semitrailer Applications
- Air suspension on trailers provides protection for both payload and trailer body, including mounted equipment.
- Trailer air springs further contribute to reduced road wear thanks to their low natural frequency, reduced unsprung axle mass and reduced wheel load fluctuations. This aspect is of growing importance as traffic volume is increasing.
- As a rule, each axle has two air springs. In multi-axle combinations, one axle is frequently provided with an axle-lifting device to reduce tire wear on empty runs or when the vehicle is only partially loaded. Convoluted air springs are normally used for raising and lowering lift axles.
FAQ
|
Q: How to guarantee your after sales service?
Q: What will you do for customer's complaint?
Q: How do you guarantee quality? |

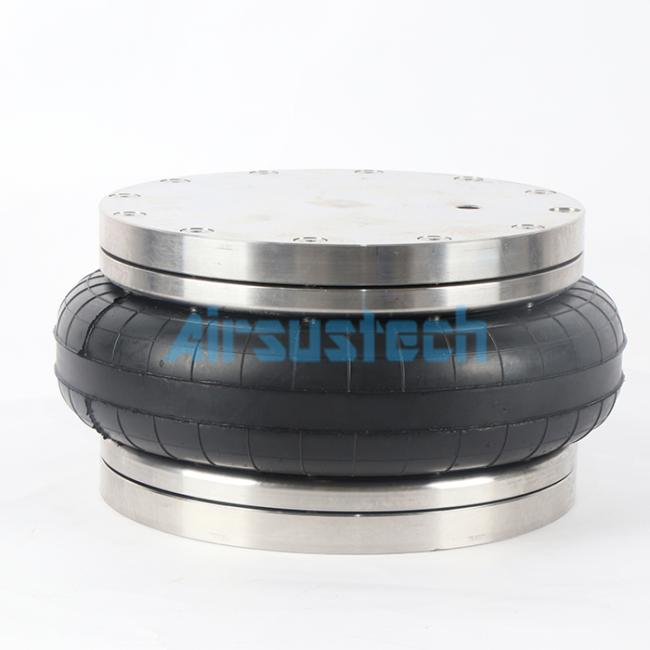

The Real Pictures of 1B12×1P
