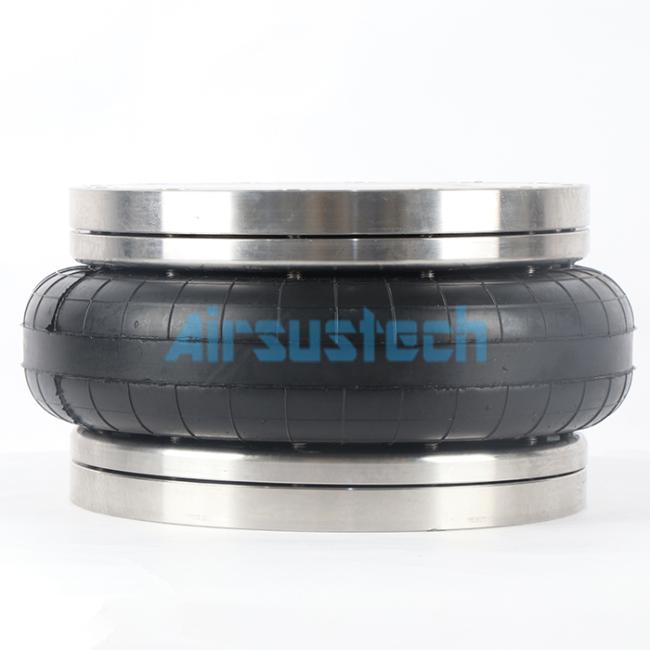

DUNLOP Pneumatic Air Spring SP1540 Single Convoluted For Air Lift Suspension
DUNLOP Pneumatic Air Spring SP1540 Single Convoluted For Air Lift Suspension
Product Description
The actuator also features top and bottom plates that are crimped and coated with a zinc plating. This addition serves to provide excellent corrosion resistance, ensuring that the actuator maintains its high-quality performance over time. With its unique combination of power, adaptability, and durability, our Convolution Air Actuator stands as a dependable choice for any industrial requirement.
Product Information
| Top Cover Plate Diameter | 260 MM |
| Screw Center Distance of Top Cover Plate | 232 MM |
| Bottom Cover Plate Diameter | 260 MM |
| Screw Center Distance of Bottom Cover Plate | 232 MM |
| Gas Hole | G 3/4 |
| Minimum Height | 51 MM |
| Maximum Height | 180 MM |
Other Air Spring Technical Data
| Model | M/31061 | M/31062 | M/31081 | M/31082 | M/31101 | M/31102 | M/31103 | M/31121 | M/31122 |
| Cylinder [inch] | 6'' | 6'' | 8'' | 8'' | 10'' | 10'' | 10'' | 12'' | 12'' |
| Port size | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 |
| Nominal (inch)×convolutions | 6''×1 | 6''×2 | 8''×1 | 8''×2 | 10''×1 | 10''×2 | 10''×3 | 12''×1 | 12''×2 |
| Stroke [mm] | 55 | 115 | 75 | 175 | 100 | 225 | 330 | 100 | 225 |
| Installation height min [mm] | 50 | 75 | 50 | 75 | 50 | 75 | 100 | 50 | 75 |
| Recommed max working height [mm] | 95 | 170 | 115 | 220 | 135 | 245 | 350 | 135 | 245 |
| Installation height max [mm] | 105 | 190 | 130 | 250 | 150 | 300 | 430 | 150 | 300 |
| Retracting force to rech min height [N] | 140 | 220 | 220 | 350 | 150 | 150 | 250 | 200 | 250 |
Applications
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Support and Services
- The Suspension Air Springs product technical support and services include:
- Expert troubleshooting assistance to diagnose and resolve technical issues
- Guidance on proper installation and maintenance procedures
- Product documentation, including user manuals and technical specifications
- Product training and education for customers and service technicians
- Warranty and repair services, including replacement parts and exchange programs
- Customer support for urgent technical issues or service needs
The Real Pictures of 1B12×1P
