FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
Product Information
- Cover Plate
Top Cover Plate Diameter: 135 mm
Screw Center Distance of Top Cover Plate: 53 mm
Bottom Cover Plate Diameter: 135 mm
Screw Center Distance of Bottom Cover Plate: 53 mm
Distance Between Screw and Air Hole: 26 mm
- Gas Hole/Air Inlet/Air Fitting
Gas Hole: G 3/4
- Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25
- Rubber Bellow
Rubber Bellow Max Dia: 215 mm
Minimum Height: 50 mm
Maximum Height: 115 mm
Alternative Items
|
Contitech FS 120-9, FS 120 9, FS120-9, FS1209, FS 1209 fs 120-9, FS 120 9, fs 120-9, fs 1209, fs 1209 |
|
Firestone W01-M58-6165, W01 M58 6165, W01M586165 WO1-M58-6165, WO1 M58 6165, WO1M586165 W01-M58-6166, W01 M58 6166, W01M586166 WO1-M58-6166, WO1 M58 6166, WO1M586166 |
|
Dunlop 8''x1, 8'x1, 8x1, S08101, S 08101, S08100, S 08100 |
|
Bosch 822419003, 822419008 |
|
Festo EB-215-80, EB 215 80, EB21580, EB215 80 |
|
Norgren PM/31081, PM 31081, PM21081 |
|
Weforma WBE 300-E1, WBE 300-E1, WBE300E1, WBE300-E1 WBE 300-E2, WBE 300-E2, WBE300E2, WBE300-E2 |
|
Airtech 140293, 111003, 1B-190FB, 1B 190FB, 1B190FB |
|
Megatech 1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8 |
Storage Precautions
1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius
Our Suspension Air Springs provide technical support and services forour customers. We have a team of experienced professionals to ensure that our products meet the highest standards of quality and performance. Our team is available to answer any questions or concerns you may have about our products. We also offer installation and repair services for our Suspension Air Springs. In addition, we provide a full range of spare parts and accessories to ensure that your product is always operating at its best.

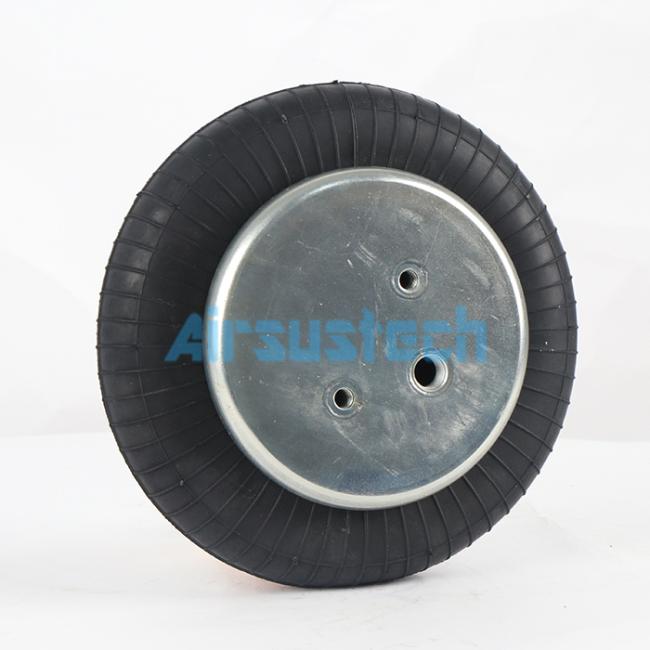

1B1209 Real Pictures
