8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
Product Information
| Top Cover Plate Diameter: 135 mm |
| Screw Center Distance of Top Cover Plate: 53 mm |
| Bottom Cover Plate Diameter: 135 mm |
| Screw Center Distance of Bottom Cover Plate: 53 mm |
| Distance Between Screw and Air Hole: 26 mm |
| Gas Hole: G 3/4 |
| Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25 |
| Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25 |
| Rubber Bellow Max Dia: 215 mm |
| Maximum Height: 115 mm |
| Minimum Height: 50 mm |
Alternative Items
|
Contitech FS 120-9, FS 120 9, FS120-9, FS1209, FS 1209 fs 120-9, FS 120 9, fs 120-9, fs 1209, fs 1209 |
|
Firestone W01-M58-6165, W01 M58 6165, W01M586165 WO1-M58-6165, WO1 M58 6165, WO1M586165 W01-M58-6166, W01 M58 6166, W01M586166 WO1-M58-6166, WO1 M58 6166, WO1M586166 |
|
Dunlop 8''x1, 8'x1, 8x1, S08101, S 08101, S08100, S 08100 |
|
Bosch 822419003, 822419008 |
|
Festo EB-215-80, EB 215 80, EB21580, EB215 80 |
|
Norgren PM/31081, PM 31081, PM21081 |
|
Weforma WBE 300-E1, WBE 300-E1, WBE300E1, WBE300-E1 WBE 300-E2, WBE 300-E2, WBE300E2, WBE300-E2 |
|
Airtech 140293, 111003, 1B-190FB, 1B 190FB, 1B190FB |
|
Megatech 1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8 |
What Are The Advantages of Our Shock Absorbers
- Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
- Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
- High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability
Air Spring Should Pay Attention To In The Application
1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.

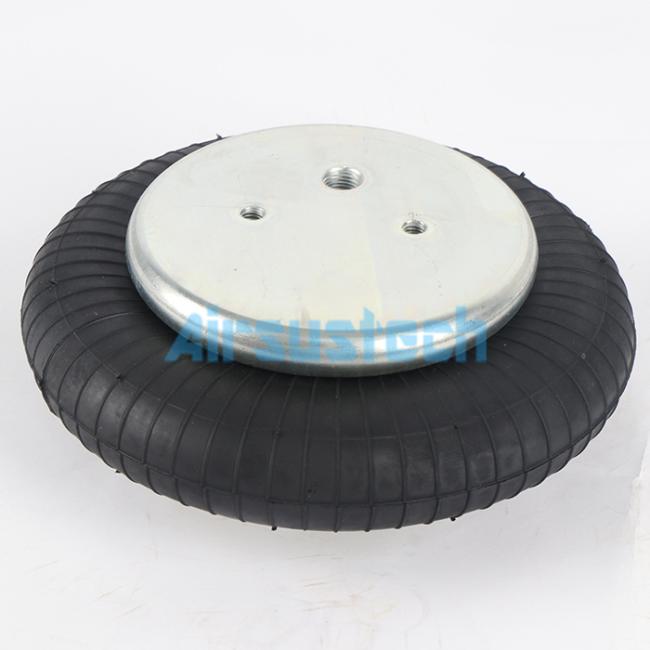

1B1209 Real Pictures
