Yokohama S-120-2 Air Spring Cross AIRSUSTECH F-120-2 Double Convoluted Air Bellow
Yokohama S-120-2 Air Spring Cross AIRSUSTECH F-120-2 Double Convoluted Air Bellow
Product Description
Air bellows are the preferred solution for applications that necessitate short stroke, high-thrust single-acting actuators. These components are expertly crafted from fabric-reinforced synthetic rubber, with convolutions tailored to exact stroke and model specifications. Their cutting-edge design eliminates the need for reciprocating metal parts, providing a frictionless thrust that surpasses the capabilities of conventional pneumatic cylinders. Functioning exclusively as single-acting devices, these bellows leverage their inherent spring action for the return stroke, with additional support from the applied load for peak performance. The air bellows' sleek and efficient construction guarantees an impressively long service life with minimal maintenance requirements, even under rigorous operational circumstances. Their versatility makes them an ideal choice for vibration applications, including high-frequency device feeders, where their performance is unmatched.
Product Specifications
| Design Height | 98 mm |
| Maximum Height | 148 mm |
| Minimum Height | 53 mm |
| Commonly Maximum Stroke | ±53 mm |
| The Largest Diameter When Compressed | 180 mm |
S-120items Detailed Parameter Table
| AIRSUSTECH NO. | Reference NO. | Height H [mm] |
Commonly Maximum Stroke [mm] |
The largest Dia When Compressed [mm] |
||
|
Design Height [mm] |
Max Height [mm] |
Min Height [mm] |
||||
| F-120-4 | S-120-4 | 206 | 306 | 111 | ±70 | 180 |
| F-120-3 | S-120-3 | 152 | 227 | 82 | ±53 | 180 |
| F-120-2 | S-120-2 | 98 | 148 | 53 | ±35 | 180 |
| AIRSUSTECH NO. | Reference NO. |
Standard Height, Internal Pressure 0.19 Mpa When The General Value
|
Using Max Internal Pressure [Mpa] | Internal Pressure [Mpa] | ||||
| Effective Area [CM2] | Volume [L] | Load [kN] | Dynamic Spring Parameters [N/Min] | Vibration Frequency [Hz] | ||||
| F-120-4 | S-120-4 | 113 | 3.4 | 5.2 | 69 | 1.8 | 0.88 | 2.9-3.9 |
| F-120-3 | S-120-3 | 113 | 2.1 | 5.2 | 98 | 2.2 | 0.88 | 2.9-3.9 |
| F-120-2 | S-120-2 | 113 | 1.25 | 5.2 | 157 | 2.7 | 0.88 | 2.9-3.9 |
| F-100-4 | S-100-4 | 79 | 1.95 | 3.9 | 59 | 1.9 | 0.88 | 2.9-3.9 |
| F-90-3 | S-90-3 | 79 | 1.4 | 3.9 | 78 | 2.2 | 0.88 | 2.9-3.9 |
| F-90-2 | S-90-2 | 79 | 0.85 | 3.9 | 118 | 2.7 | 0.88 | 2.9-3.9 |
| F-90-1 | S-90-1 | 63.5 | 0.5 | 3.1 | 103 | 2.9 | 0.88 | 3.9-4.9 |
Product Applications
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foll stamping press
FAQ
Q: Can you produce according to samples?
A: Yes, it can be developed according to your samples or technical drawings.
Q: Do you test all goods before delivery?
A: Yes, 100% tested before delivery.
Q: How do you make our business long-term and good relationship?
A: 1. Good quality and competitive prices ensure our customers benefit;
2.We respect every customer as our friend, we sincerely do business and make friends with them, no matter where they come from.

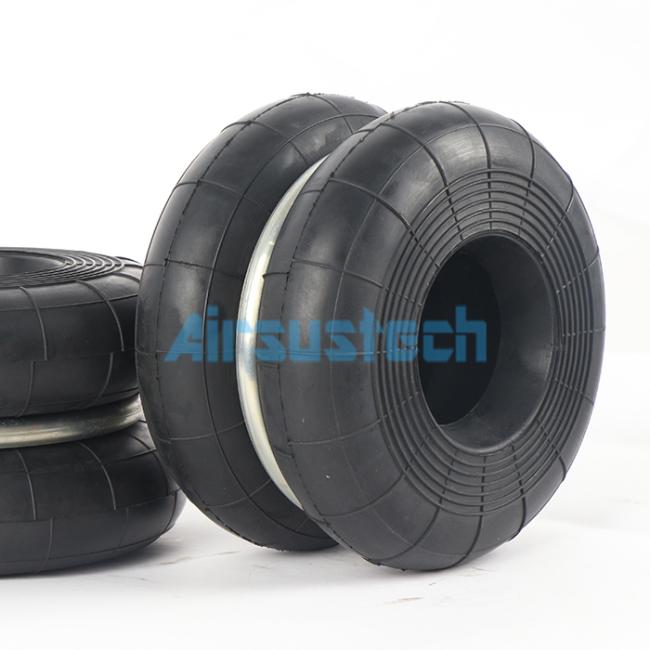

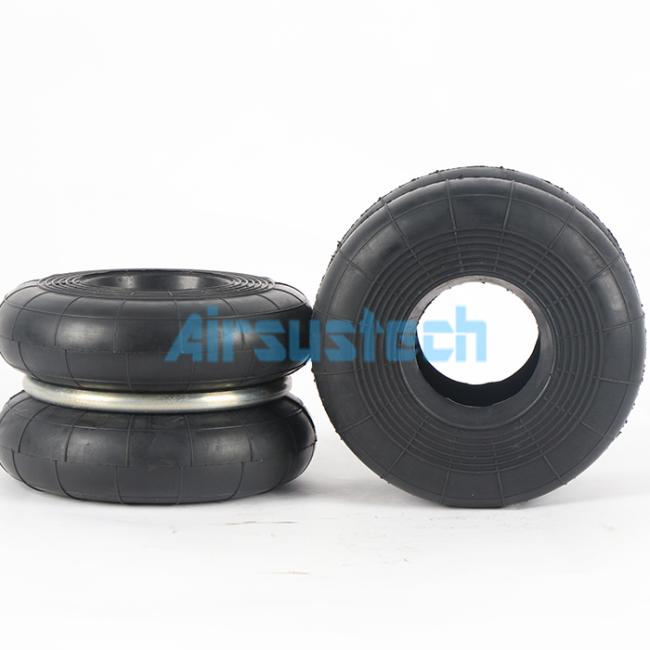

F-120-2 Air Spring Detailed Pictures
