AIRSUSTECH 2B7070 Air Suspension Cross Festo 36491 For Industrial Machine
Price:
Negotiable
MOQ:
5
Delivery Time:
5-8 Working Days
Brand:
AIRSUSTECH
Product Description
AIRSUSTECH 2B7070 Air Suspension Cross Festo 36491 For Industrial Machine
Product Description
AIRSUSTECH rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.
Product Specifications
| Top Cover Plate Diameter | 105 MM |
| Screw Center Distance of Top Cover Plate | 44.5 MM |
| Bottom Cover Plate Diameter | 105 MM |
| Screw Center Distance of Bottom Cover Plate | 44.5 MM |
| Gas Hole | G 1/4 |
| Rubber Bellow Natural Diameter | 146 MM |
| Design Height | 160MM |
Product Techniacal Data
Force F[kN]
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
| Height H[mm] | 180 | 1.6 | 2.3 | 2.9 | 3.5 | 4.1 | 4.7 |
| 160 | 2.4 | 3.2 | 3.9 | 4.7 | 5.6 | 6.4 | |
| 140 | 2.9 | 3.9 | 4.8 | 5.8 | 6.8 | 7.8 | |
| 120 | 3.4 | 4.5 | 5.7 | 6.8 | 7.9 | 9.2 | |
| 100 | 3.9 | 5.2 | 6.5 | 7.8 | 9.1 | 10.4 | |
| 80 | 4.3 | 5.7 | 7.1 | 8.5 | 10.0 | 11.4 |
Other OEM Number
| Festo 36 491, 36494 |
| Festo EB-165-125, EB 165 125, EB165125 |
Support and Services
- The Suspension Air Springs product technical support and services include:
- Expert troubleshooting assistance to diagnose and resolve technical issues
- Guidance on proper installation and maintenance procedures
- Product documentation, including user manuals and technical specifications
- Product training and education for customers and service technicians
- Warranty and repair services, including replacement parts and exchange programs
- Customer support for urgent technical issues or service needs

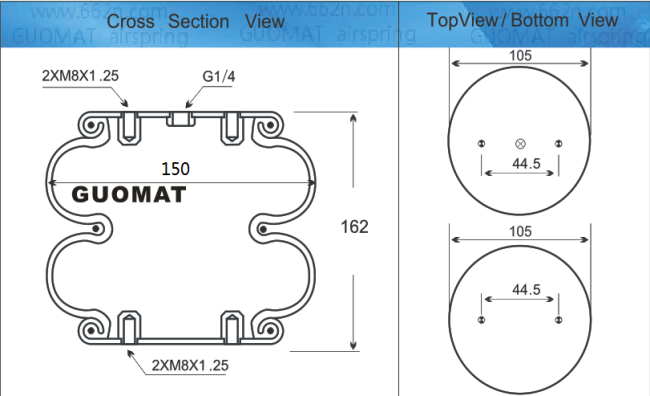

The Drawing And Real Pictures of 2B7070
