Dunlop Pneuride 6" x 2 Air Suspension Spring Aluminium Ends Air Bellow Shock
Dunlop Pneuride 6" x 2 Air Suspension Spring Aluminium Ends Air Bellow Shock
2B6×2P Specification
| Bottom Plate Alignment | Parallel |
| Bottom Plate Center To Center Diameter | # |
| Bottom Plate Diameter | 152.4 mm |
| Bottom Plate Hole Quantity | 4 |
| Bottom Plate Type | Aluminum |
| Top Plate Alignment | Parallel |
| Top Plate Center To Center Diameter | # |
| Top Plate Diameter | 152.4 mm |
| Top Plate Hole Quantity | 5 |
| Top Plate Type | Aluminum |
| Bellow Maximum Diameter | 168 mm |
| Design Height | 140 mm |
| Maximum Height | 215 mm |
| Minimum Height | 75 mm |
| Bellows Type | Double Convoluted |
2B6×2P Refer No.
- Dunlop Pneuride Air Spring
6" x 2, 6' x 2, 6 x 2
- Firestone Air Spring
W01-R58-4070, W01 R58 4070, W01R584070
WO1-R58-4070, WO1 R58 4070, WO1R584070
- Dunlop Springride Air Spring
SP2917, SP 2917
- Contitech Air Spring
FD76-14 DI, FD 76-14 DI, FD76 14 DI
FD 76-14DI, FD76-14DI, FD7614DI
- Parke Air Spring
9109001A
- Norgren Air Spring
PM/31062, PM31062, PM 31062
Dunlop Other Type Air Spring
| AIRSUSTECH | NORGREN | GUOMAT | NORGREN |
| 4.5x1 | PM/31041 | 4.5x2 | PM/31042 |
| 4.5x3 | PM/31043 | 6x1(Al) | PM/31061 |
| 6x1(Steel) | M/31061 | 6x2(Al) | PM/31062 |
| 6x2(Steel) | M/31062 | 6x3(Al) | PM/31063 |
| 6x3(Steel) | M/31063 | 8x1 | M/31081 |
| 8x2 | M/31082 | 8x3 | M/31083 |
| 10x1 | M/31101 | 10x2 | M/31102 |
| 10x3 | M/31103 | 12x1 | M/31121 |
| 12x2 | M/31122 | 12x3 | M/31123 |
| 14.5x1 | M/31141 | 14.5X2 | M/31142 |
| 14.5x3 | M/31143 | 16x1 | M/31161 |
| 16x2 | M/31162 | 16x3 | M/31163 |
| 21.5x2 | M/31212 | 26x2 | M/31262 |
|
Q: What is your advantage?
Q: Can you print my logo on inner box and outer box?
Q: What's your advantage?
Q: What is your sample policy? |

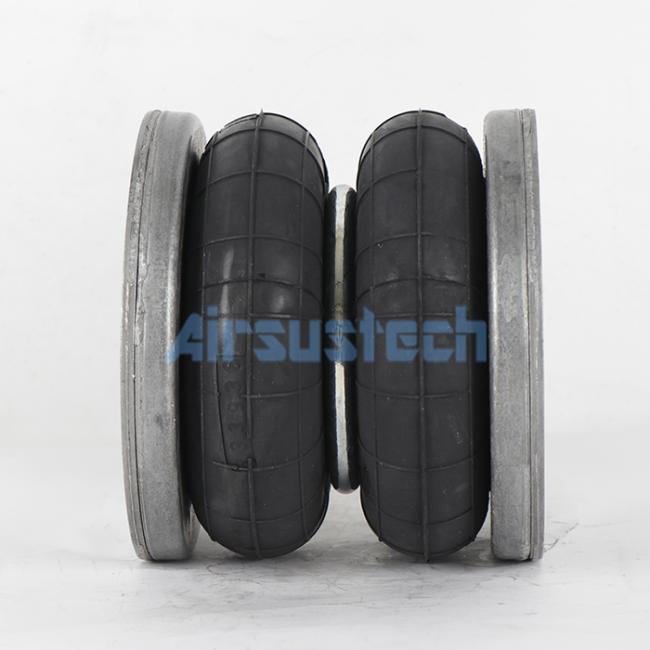

2B6×2P Air Spring Real Pictures
Company Profile
Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
