Dunlop Springride SP2863 Triple Convoluted Air Suspension For Conveyor End Stop
Dunlop Springride SP2863 Triple Convoluted Air Suspension For Conveyor End Stop
3B8×3T Specification
- Top Cover Plate Diameter: 184 mm
- Screw Center Distance of Top Cover Plate: 156 mm
- Bottom Cover Plate Diameter: 184 mm
- Screw Center Distance of Bottom Cover Plate: 156 mm
- Top Cover Plate Screw(Nut) Tooth: 4×M10
- Bottom Cover Plate Screw(Nut) Tooth: 4×M10
- Air Hole: 1/2 BSO
- Rubber Bellow Natural Dia.: 203 mm
- Minimum Height: 115 mm
3B8×3T Cross References
| Dunlop Springride Air Spring | SP2863, SP 2863 |
| Firestone Air Spring |
W01-R58-4056, W01 R58 4056, W01R584056 WO1-R58-4056, WO1 R58 4056, WO1R584056 |
| Dunlop Pneuride Air Spring | 8''×3, 8'×3, 8×3 |
| Contitech Air Spring |
FT 138-26 DS, FT 138 26 DS, FT138-26 DS FT138 26 DS, FT 13826 DS, FT13826DS |
| Norgren Air Spring | M/31083, M 31083, M31083 |
| Parker Air Spring | 9109017 |
We Can Supply Other Air Springs
| Part NO. |
Operating angel max. |
Out of alignment max. (mm) |
Installation height min. (mm) |
Installation height max. (mm) |
Models |
| 6''×1 | 10 | 10 | 50 | 105 | M/31061 |
| 6''×2 | 10 | 10 | 75 | 190 | M/31062 |
| 8''×1 | 10 | 10 | 50 | 130 | M/31081 |
| 8''×2 | 10 | 10 | 75 | 250 | M/31082 |
| 10''×1 | 10...20 | 10 | 50 | 150 | M/31101 |
| 10''×2 | 15...25 | 20 | 75 | 300 | M/31102 |
| 10''×3 | 15..30 | 30 | 100 | 430 | M/31103 |
| 12''×1 | 10...20 | 10 | 50 | 150 | M/31121 |
| 12''×2 | 15...25 | 20 | 75 | 300 | M/31122 |
| 12''×3 | 15...30 | 30 | 100 | 430 | M/31123 |
| 14 1/2''×1 | 10...20 | 10 | 50 | 150 | M/31141 |
| 14 1/2''×2 | 15...25 | 20 | 75 | 340 | M/31142 |
| 14 1/2''×3 | 15...30 | 30 | 100 | 480 | M/31143 |
| 16''×2 | 15...25 | 20 | 75 | 390 | M/31162 |
| 16''×3 | 15...30 | 30 | 120 | 550 | M/31163 |
| 21''×2 | 15...25 | 20 | 84 | 335 | M/32212 |
| 26''×2 | 15...25 | 20 | 100 | 500 | M/32262 |
Storage Precautions
1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius
| Q: What's your advantage? A: (1) Resonable price, good service (2) Reliable quality, long working life (3) Quick and safe modes of payment (4) Ships items timely and quickly (5) Our products are exported to most countries in the world |
| Q: How do you guarantee quality? A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc. |
| Q: How to guarantee your after sales service? A: (1) Strict inspection during production. (2) Recheck the products before shipment to ensure our packaging in good condition. (3) Track and receive feedback from our customers. |
| Q: What will you do for customer's complaint? A: We will respond quickly to our customers within 24 hours. |

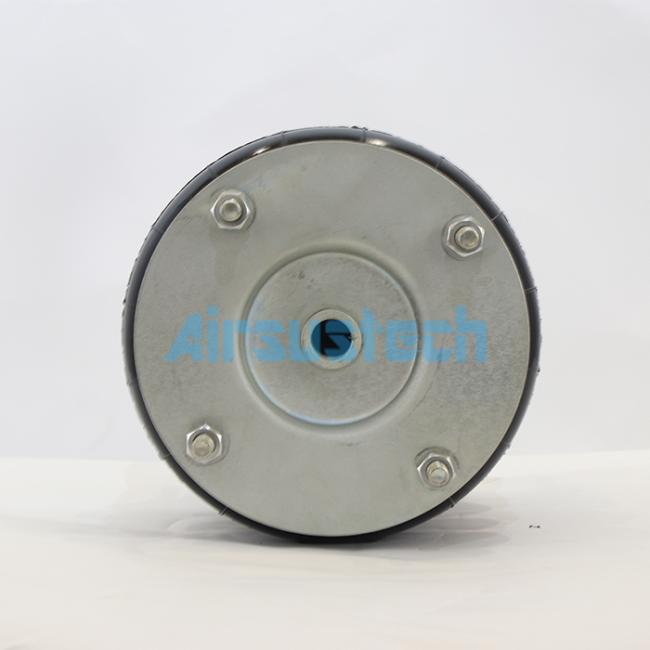

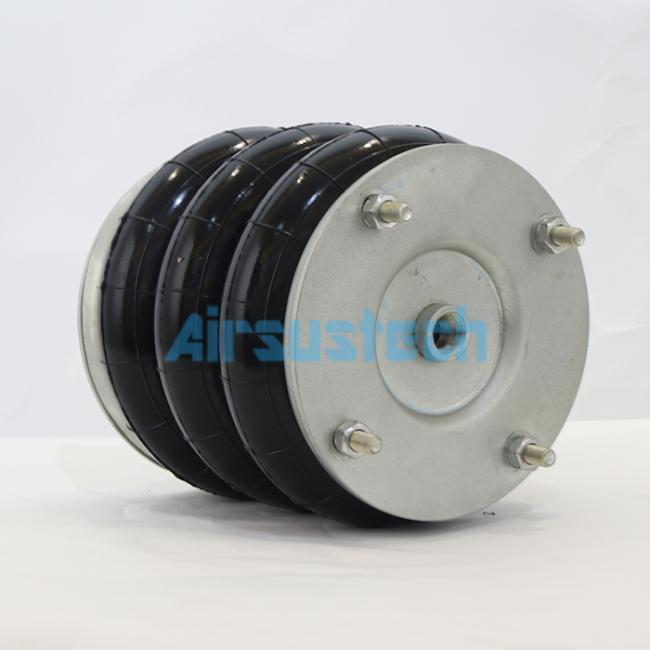

3B8×3T Related Pictures
Company Profile
Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubber air spring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
