High Performance Industrial Air Spring Firestone W01-358-7761 Aluminum Bead Rings
High Performance Industrial Air Spring Firestone W01-358-7761 Aluminum Bead Rings
Design Standards
| Diameter of the Top Cover Plate | 15.12 in. |
|
Center-to-Center Distance of Screws on the Top Cover Plate |
13.81 in. |
| Diameter of the Bottom Cover Plate | 15.12 in. |
| Center-to-Center Distance of Screws on the Bottom Cover Plate | 13.81 in. |
| Blots Type | 18×(3/8-24) |
| Rubber Bellow Natural Diameter | 18.2 in. |
| Height[Min] | 4.5 in. |
| Height[Max] | 18 in. |
We Can Supply Firestone Style 312 Other Type Air Springs
Ribbed neck aluminum bead rings (equal spcaing) 17/8 bolts, nuts, washers
W01-358-7761, W01 358 7761, W013587761
WO1-358-7761, WO1 358 7761, WO13587761
Ribberd neck aluminum bead rings (unequal spacing) 17/8 bolts, nuts, washers
W01-358-7760, W01 358 7760, W013587760
WO1-358-7760, WO1 358 7760, WO13587760
Rolled plate assembly, 1/2 blind nuts, 3/4NPT
W01-358-7286, W01 358 7286, W013587286
WO1-358-7286, WO1 358 7286, WO13587286
Rubber bellows only
W01-358-7914, W01 358 7914, W013587914
WO1-358-7914, WO1 358 7914, WO13587914
Product Applications
- Mechanical handling stop
- Quick lock device
- Reel tensioning
- Machine isolation
- Direct force
- Impact absorbtion
- Roller tensioning
- Platform lift
- Short stroke mechanical linkage
- Hot foll stamping press
- Automation technology
- Conveyor systems
AIRSUSTECH Support
- Provides additional support for your vehicle's suspension system
- Helps to reduce vehicle sagging, sway, and bottoming out
- Easy to install and inflate/deflate as needed
- Constructed with high-quality materials for durability and longevity
- Available in a variety of sizes to fit most vehicles
AIRSUSTECH Services
- Professional installation available through authorized dealers
- Warranty included with product purchase
- Online resources available for product information and troubleshooting
- Customer service available for any questions or concerns

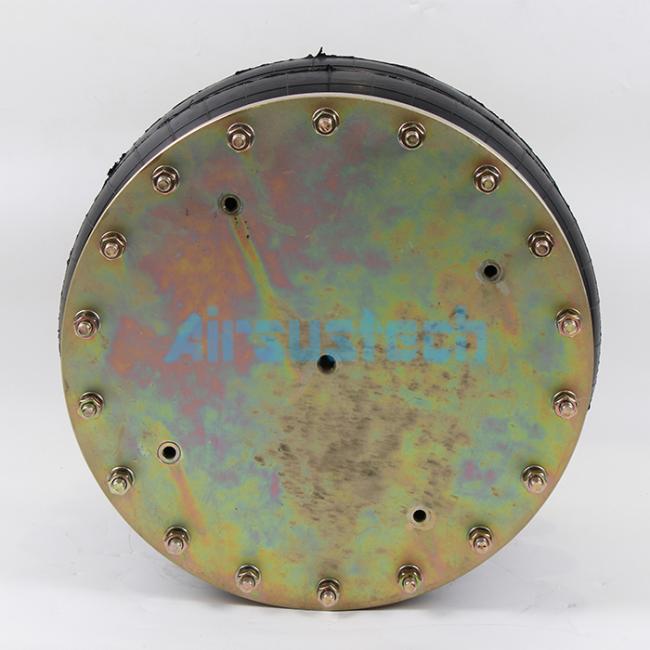

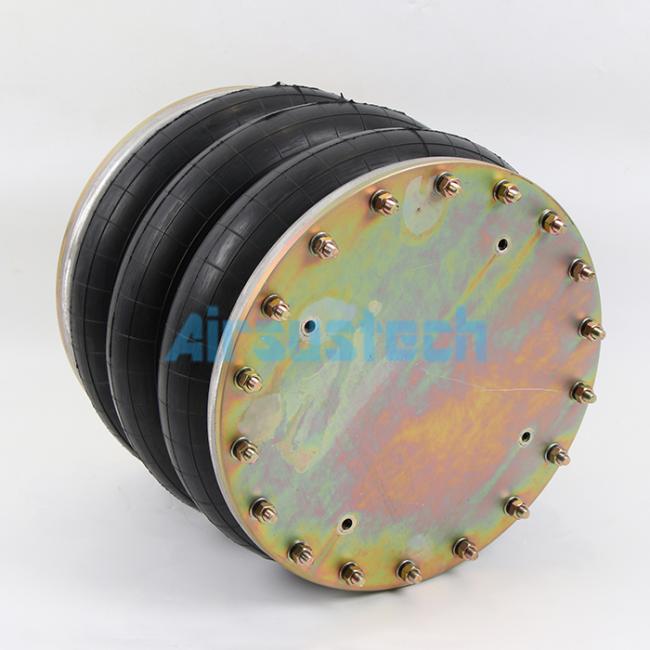

Detailed Pictures
