Product Introduction

Our AIRSUSTECH 2B6910 air shock suspension which can replace Firestone W01-358-6910, Contitech FD 200-19 320, Goodyear 2B9-200, Dayton 3546910, Triangle 6325, Leland Sc2011, Brake & Wheel M3501, provide 1 year warranty, use natural rubber, the quality can reach 80% to 90% of the original brand, and the price is affordable. AIRSUSTECH is your best choice.


Product Details

• Rubber Bellow Max. Diameter: 9.80 in.
• Minimum Height: 3.00 in.
• Maximum Height: 10.40 in.
• Top/Bottom Cover Plate Width: 6.31 in.
• Air Hole: 1/4-18NPTF
• Screw Type: 2×3/8-16UNC
• Center to Center Distance: 3.50 in.
• Distance Gas Hole Between Screw: 1.75 in.
• Bellows Type: Double Convoluted

Cross References

The Structure of AIRSUSTECH Air Spring

1. Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2. Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3. According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4. The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.

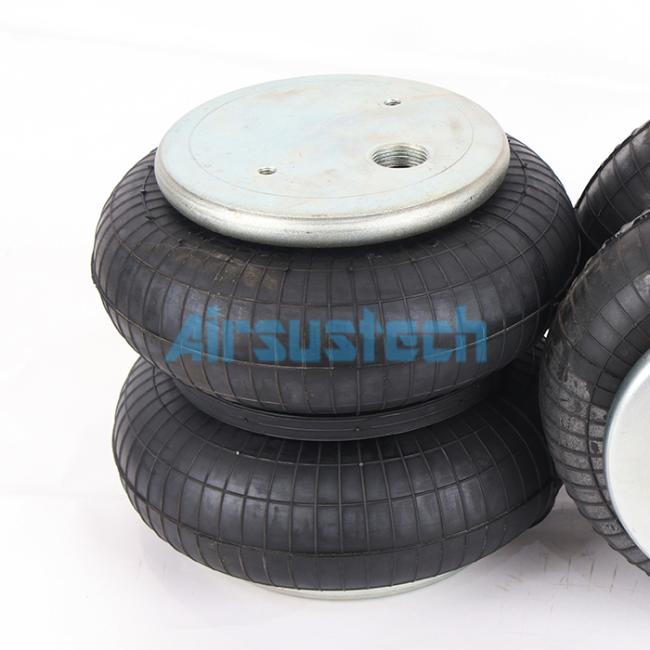

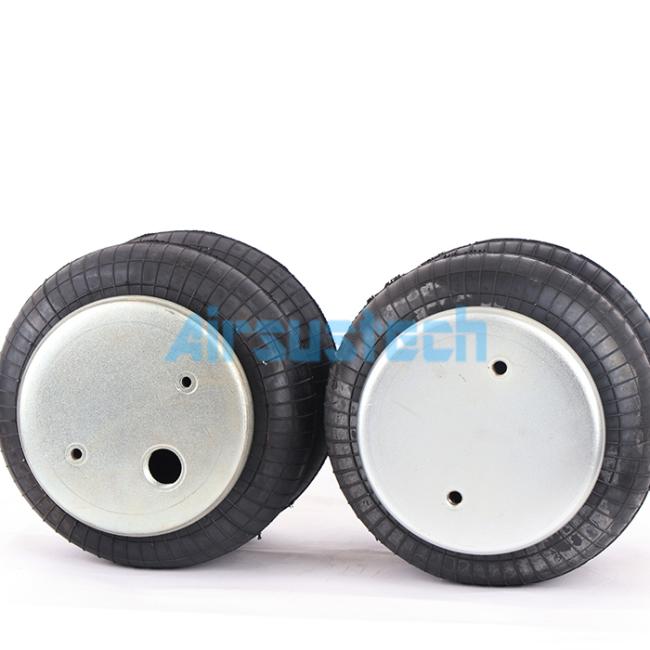

Detailed Pictures
