Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Rubber Bellow Weforma WBE100-E1 Phoenix SP1B04 Max. Dia. 145 MM Air Lift Suspension
Cross References
|
Weforma Air Spring WBE100-E1 / WBE 100-E1 / WBE100E1 |
|
Contitech Air Spring FS 40-6 / FS40-6 / FS406 |
|
Phoenix Air Spring SP1B04 / SP 1B04 |
Product Details
Body Dia.[Max]: 145 mm
Compressed Height: 50 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 50 mm
Pressure [Max]: 0-8 bar
Height [Max]: 100 mm
Height [Min]: 50 mm
Air Inlet: G1/4
Nut/Blind Nuts: 2×M8
Center to Center Distance: 20 mm
Distance Air Hole Betweeen Screw: 20 mm
Technical Data Sheet
Vibration isolation - dynamic characteristics values
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 0.88 | 1.19 | 1.48 | 1.8 | 2.11 | 2.4 | 0.12 |
| Spring Rate [N/cm] | 635 | 820 | 995 | 1190 | 1370 | 1570 | |
| Natural Frequency [Hz] | 4.3 | 4.2 | 4.2 | 4.1 | 4.1 | 4.1 |
Pneumatic application - static characteristics values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. [l] |
| Height H [mm] | 70 | 0.52 | 0.72 | 0.92 | 1.12 | 1.32 | 1.52 | 0.15 |
| 65 | 0.70 | 0.94 | 1.18 | 1.43 | 1.67 | 1.91 | 0.13 | |
| 60 | 0.87 | 1.15 | 1.44 | 1.72 | 2.01 | 2.09 | 0.12 | |
| 55 | 1.06 | 1.39 | 1.72 | 2.05 | 2.38 | 2.71 | 2.10 |
Single Convoluted Air Bellows
| 1B12-305 | FS 40-6 CI | SP2906 |
| 1B14-350 | FS 50-5 CI | SP2334 |
| 1B14-352 | FS 70-7 CI | SP2913 |
| 1B14-364 | FS 100-10 CI | SP1536 |
| 1B15-376 | FS 120-10 CI | SP1537 |
| 1B15-378 | FS 120-12 CI | SP2523 |
| 1B12-313 | FS 200-10 CI | SP1540 |
| 1B14-351 | FS 310-12 CI | SP1543 |
| 1B14-362 | FS 330-11 CI | |
| 1B15-377 | FS 330-14 CI | |
| 1B15-375 | FS 530-11 CI | |
| FS 530-14 CI | ||
| FS 960-12 CI | ||
| FS 1330-11 CI |

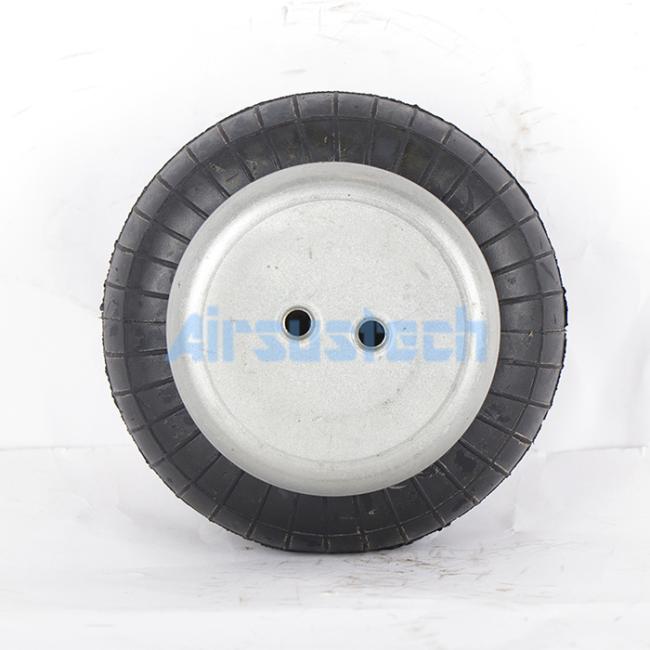

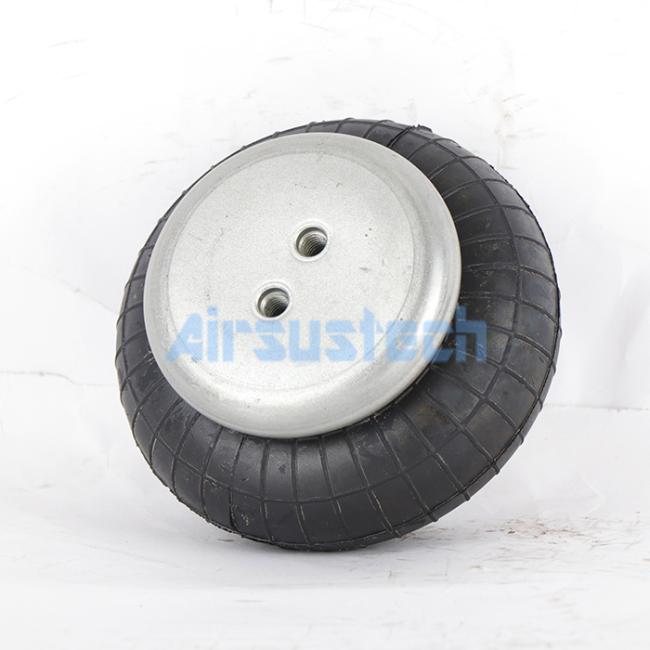

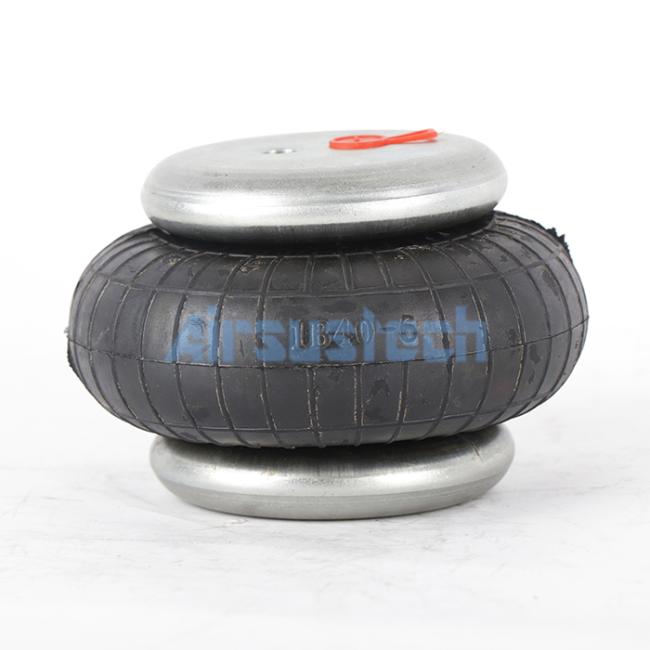

The Pictures of Details
