Dunlop Pneuride 6"x2 Assembly Double Convoluted Air Bellow with Steel Ends

Air Spring Introduction

AIRSUSTECH Air Bellows are specifically engineered to meet customer needs in situations where traditional pneumatic actuators fall short due to insufficient power, excessive size, or challenging environmental conditions that require high maintenance. Their primary application lies in industrial sectors, including but not limited to the paper, food, textile, and building industries.

2B6×2T Replaces These Air Bellows

For Dunlop Pneuride: 6" x 2 (Steel)

For Dunlop Pneuride: 6' x 2 (Steel)

For Dunlop Pneuride: 6 x 2 (Steel)

For Firestone: W01-R58-4053

For Firestone: W01 R58 4053

For Firestone: W01R584053
For Dunlop Springride: SP1482

For Dunlop Springride: SP 1482
For Contitech: FD76-14 DS

For Contitech: FD 76-14 DS

For Contitech: FD7614 DS
For Norgren: M/31062

For Norgren: M31062

For Norgren: M 31062
For Parker: 9109001

2B6×2T Air Spring Dimensions

Maximum Diameter: 168mm

Space Required: 180mm

Minimum Height: 73mm

Maximum Height: 170mm

Total Stroke: 97mm

Static Height: 120mm

Effective Area at Static Height: 140cm

Bellows Weight: 2.25kg

Maximum Working Pressure: 8bar

Burst Pressure: 40bar

Maximum Axial Offset: 10mm

Air Spring Applications

• Impact Absorbtion
• Roller Tensioning
• Platform Lift
• Short Stroke Mechanical Linkage
• Hot Foll Stamping Press
• Automation Technology
• Conveyor Systems
• Agricultural Machinery
• Food Industry
• Paper and Textile Equipment
• Pantograph Drives

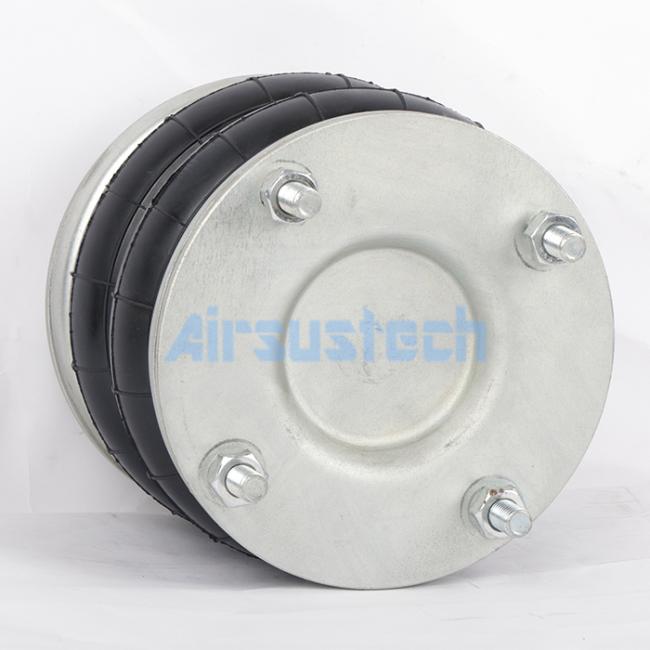

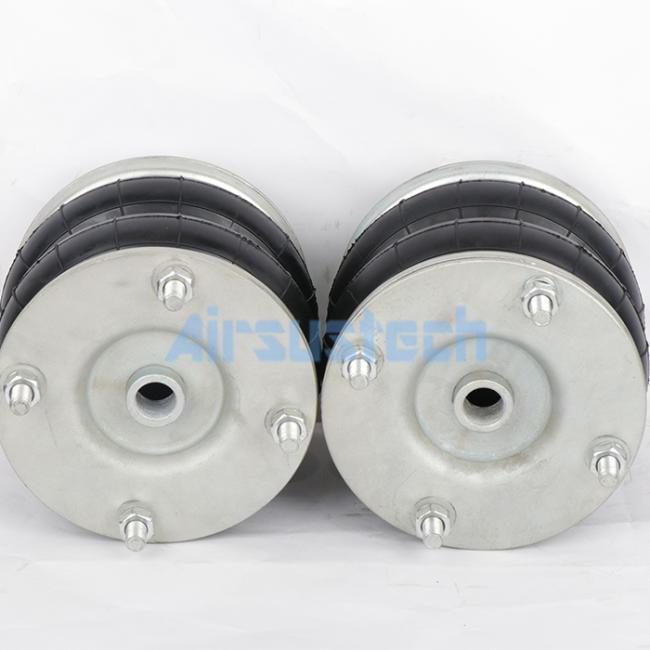

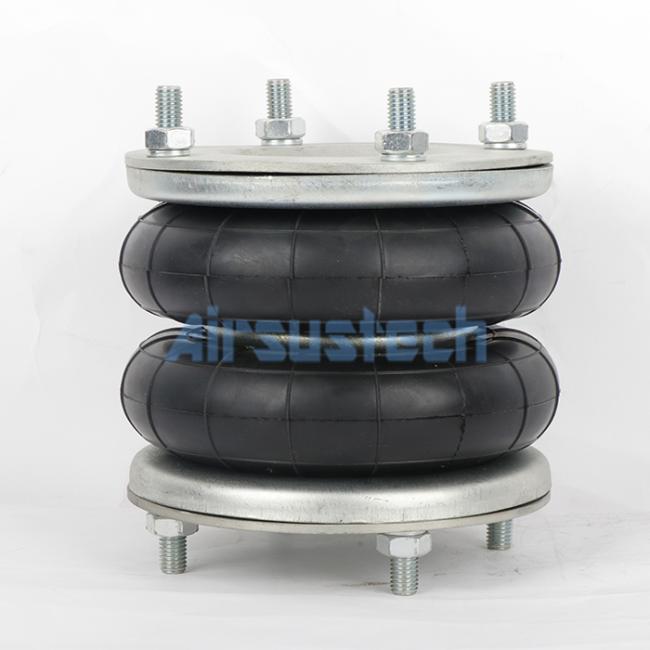

The Detailed Photos of 2B6×2T
