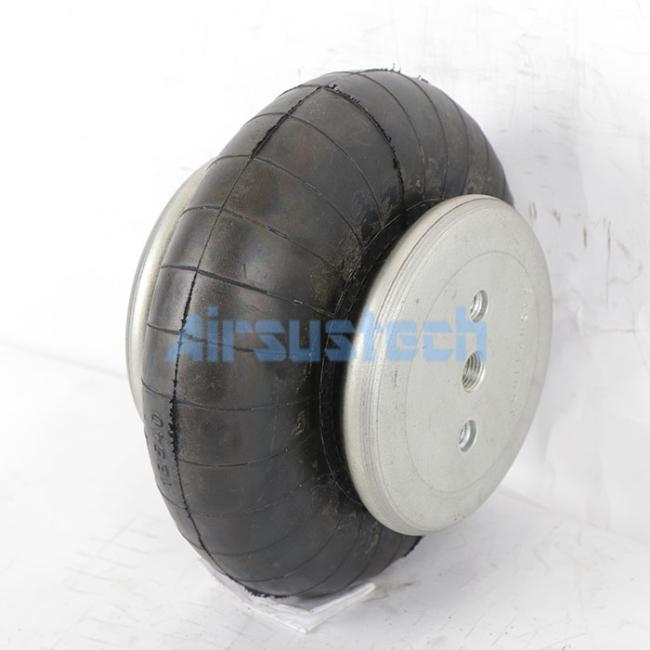

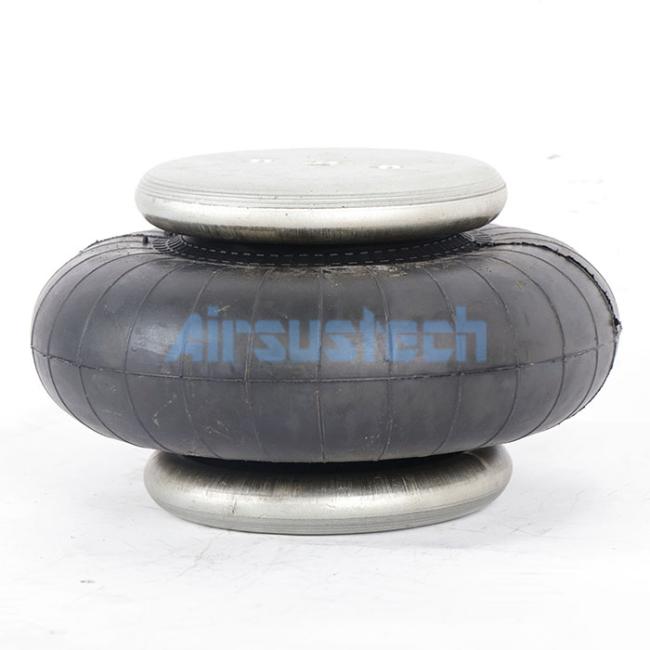

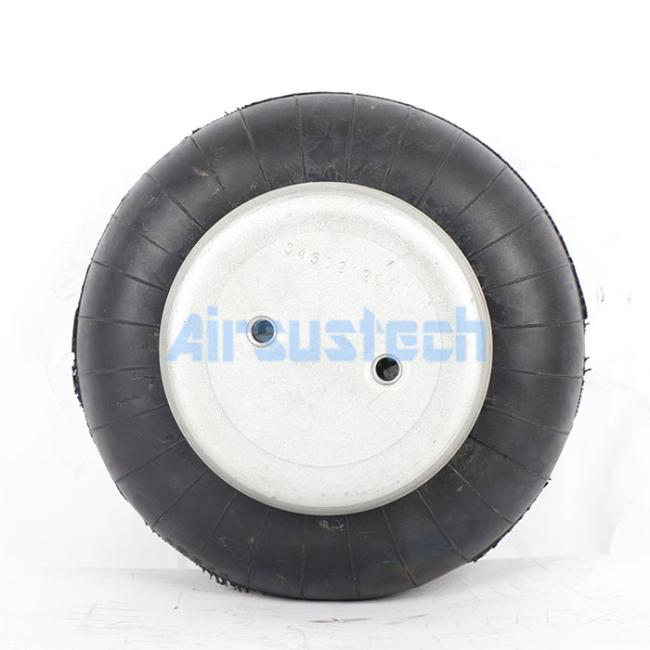

1B5021 AIRSUSTECH Air Spring Cross Firestone W01-358-0112 Suspension Air Spring

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5-8 Working Days

Brand: AIRSUSTECH

Product Description

1B5021 AIRSUSTECH Air Spring Cross Firestone W01-358-0112 Suspension Air Spring

OEM Cross References

Style 110 Two Ply Bellows	Blind nuts, 1/4 BSP	W01-M58-6145 / W01 M58 6145 / W01M586145 WO1-M58-6145 / WO1 M58 6145 / WO1M586145
	Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws)	W01-358-0112 / W01 358 0112 / W013580112 WO1-358-0112 / WO1 358 0112 / WO13580112
	Rubber bellows only	W01-358-0100 / W01 358 0100 / W013580100 WO1-358-0100 / WO1 358 0100 / WO13580100

1B5021 Air Bellow Datas

Body Dia.[Max]: 211 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 99 mm
Pressure [Max]: 0-8 bar
Height [Max]: 152 mm
Height [Min]: 53 mm
Air Inlet: 1/4 BSP
Nut/Blind Nuts: M8×1.25
Center to Center Distance: 44mm
Center Distance Air Hole Betweeen Screw: M8×1.25
Cover Plate Diameter: 114 mm

1B5021 Pneumatic Air Spring Fit The Follow Items

Scissors lift and tilt table
Roller friction brake
Forming press
Carton making machine
Mineral sample pulverizers
Spin washing machines
Expanded metal machine
Concrete brick machine
Rotating table with the air spring
Crushing machine

We Also Have Other Single Type Air Suspensions

AIRSUSTECH Number	Cross OEM Number
1B7070	Contitech FS 70-7 Phoenix SP 1B 05 Bosch 8224 19002 Festo EB-165-65 Weforma WBE 200-E1 Firestone W01-M58-6155
1B6910	Firestone W01-M58-6374 Contitech FS 200-10 Phoenix SP 1B 12 Dunlop(FR) 9 1/4x1 S09101 Bosch 822419004 Festo EB-250-85 Norgren PM/31091(8 1/4x1)
1B8×4	Firestone W01-358-7564 Goodyear 1B8-550 Contitech FS120-10
1B 5330	Firestone W01-358-7008 Contitech FS 330-11 474 Goodyear 1B12-300/313 Triangle 6374/4474 Holland(Neway) 90557226
1B1209	Firestone W01-M58-6165 Contitech FS 120-9 Dunlop 8''x1, S08101 Bosch 822419003 Festo EB-215-80 Norgren PM/31081(8x1) Weforma WBE 300-E1 Airtech 140293 Airtech 111003/1B-190FB Megatech 1S120-9 3/4 M8
