Serviceable Air Rubber Bellow Norgren M/31103 Suspension Air Spring M10 Screw

Air Spring Introduction

Our AIRSUSTECH Air Suspension 3B10×3T is a compatible replacement for Firestone W01-R58-4059, Dunlop Pneuride 10''×3, Dunlop Springride SP1539, and Contitech FT 210-32 DS. It also shares the same technical specifications as Norgren M/31103 and Parker 9109031. The quality of the 3B10×3T reaches 80% to 90% of the original brands, such as Firestone, Contitech, and Dunlop. Additionally, we offer a one-year warranty on our air spring rubber bellows.

OEM Cross References

For Norgren NO.: M/31103, M31103, M31103

For Firestone NO.: W01-R58-4059, W01R584059, W01 R58 4059
For Dunlop Pneuride NO.: 10''×3, 10'×3, 10×3
For Dunlop Springride NO.: SP1539, SP 1539
For Contitech NO.: FT 210-32 DS, FT210-32 DS, FT21032 DS
For Parker NO.: 9109031

3B10×3T Air Spring Specifications

Effective Diameter: 200 mm

Connection Method: CY series

Compressed Height: 118 mm

Maximum Height: 400 mm

Full Stroke: 282 mm

Working Medium: air

Working Pressure: 0 bar to 8 bar

Burst Pressure: 8 bar

Temperature: -40℃ to +70℃

We Have Other Orial Series Flange Connection Air Spring

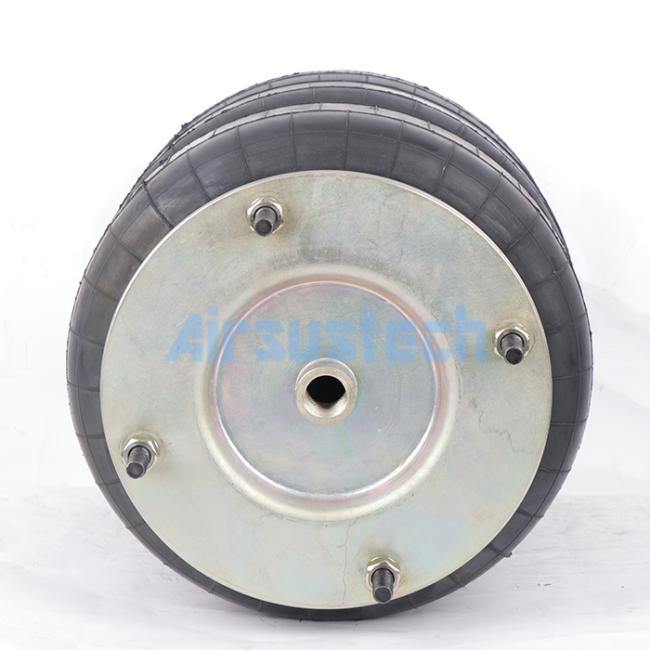

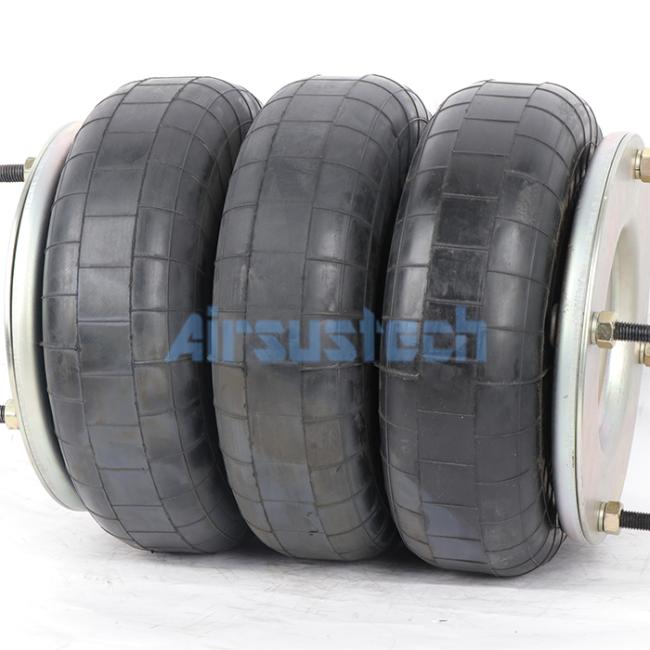

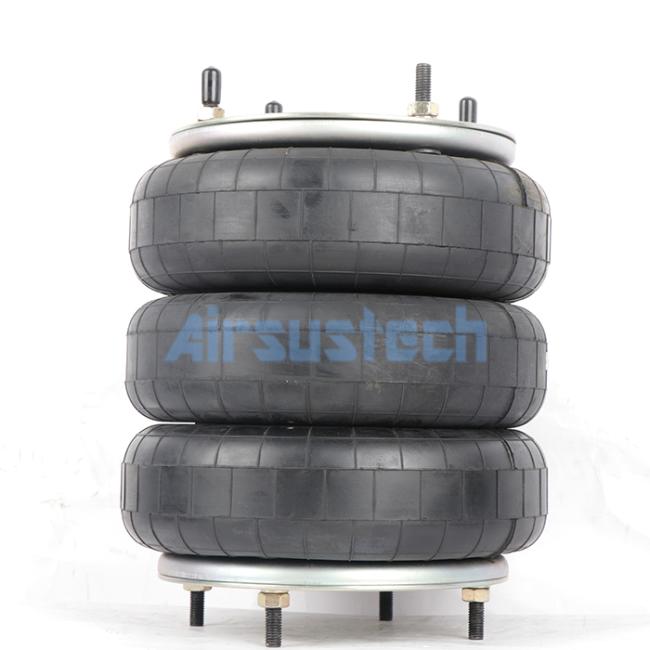

3B10×3T Product Details
