Mechanical Air Spring Dunlop Pneuride 10''×1 Air Connection G1/2 SP2523 Air Bag
Mechanical Air Spring Dunlop Pneuride 10''×1 Air Connection G1/2 SP2523 Air Bag
The Description of 1B10×1T Air Bag
AIRSUSTECH 2B12×2T air spring with flange ring is compatible with Dunlop Pneuride 10''×1, Firestone W01-R58-4057, Dunlop Springride SP2523, Contitech FS 210-10 DS, Norgren M/31101, and Parker 9109024. Made from high-quality natural rubber, this air spring delivers excellent durability and performance. With features such as superior vibration isolation and shock absorption, it ensures stability in demanding environments. Backed by a 12-month warranty, the 2B12×2T is a reliable option for replacements and maintenance across various applications.
OEM Part No
| Firestone Part NO. | W01-R58-4057, W01R584057, W01 R58 4057 | Dunlop Pneuride Part NO. | 10''×1, 10'×1, 10×1 |
| Contitech Part NO. | FS 210-10 DS, FS21010 DS, FS210-10 DS | Dunlop Springride Part NO. | SP2523, SP 2523, SP 25 23 |
| Norgren Part NO. | M/31101, M31101, M 31101 | Parker Part NO. | 9109024 |
1B10×1T Detailed Datas
Diameter of the Top Cover Plate: 210 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 181 mm
Diameter of the Bottom Cover Plate: 210 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 210 mm
Screw (Nut) Thread Count for the Top Cover Plate: 4×M10
Screw (Nut) Thread Count for the Bottom Cover Plate: 4×M10
Air Inlet/Air Connection/Port Size: G 1/2
Natural Diameter of the Rubber Bellow: 235 mm
Design Height: 118 mm
Product Advantages
Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem)
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions

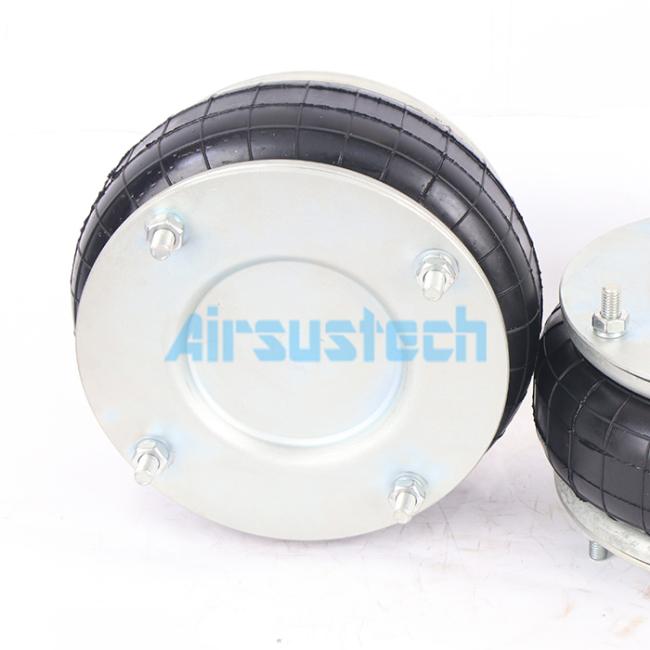

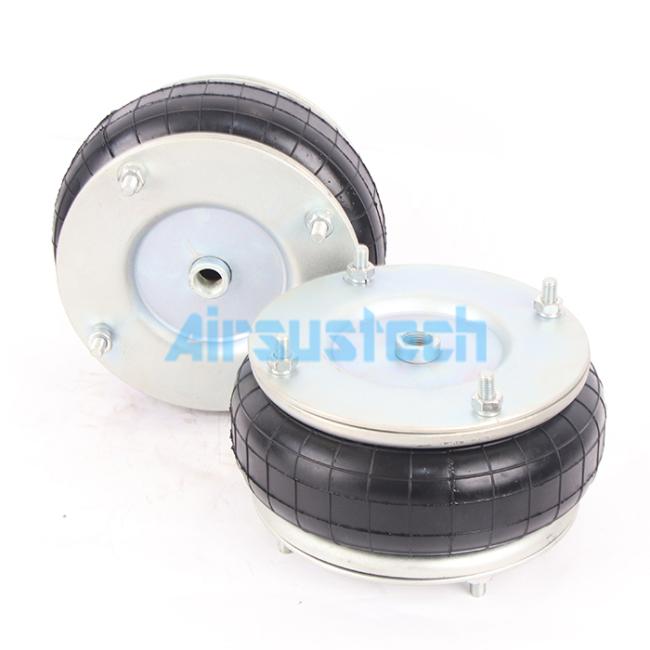

The Related Photos
