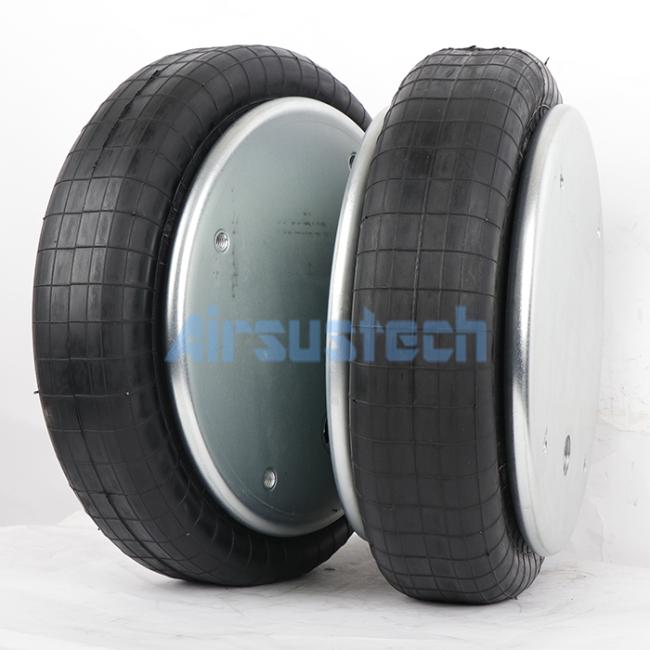

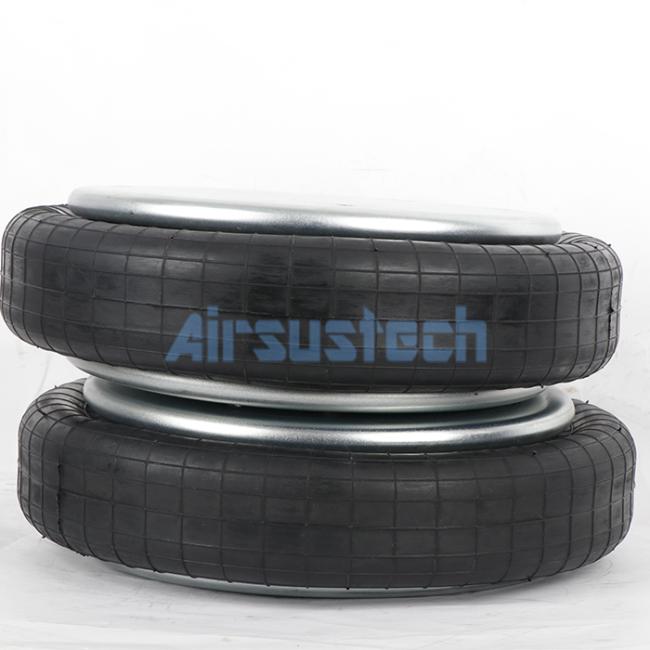

Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension
Vibration Proofing Rubber Bellow 1B14-350 Goodyear Single Bellow Air Suspension
Product Standards
| Bottom Plate Alignment: Parallel Bottom Plate Center To Center Diameter: 6.25 inches Bottom Plate Diameter: 11.31 inches Bottom Plate Hole Quantity: 4×3/8-16 UNC Bottom Plate Type: Steel |
| Top Plate Alignment: Parallel Top Plate Center To Center Diameter: 6.25 inches Top Plate Diameter: 11.31 inches Top Plate Hole Quantity: 4×3/8-16 UNC Top Plate Type: Steel |
| Expanded Height: 290 mm Compressed Height: 2.00 inches Spring Type: Single Convoluted Max Rubber Bellow Diameter: 15.90 inches |
| Air Connection: 1/4-18 NPTF Operation: Gas-filled |
Cross References
Goodyear Air Spring 1B14-350
Goodyear Air Spring 1B14350
Goodyear Air Spring 1B 14-350
Goodyear Air Spring 1B 14350
Goodyear Air Spring 1B 14 350
Goodyear Flex No. 578913351
Goodyear Flex No. 578-91-3-351
Goodyear Flex No. 578 91 3 351
Contitech Air Spring FS 530-14
Contitech Air Spring FS530-14
Contitech Air Spring FS53014
Contitech Air Spring FS 53014
Contitech Air Spring FS 530 14
Triangle Air Spring AS-4442
Triangle Air Spring AS4442
Triangle Air Spring AS 4442
Firestone Air Spring W01-358-7103
Firestone Air Spring W013587103
Firestone Air Spring W01 358 7103
FleetPride Air Spring AS7103
Taurus Air Spring 6326
TRP Air Spring AS71030
Peerless Air Spring 0550-00015
Peerless Air Spring 055000015
Peerless Air Spring 0550 00015
Features of Rubber Air Spring
- Extended Service Life: The self-sealing design offers remarkable durability due to minimal rubber deformation during its expansion and contraction cycles.
- Simple Maintenance: With no friction or sliding components, there’s no need for lubricating oil, making upkeep straightforward.
- Reduced Installation Height: Compared to traditional springs, rubber air suspension allows for a lower installation height, effectively increasing the suspension stroke.
- Flexible Spring Characteristics: Achieves parameters of elasticity and softness, supporting high loads while also providing excellent vibration resistance.
- Variable Load Capacity: Load-bearing capacity can be easily adjusted over a wide range by modifying the internal pressure.
- Height Control: When paired with a height adjustment valve, the system can maintain a consistent height for varying loads.
- Effective Damping: Incorporating an auxiliary air chamber and throttle valve enhances damping performance, ensuring a smoother ride.
Goodyear Single Convoluted Air Bellows We Can Offfer
| 1B5-500 | 1B5-512 | 1B9-202 |
| 1B5-502 | 1B5-520 | 1B9-204 |
| 1B5-503 | 1B5-521 | 1B9-205 |
| 1B5-510 | 1B9-201 | 1B9-208 |
| 1B12-301 | 1B12-313 | 1B14-352 |
| 1B12-304 | 1B14-350 | 1B14-362 |
| 1B12-305 | 1B14-351 | 1B14-364 |
| 1B15-375 | 1B15-376 | 1B15-377 |
