DUNLOP SP1540 Single Convoluted Air Shock Suspension for Hydraulic Press Machines

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 5-8 Working Days
Brand: AIRSUSTECH
Product Description

DUNLOP SP1540 Single Convoluted Air Shock Suspension for Hydraulic Press Machines





1B12×1T Air Bellows Specifications



Top Cover Plate Diameter 260 mm
Screw Center Distance of Top Cover Plate 232 mm
Bottom Cover Plate Diameter 260 mm
Screw Center Distance of Bottom Cover Plate 232 mm
Top Cover Plate Screw(Nut) Tooth 4×M10
Bottom Cover Plate Screw(Nut) Tooth 4×M10
Air Connection G1/2
Natural Bellow Max. Diameter 300 mm
Design Height

130 mm





OEM Number Manufacturer



DUNLOP SPRINGRIDE OEM Manufacturer: SP1540

DUNLOP SPRINGRIDE OEM Manufacturer: SP 1540

DUNLOP SPRINGRIDE OEM Manufacturer: SP 15 40

Firestone OEM Manufacturer: W01-R58-4060

Firestone OEM Manufacturer: W01R584060

Firestone OEM Manufacturer: W01 R58 4060
DUNLOP PNEURIDE OEM Manufacturer: 12''×1

DUNLOP PNEURIDE OEM Manufacturer: 12'×1

DUNLOP PNEURIDE OEM Manufacturer: 12×1
Contitech OEM Manufacturer: FS 412-10 DS

Contitech OEM Manufacturer: FS 41210 DS

Contitech OEM Manufacturer: FS 412 10 DS

Contitech OEM Manufacturer: FS412-10 DS

Contitech OEM Manufacturer: FS41210 DS

Contitech OEM Manufacturer: FS412 10 DS
Norgren OEM Manufacturer: M/31121

Norgren OEM Manufacturer: M31121

Norgren OEM Manufacturer: M 31121
PARKER OEM Manufacturer: 9109044





The Advantages of AIRSUSTECH Air Springs/Air Actuators/Air Shock Suspensions



  • Excellent shock absorption
  • Stable shock absorption
  • Precise height control
  • Wide range of sizes
  • Extend equipment life
  • Effectively reduce noise
  • Air spring shock absorbers are widely used





AIRSUSTECH Air Springs Cross Single Convoluted Flange Ring Air Bags



AIRSUSTECH NO. Firestone Dunlop Pneuride Dunlop Springride Contitech Norgren Parker
2 3/4''×1   2 3/4''×1 SP2906 FS 22-3 DI   9109025
4 1/2''×1 W01R584050 4 1/2''×1 SP2334 FS 44-5 DI PM/31041 9109400
1B6×1T(AI) W01R584078 6''×1(Al) SP2913 FS 76-7 DI PM/31061 9109004A
1B6×1T(Steel) W01R584052 6''×1(Steel) SP1536 FS 76-7 DS M/31061 9109004
1B8×1T W01R584054 8''×1 SP1537 FS 138-8 DS M/31081 9109014
1B10×1T W01R584057 10''×1 SP2523 FS 210-10 DS M/31101 9109024
1B12×1T W01R584060 12''×1 SP1540 FS 412-10 DS M/31121 9109044
1B14 1/2''×1T W01R584063 14 1/2''×1 SP1543 FS 614-13 DS M/31141 9109064
1B16×1T W01R584066 16''×1   FS 816-15 DS M/31161 9109126

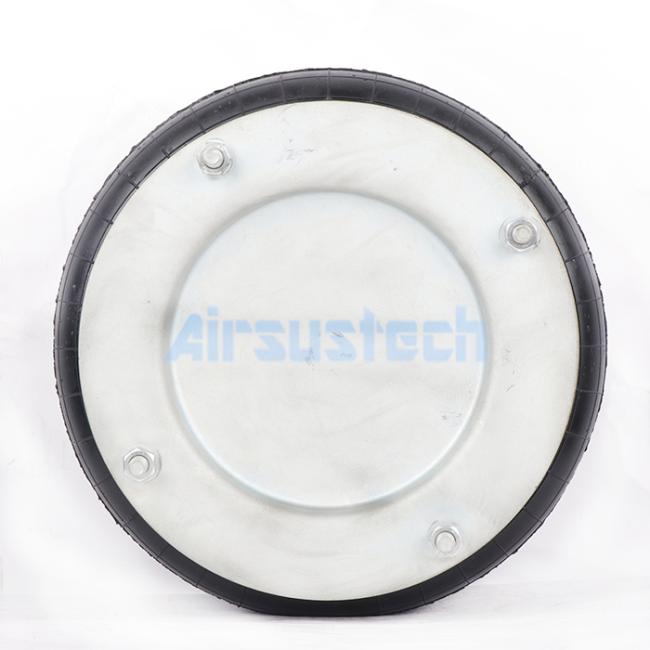

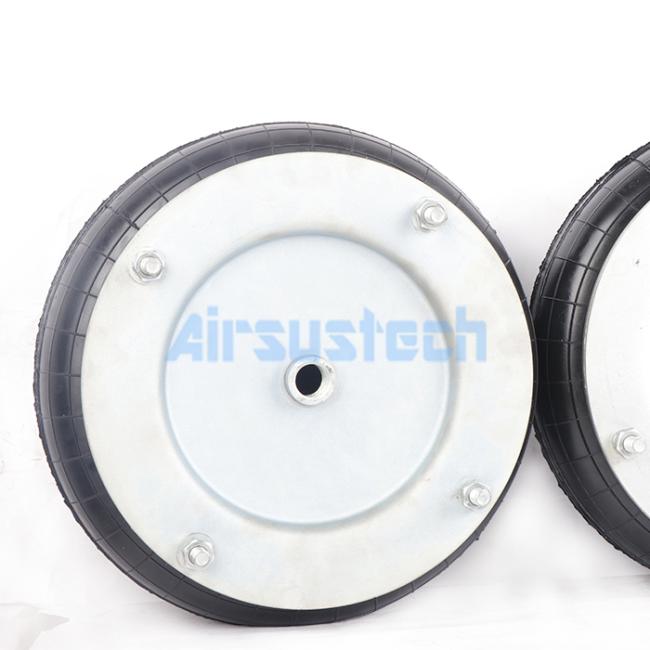

Product Images





Company Profile

Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
