Product Detailed Datas

Diameter of the Top Cover Plate: 231 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 157.5 mm
Diameter of the Bottom Cover Plate: 231 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 157.5 mm
Screw (Nut) Thread Count for the Top Cover Plate: 3×3/8-16UNC
Screw (Nut) Thread Count for the Bottom Cover Plate: 4×3/8-16UNC
Air Inlet: 1/4NPTF
Max Diameter of the Rubber Bellow: 325 mm
Maximum Height: 160 mm
Minimum Height: 55 mm

Manufacturer Part Number

The Applications of AIRSUSTECH Air Springs

Air springs have successfully solved actuating problems, at a reduced cost, in many applications including:

• Injection or ejection of parts in manufacturing processes
• Tensioning devices for cables, calendar rolls and conveyors
• Force devices for die cutting and stamping
• Positioning devices in manufacturing processes
• Clamping devices for wood gluers, etc.
• Vertical lift force for platforms and for rotation tables
• Rotary shaft actuators
• Double acting actuators for stitching machines
• Drain valve actuators
• Actuation to engage and disengage power on powered roller conveyor
• Power source in direct-acting forming press (metal and plastics)
• Power source in compactors
• Power source in laminating plywood presses
• Granite slab positioners
• Pallet lifts

AIRSUSTECH Single Convoluted Air Rubber Bellows Cross References

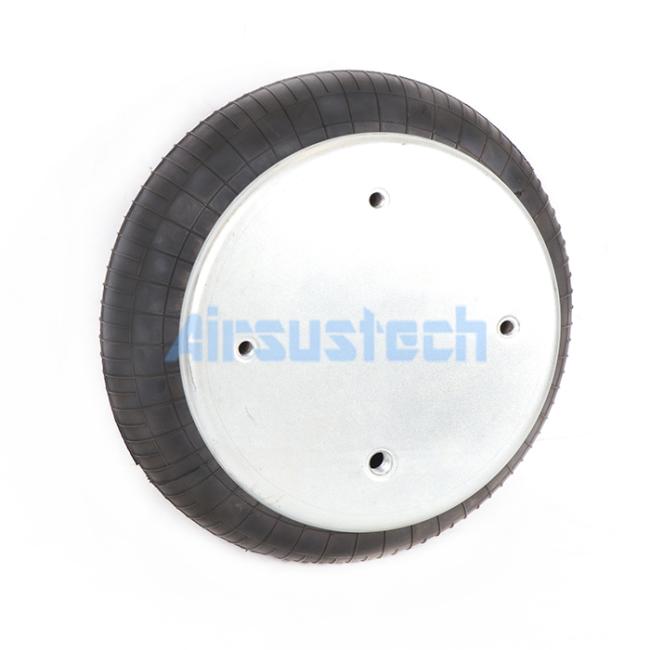

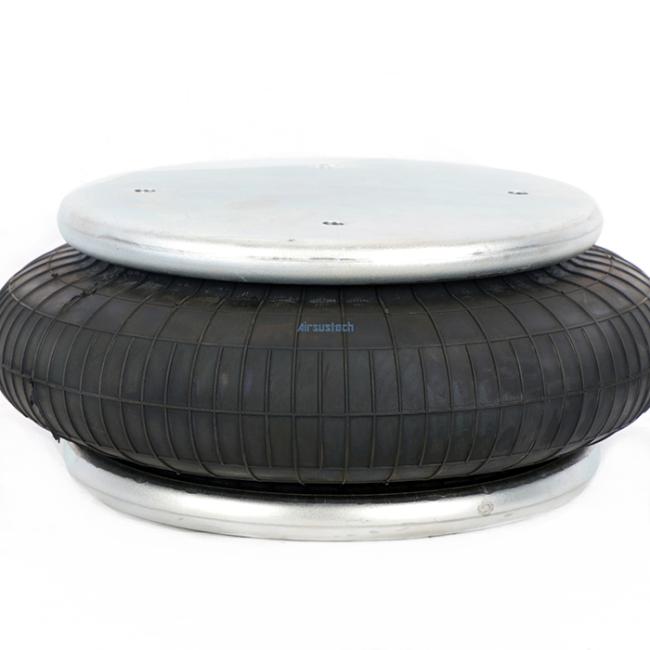

The Real Pictures of 1B5171
