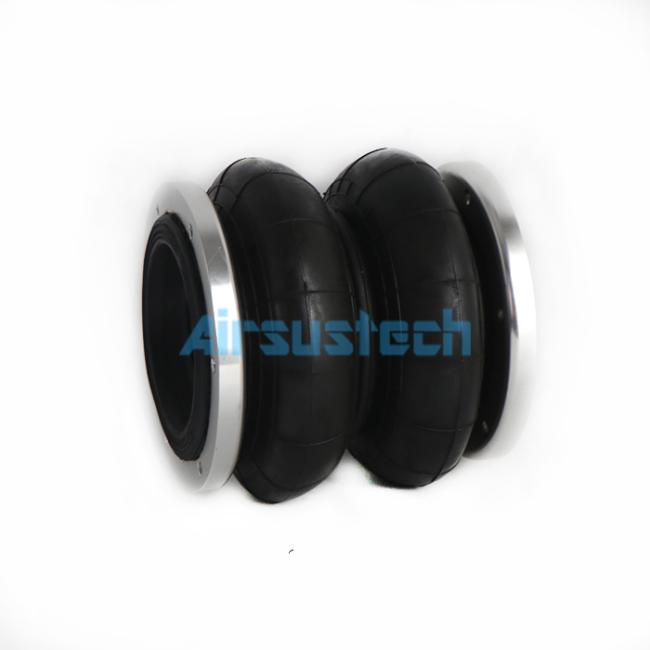

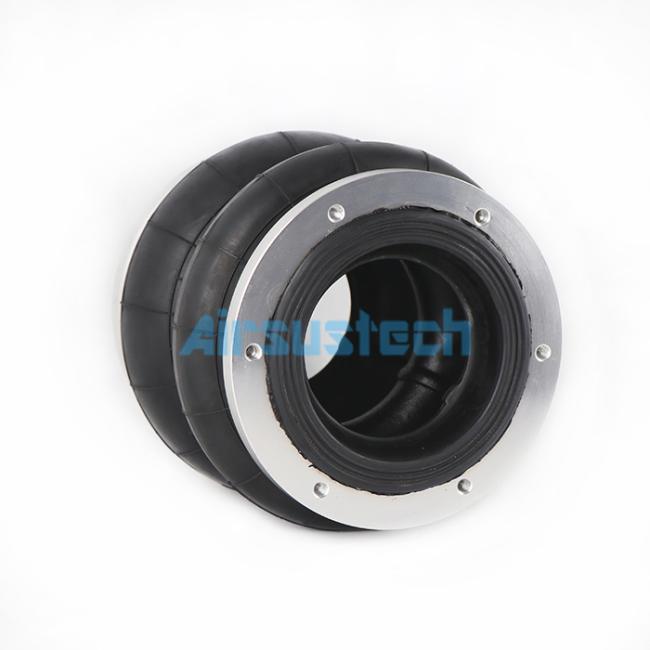

Flange Connection Contitech Rubber Air Spring FD 120-17 Air Bag for Reduce Shock
Flange Connection Contitech Rubber Air Spring FD 120-17 Air Bag for Reduce Shock
Product Information
| Warranty | One Year |
| Origin | Guangzhou, China |
| Model | Truck/Trailer/Bus/Commercial Car |
| Purpose | For Replace |
| Condition | Brand New |
| Type | Gas Filled |
| Standard | OEM Standard |
Product Specification
| Flange Diameter | 157 mm |
| Center to Center Distance | 137.5 mm |
| Natural Diameter of Rubber Bellow | 176 mm |
| Static Height | 178 mm |
| Screw Type | 6×1/4'' |
| Structure | double convoluted |
The Features of Flange Connection Air Bags
- Compact and durable structure: The air spring features an integrated design that combines a rubber lining with a press-fitted metal plate, improving durability and stability.
- Easy installation: Gas springs can be easily and directly connected to mechanical equipment without the need for additional components such as flanges.
- Excellent shock absorption performance: Excellent vibration isolation and shock absorption performance help extend the service life of the equipment.
- Flexible load adjustment: The adjustable internal air pressure allows the air spring to adapt to different load requirements, ensuring consistent performance.
- Wide range of applications: Highly adaptable, suitable for machinery and equipment, cars, and buses, making it an ideal solution for all walks of life.
We Also Have Other Double Convoluted Air Bellows
| AIRSUSTECH Number | Cross References | Details |
| 2B12017 |
Contitech FD 120-17 Airkraft 113053, 2B-181 |
Air Hole: G3/4 Bead Plate |
| 2B12017-1/4 |
Firestone W01-M58-6353 Contitech FD 120-17 Airkraft 113054, 2B-181 |
Air Inlet: G1/4 Bead Plate |
| 2B12017-G3/8 | Contitech FD 120-17 | Air Connection: G 3/8 |
| 2B12017-RC3/8 | Contitech FD 120-17 |
Pneumatic Connection: RC3/8 Bead Plate |
Company Profile
Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
