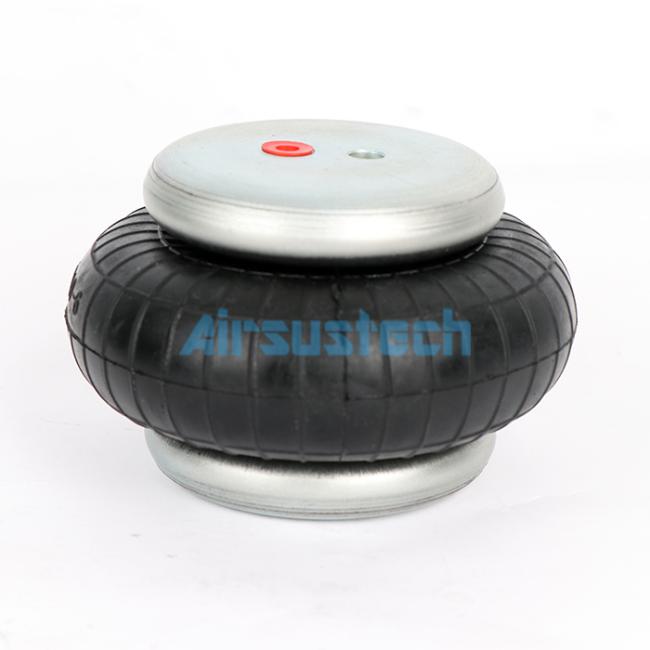

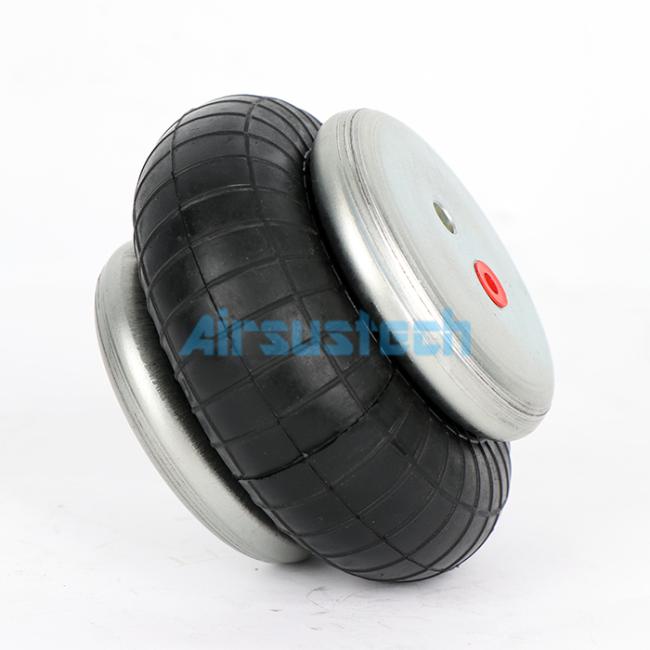

Contitech FS 40-6 Convoluted Air Rubber Spring for Phoenix SP 1B 04 Bulk OEM Air Suspension System
Bulk OEM Air Suspension System Phoenix SP 1B 04 Convoluted Air Rubber Spring
Prdouct Description
The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.
Product Information
| Bottom Plate Alignment: Parallel Bottom Plate Center To Center Diameter: 20 mm Bottom Plate Diameter: 90 mm Bottom Plate Hole Quantity: 2×M8×1.25 Bottom Plate Type: Steel |
| Top Plate Alignment: Parallel Top Plate Center To Center Diameter: 20 mm Top Plate Diameter: 90 mm Top Plate Hole Quantity: 2×M8×1.25 Top Plate Type: Steel |
| Expanded Height: 110 mm Compressed Height: 50 mm Spring Type: Single Convoluted Nut/Blind Nuts Type: 2×M8×1.25 Max Rubber Bellow Diameter: 145 mm |
|
Air Connection: G1/8 |
OEM Cross References
Supplier: AIRSUSTECH
OEM Number: 1B4060
Supplier: Phoenix
OEM Number: SP 1B 04, SP 1B04, SP1B04
Supplier: Contitech
OEM Number: FS 40-6, FS 406, FS 40 6
Supplier: Weforma
OEM Number: WBE 100-E1, WBE 100E1, WBE 100 E1
The Applications of AIRSUSTECH Air Springs
| Roller tensioning | Adjust and stabilize roller pressure in printing, coating, or laminating systems to ensure even material processing. |
| Impact absorption | Mitigate sudden shocks in equipment like forging hammers or drop testers to safeguard structural integrity. |
| Direct force applications | Deliver precise force control in pressing or stamping systems while cushioning reactive forces to protect actuators. |
| Machine isolation | Decouple heavy machinery (e.g., presses or compressors) from foundations to block vibration propagation to surrounding structures. |
We Have Other Single Convoluted Rubber Springs
| AIRSUSTECH No. | Contitech No. | Min. Height | Max. Height | Air Connection |
| 1B9×5 | FS 200-10 3/4 M8 | 60 mm | 160 mm | 1/4-18NPTF |
| 1B53014 | FS 530-14 | 81 mm | 160 mm | 1/4NPTF |
| 1B130070 | FS 50-5 | 50 mm | 100 mm | ZG1/4'' |
| 1B6910 | FS 200-10 | 60 mm | 120 mm | G1/4 |
| 1B1209 | FS 120-9 | 50 mm | 115 mm | G3/4 |
| 1B 5330 | FS 330-11 474 | 55 mm | 160 mm | 1/4NPTF |
| 1B8×4 | FS 120-10 | 50 mm | 140 mm | 1/4NPTF |
| 1B4060 | FS 40-6 | 50 mm | 110 mm | G1/8 |
