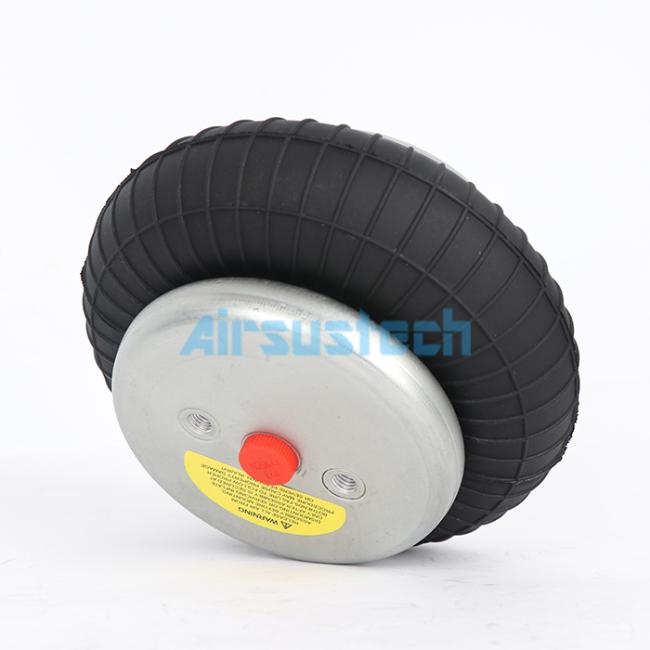

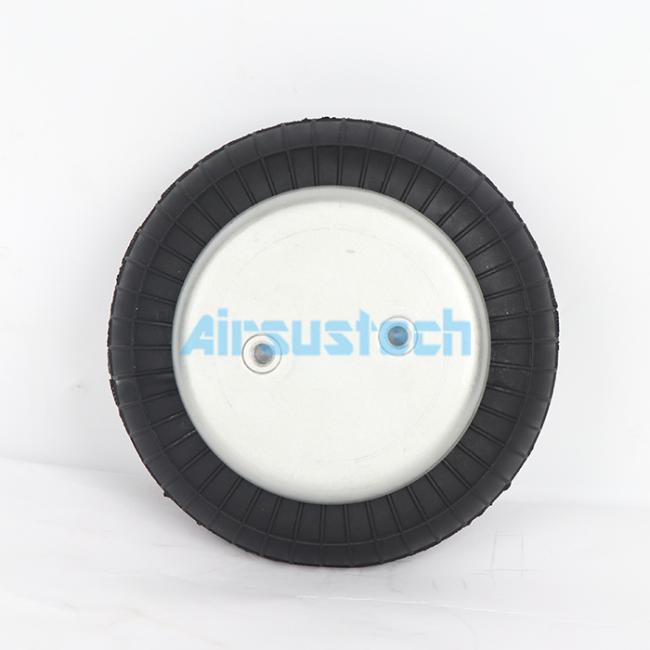

Standard-Temperature Rubber Air Bag Festo EB-165-65 Suspension Air Spring System
Standard-Temperature Rubber Air Bag Festo EB-165-65 Suspension Air Spring System
Product Standards
| Rubber Bellow | |
| Natural Diameter | 150 mm |
| Natural Height | 76 mm |
| Top Cover Plate | |
| Cover Plate Diameter | 107 mm |
| Center to Center Diameter | 44.5 mm |
| Air Connection | G1/4 |
| Screw Type of Top Plate | 2×M8 |
| Bottom Cover Plate | |
| Cover Plate Width | 107 mm |
| Center to Center Diameter of Bottom Plate | 44.5 mm |
| Screw Type of Bottom Plate | 2×M8 |
OEM Cross References
Festo Air Spring: EB-165-65
Festo Air Spring: EB16565
Festo Air Spring: EB 165 65
Contitech Air Spring: FS 70-7
Contitech Air Spring: FS 707
Contitech Air Spring: FS 70 7
Phoenix Air Spring: SP 1B 05
Phoenix Air Spring: SP 1B05
Phoenix Air Spring: SP1B05
Bos-ch Air Spring: 8224 19002
Bos-ch Air Spring: 822419002
Weforma Air Spring: WBE 200-E1
Weforma Air Spring: WBE 200E1
Weforma Air Spring: WBE 200 E1
Firestone Air Spring: W01-M58-6155
Firestone Air Spring: W01M586155
Firestone Air Spring: W01 M58 6155
Do You Know What Role Air Springs Play in Industry?
- Air springs are used in numerous mechanical devices to cushion and absorb vibrations, control movement, or increase pressure. Compared to cylinders or other elastic elements with the same function, air springs are simple in design, operate reliably, do not require complex parameter calculations or structural design, have no seal leaks, are easy to use and maintain, and have a long service life.
- During the stamping process of stamped parts such as car covers and doors, the necessary buffer devices must be used. The buffer must withstand large periodic shock loads during transportation, and its performance directly affects the processing accuracy of the product. Using air springs as buffers can reduce processing costs and ensure processing accuracy. During material transportation, the silo is driven by a vibrator to evenly mix the materials or allow them to flow into the silo. Vibrations can lead to fatigue or even damage to the silo support, so vibration isolation devices must be used.
- Greater flexibility can be achieved through the use of air springs. By adjusting the spring filling volume, different workload and height requirements can be met without compromising the vibration isolation effect.
Product Applications
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packing
- Scissor lift
- Hopper vibration and damping
- Mechanical handling stop
- Quick lock device
