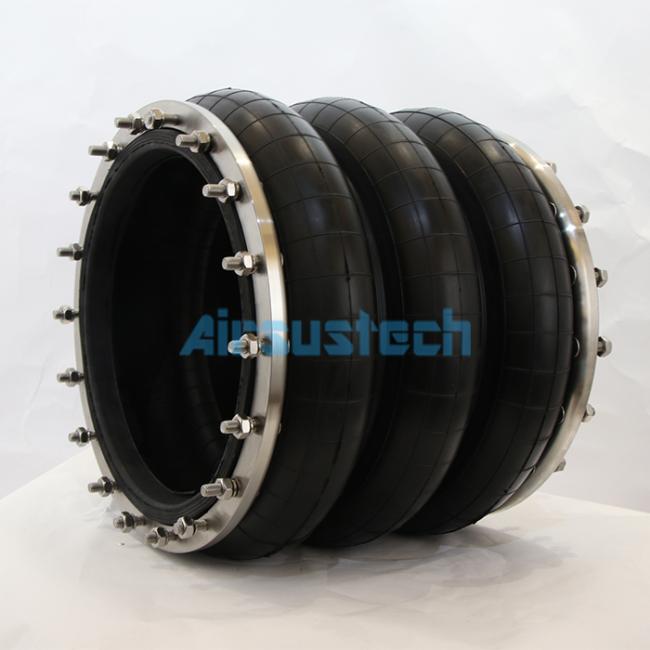

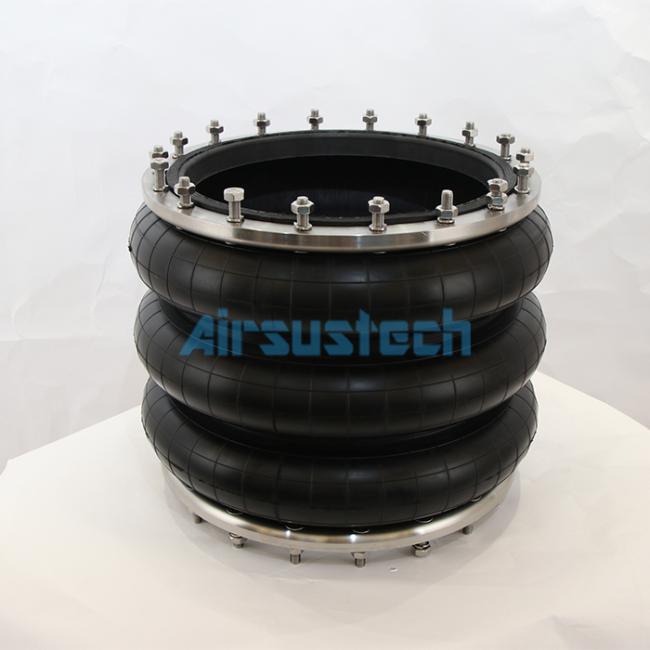

Rubber Industrial Air Spring 3H400312 Triple Convoluted Air Bag with Flange Ring
Rubber Industrial Air Spring 3H400312 Triple Convoluted Air Bag with Flange Ring
What is Flange Connection Air Springs?
A flange connection air spring is a type of air suspension component that utilizes flanges for secure attachment to other structures, combining the benefits of air springs with robust mechanical connections.
Product Datas
| Dimensions - Minimum Height | 122 mm |
| Dimensions - Maximum Height | 378 mm |
| Dimensions - Natural Height | 312 mm |
| Dimensions - Maximum Diameter | 430 mm |
| Dimensions - Cover Plate Diameter | 396 mm |
| Dimensions - Center to Center Distance | 358 mm |
| Screw Type | 18-M10 |
Cross References
| Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers |
W01-M58-7530, W01M587530, W01 M58 7530 WO1-M58-7530, WO1M587530, WO1 M58 7530 |
| Rolled plate assembly, 1/2 blind nuts, 3/4NPT | W01-358-7286, W013587286, W01 358 7286
WO1-358-7286, WO13587286, WO1 358 7286 |
| Rubber bellows only | W01-358-7914, W013587914, W01 358 7914
WO1-358-7914, WO135879146, WO1 358 7914 |
Key Components and Functionality
1. Air Spring Basics:
Uses compressed air within a flexible bellows to provide adjustable support, damping, and load-bearing capabilities. Common in vehicles (trucks, buses, trains) and industrial machinery.
2. Flange Connection:
Design: Features a protruding rim (flange) at one or both ends, typically with bolt holes for secure mounting. The flange ensures alignment and distributes stress evenly.
Sealing: Often includes gaskets, O-rings, or sealed grooves to maintain airtightness, critical for pressure retention.
Materials: Flanges are usually made of durable metals (steel, aluminum) to withstand high pressure, vibration, and environmental stressors.
Other Triple Convoluted H Series AIRSUSTECH Air Springs
| Product Number | Nonimal Diameter (mm) | 0.7Mpa Max.Diameter | Load at Design Height | 0.7Mpa Natural Frequency |
Stroke Range | |||
| 0.2Mpa | 0.5MPa | 0.7Mpa | Min. Height | Max. Height | ||||
| 3H200206 | 150 | 220 | 229 | 634 | 888 | 1.68 | 116 | 236 |
| 3H250260 | 185 | 270 | 507 | 1344 | 1924 | 1.7 | 116 | 299 |
| 3H255230 | 200 | 280 | 566 | 1460 | 2070 | 1.3 | 116 | 264 |
| 3H255322 | 200 | 290 | 116 | 400 | ||||
| 3H310306 | 230 | 330 | 861 | 2239 | 3170 | 1.3 | 120 | 354 |
| 3H330306 | 250 | 355 | 1035 | 2730 | 3892 | 1.4 | 120 | 354 |
| 3H360306 | 280 | 380 | 1250 | 3220 | 4570 | 1.3 | 122 | 360 |
| 3H380316 | 300 | 405 | 1401 | 3672 | 5235 | 1.32 | 122 | 370 |
| 3H400312 | 320 | 430 | 1724 | 4436 | 6308 | 1.19 | 122 | 360 |
| 3H520312 | 400 | 550 | 3046 | 7932 | 11262 | 1.32 | 118 | 354 |
| 3H580306 | 500 | 600 | 3950 | 10181 | 14409 | 1.22 | 118 | 354 |
| 3H630376 | 530 | 660 | 4243 | 11045 | 15612 | 0.94 | 122 | 436 |
| 3H680376 | 580 | 710 | 5259 | 13620 | 19339 | 1.27 | 122 | 436 |
