Rubber Air Spring Parker 9109400 Single Convoluted Air Bellows with Aluminum Plate
Rubber Air Spring Parker 9109400 Single Convoluted Air Bellows with Aluminum Plate
Product Introduction
Air springs are extremely durable, precisely engineered, and cost-effective for a wide range of drive and vibration isolation applications. Thanks to their proven design, fabric-reinforced neoprene or natural rubber flexure construction, and corrosion-resistant end mounts, air springs offer the highest quality and performance. As vibration isolators, air springs effectively reduce the damaging effects of vibration. They can simultaneously isolate vibration and adjust the load height to achieve consistent vibration isolation under varying loads.
Product Dimensions
Dimensions - Plate Diameter: 110 mm
Dimensions - Center Distance: 93 mm
Dimensions - Design Height: 78 mm
Dimensions - Natural Diameter: 120 mm
Air Connection: G3/8
Structure: single convoluted
Material: rubber and aluminum
OEM Cross References
Parker Air Bag: 9109400
Firestone Air Bag: W01-R58-4050
Firestone Air Bag: W01R584050
Firestone Air Bag: W01 R58 4050
Dunlop Pneuride Air Bag: 4 1/2"x1
Dunlop Pneuride Air Bag: 4 1/2'x1
Dunlop Pneuride Air Bag: 4 1/2x1
Dunlop Springride Air Bag: SP2334
Dunlop Springride Air Bag: SP 2334
Dunlop Springride Air Bag: SP 23 34
Contitech Air Bag: FS 44-5 DI
Contitech Air Bag: FS 445 DI
Contitech Air Bag: FS 44 5 DI
Norgren Air Bag: PM/31041
Norgren Air Bag: PM31041
Norgren Air Bag: PM 31041
About Air Spring Production Knowledge
- Rubber lining is a retractable inner mold with different shapes formed by the polymer properties of vulcanized rubber and high-strength fiber cloth. It is a product made of vulcanized rubber and fibers. It is compressive, elastic and airtight. After being filled with compressed air, the air bag will expand to meet the design requirements of its cross-section. Under the premise of ensuring quality, if it is used improperly, the service life of the air spring will be greatly shortened.
- Due to its low quality, good comfort and fatigue resistance, the rubber air spring has the advantages of long service life, vibration reduction and noise reduction. Widely used in industrial machinery, instrumentation and other equipment.
- The production process and production process of the surface fabric of the air spring machine penetrate into the gap of the fabric, and the bonding of the process rubber and the fabric of the rubber rope formed by tight carding. Reduce shrinkage: The elastic deformation of the rubber should be reduced, so that the surface of the pressed rubber wire is smooth and the dimensional change is small. The air spring film required for the production of air springs usually uses a three-roller air spring machine. Through this process, it embodies the protection of the air spring in many ways, thus prolonging its service life.
FAQ
| Q: What is the model number of the Suspension Air Springs? A: The model number of the Suspension Air Springs is 1B4.5×1P. |
| Q: Where are the Suspension Air Springs manufactured? A: The Suspension Air Springs are manufactured in Guangzhou, China. |
| Q: How long does it take to get product after placing the order? A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping. |

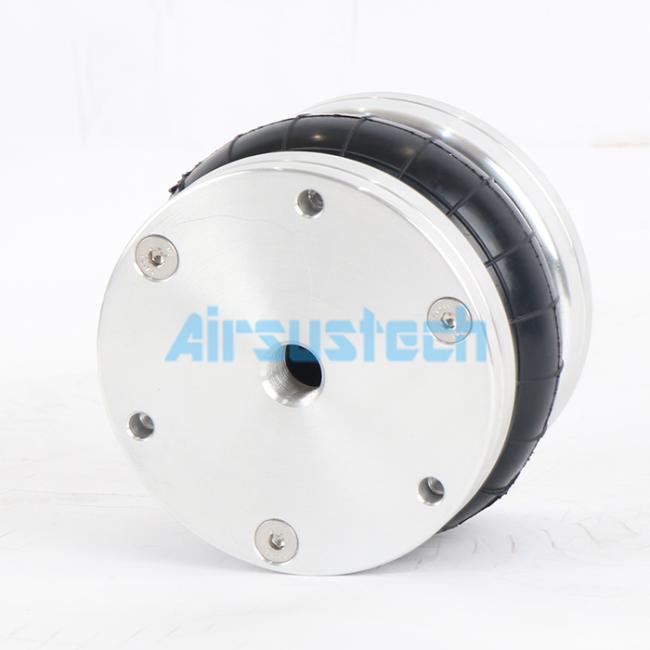

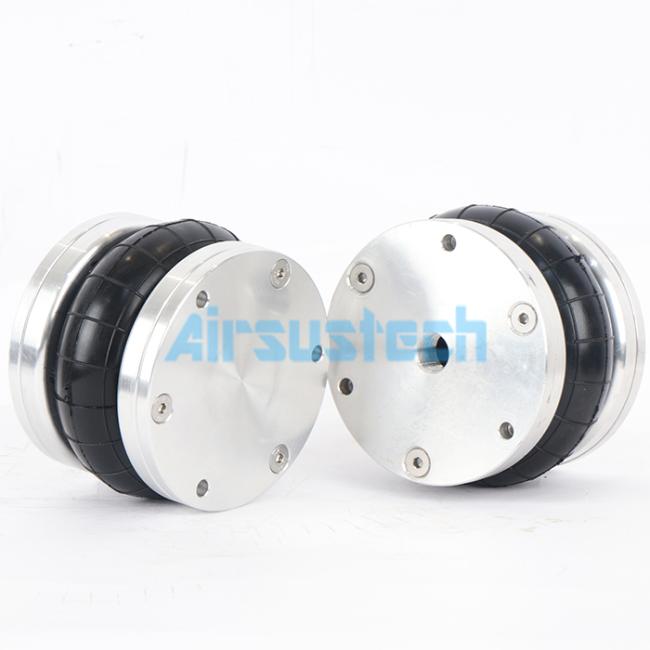

The Real Pictures
