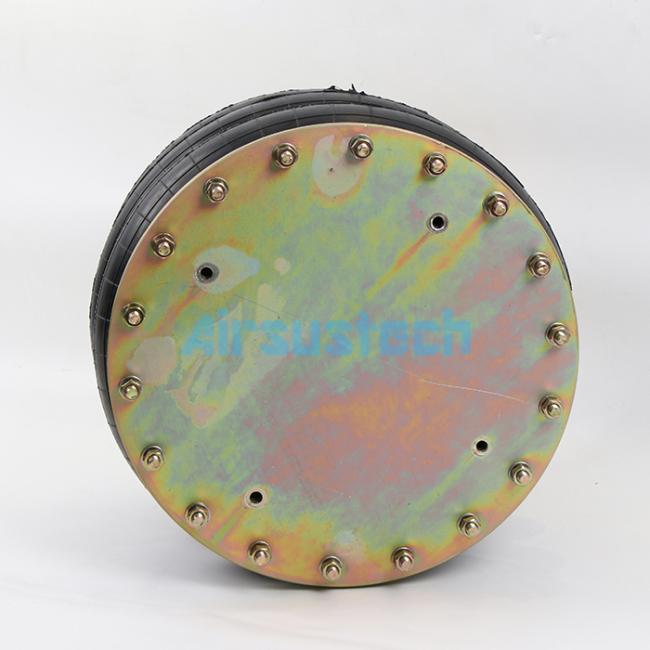

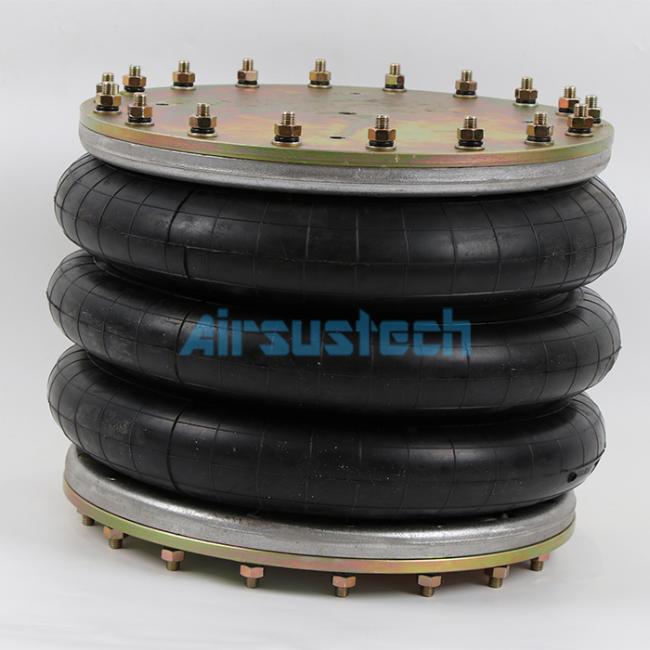

Buy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic Airbag
Buy W01-358-7286 Firestone Air Spring Assembly Total Stroke 343MM Pneumatic Airbag
Product Dimensions
Dimensions - Min. Height: 114 MM
Dimensions - Max. Height: 457 MM
Dimensions - Flange Diameter: 384 MM
Dimensions - Center Distance: 350 MM
Dimensions - Max. Outer Diameter: 462 MM
Screw Type: 18(M-10×1.5)
OEM Cross References
| Style 312 | Ribbed neck aluminum bead rings (equal spacing), 45mm bolts, nuts, wahsers |
W01-M58-7530, W01M587530, W01 M58 7530 WO1-M58-7530, WO1M587530, WO1 M58 7530 |
| Rolled plate assembly 1/2 blind nuts, 3/4NPT |
W01-358-7286, W013587286, W01 358 7286 WO1-358-7286, WO13587286, WO1 358 7286 |
|
| Rubber bellows only |
W01-358-7914, W013587914, W01 358 7914 WO1-358-7914, WO13587914, WO1 358 7914 |
|
| Style 314 | Aluminum ribbed neck bead rings (equal spacing), 45 mm bolts, nuts, washers |
W01-M58-6981, W01M586981, W01 M58 6981 WO1-M58-6981, WO1M586981, WO1 M58 6981 |
| Rolled plate assebly, 1/2 blind nuts, 3/4NPT |
W01-358-80090, W0135880090, W01 358 80090 WO1-358-80090, WO135880090, WO1 358 80090 |
|
| Rubber bellows only |
W01-358-7926, W013587926, W01 358 7926 WO1-358-7926, WO13587926, WO1 358 7926 |
Installation Steps
1.Prepare the Mounting Area:
Ensure the flange surface is clean, flat, and free of debris.
Verify bolt holes align with the air spring’s flange (use a template if available).
2.Connect Air Supply:
Use compatible fittings (e.g., G3/4 to NPT adapter if needed) and apply thread sealant (Teflon tape or liquid sealant) to prevent leaks.
Install a pressure regulator to maintain ≤0.7 MPa (to extend lifespan).
3.Inflation & Testing:
Slowly inflate the airbag to 0.3 MPa and check for leaks. Gradually increase to the operating pressure (max 0.8 MPa).
Test the stroke range (343 mm) to ensure smooth movement without binding.
