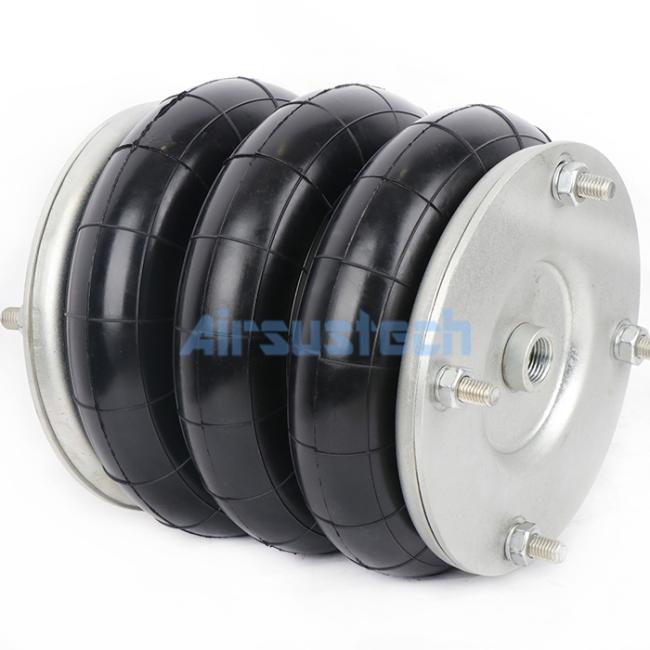

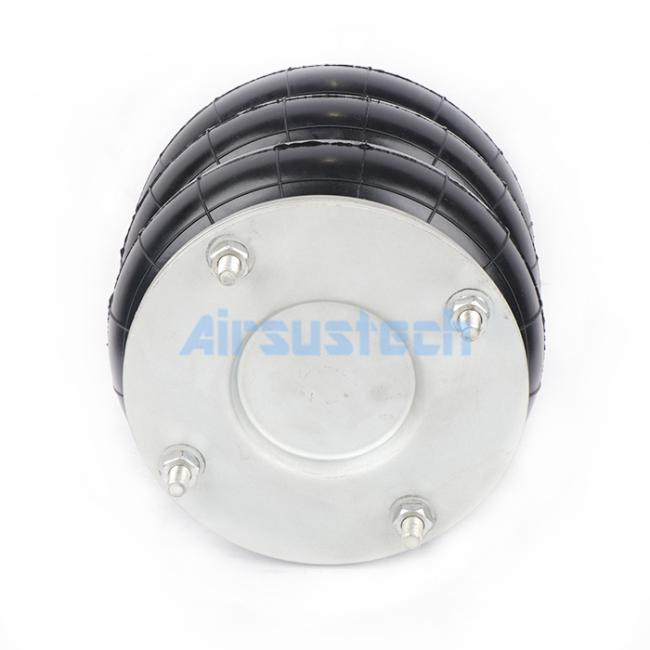

Parker 9109017 Air Bellow G1/2 Flange Connection Rubber Air Spring Assembly

Quick Details

Product Information

Dimensions - Natural Width: 205 mm

Dimensions - Plate Diameter: 183.5 mm

Dimensions - C to C Distance: 155.5 mm

Dimensions - Design Height: 196 mm

Air Connection: G1/2

Screw Nuts Type: 4×M10

Bellow Type: triple convolutions

Other OEM Numbers

AIRSUSTECH Rubber Air Springs

Air bellows are ideal for single-acting, short-stroke, high-thrust actuators. They are made of fabric-reinforced synthetic rubber with one, two, or three layers, depending on the stroke and model. They contain no reciprocating metal parts, resulting in virtually zero thrust compared to conventional cylinders. All models are single-acting. The return stroke is partially provided by the natural spring action of the bellows, but more often by the load itself. Their simple design enables extremely long service life, even under harsh conditions, and virtually maintenance-free operation. Air bellows are suitable for vibrating applications, such as high-frequency feeders.

• High thrust and smooth movement
• No maintenance or lubrication required, no oil
• Short stroke for high-thrust applications
• Easy installation, no precise alignment required
• Easy operation
• Can be used as a single-acting cylinder
• High insulation performance, can be used as an isolator
