Pneumatic Air Actuator M/31103 by Norgren Flange Connection Air Spring Assembly
Price:
Negotiable
MOQ:
1 pieces
Delivery Time:
3-8 Working Days
Brand:
AIRSUSTECH
Product Description
Pneumatic Air Actuator M/31103 by Norgren Flange Connection Air Spring Assembly
Product Description
- The AIRSUSTECH NO. 3B10×3T is a convoluted-type air spring featuring a flange ring design. This model has a static height of 322 mm when unloaded, with a cover plate diameter measuring 210 mm.
- The top plate of the air spring is equipped with a ZG1/2'' threaded air connection port for pneumatic supply. For mounting purposes, it includes four M10 screw nuts (4-M10) arranged around the flange.
- Under an operating air pressure of 0.7 MPa, the rubber bellows expand to a maximum outer diameter of 270 mm during operation.
Other OEM Numbers
| Norgren Air Bellow | M/31103 / M31103 / M 31103 |
| Firestone Air Bag |
W01-R58-4059 / W01R584059 / W01 R58 4059 WO1-R58-4059 / WO1R584059 / WO1 R58 4059 |
| Dunlop Pneuride Air Spring | 10''×3 / 10'×3 / 10×3 |
| Dunlop Springride Air Spring | SP1539 / SP 1539 / SP 15 39 |
| Contitech Continental Bellow |
FT 210-32 DS / FT 21032 DS / FT 210 32 DS FT210-32 DS / FT21032 DS / FT210 32 DS |
| Parker Air Suspension | 9109031 |
Applications
- Industrial Automation: Suitable for material handling, packaging, and robotics due to its robust design.
- Transportation: Used in railway systems (e.g., door control, suspension systems) owing to its durability and EN61373 certification for shock/vibration resistance.
Certifications & Quality
- Complies with international standards (ISO-certified).
- AIRSUSTECH's reputation for precision engineering ensures high reliability.
- Includes a 1-year warranty; faulty units are replaced if defects are confirmed by AIRSUSTECH's technical center.
We Have Other Types Air Suspensions/Air Bags/Air Springs
| Nominal (inch)×convolutions | Operating Angle | Out of Algignment (mm) | Minmum Height (mm) | Maximum Height (mm) | Models |
| 6''×1 | 10 | 10 | 50 | 105 | M/31061 |
| 6''×2 | 10 | 10 | 75 | 190 | M/31062 |
| 8''×1 | 10 | 10 | 50 | 130 | M/31081 |
| 8''×2 | 10 | 10 | 75 | 250 | M/31082 |
| 10''×1 | 10...20 | 10 | 50 | 150 | M/31101 |
| 10''×2 | 10...20 | 10 | 50 | 150 | M/31102 |
| 10''×3 | 15...30 | 30 | 100 | 430 | M/31103 |
| 12''×1 | 10...20 | 10 | 50 | 150 | M/31121 |
| 12''×2 | 15...25 | 20 | 75 | 300 | M/31122 |
| 14 1/2''×1 | 10...20 | 10 | 50 | 150 | M/31141 |
| 14 1/2''×2 | 15...25 | 20 | 75 | 340 | M/31142 |
| 14 1/2''×3 | 15...30 | 30 | 100 | 480 | M/31143 |
| 16''×2 | 15...25 | 20 | 75 | 390 | M/31162 |
| 16''×3 | 15...30 | 30 | 120 | 550 | M/31163 |
| 21''×2 | 15...25 | 20 | 84 | 335 | M/32212 |
| 26''×2 | 15...25 | 20 | 100 | 500 | M/32262 |

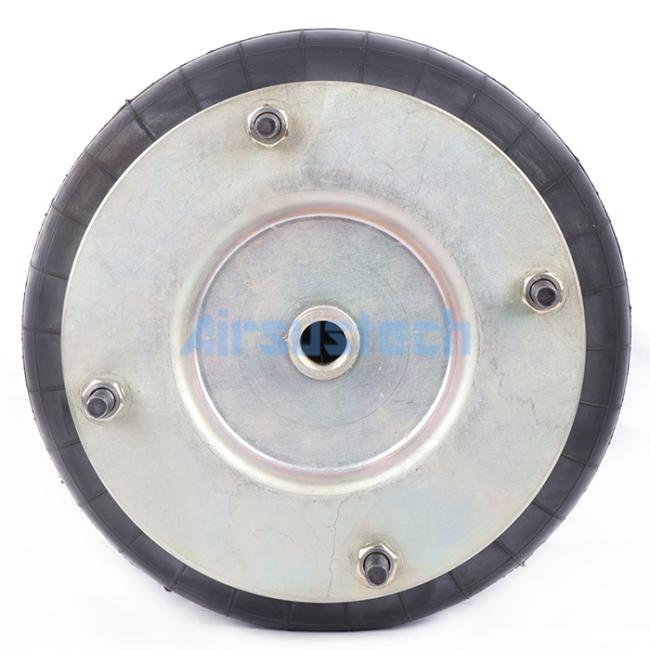

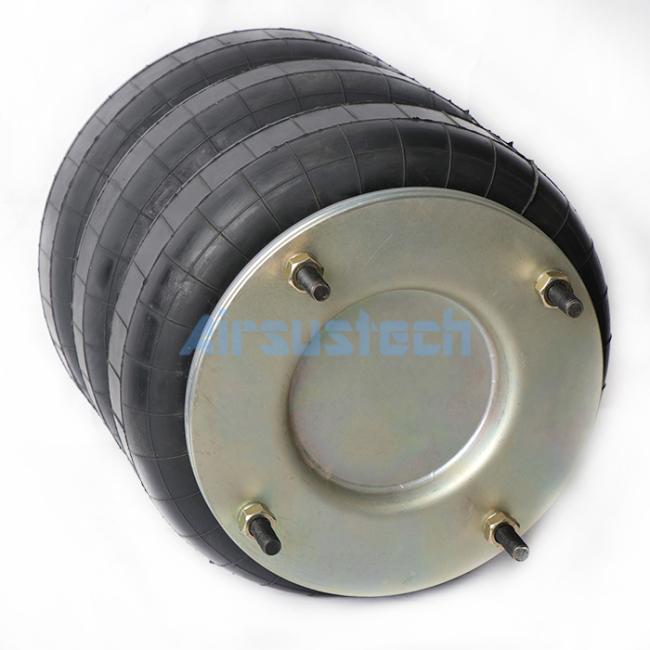

Product Images of 3B10×3T
Factory Workshop
